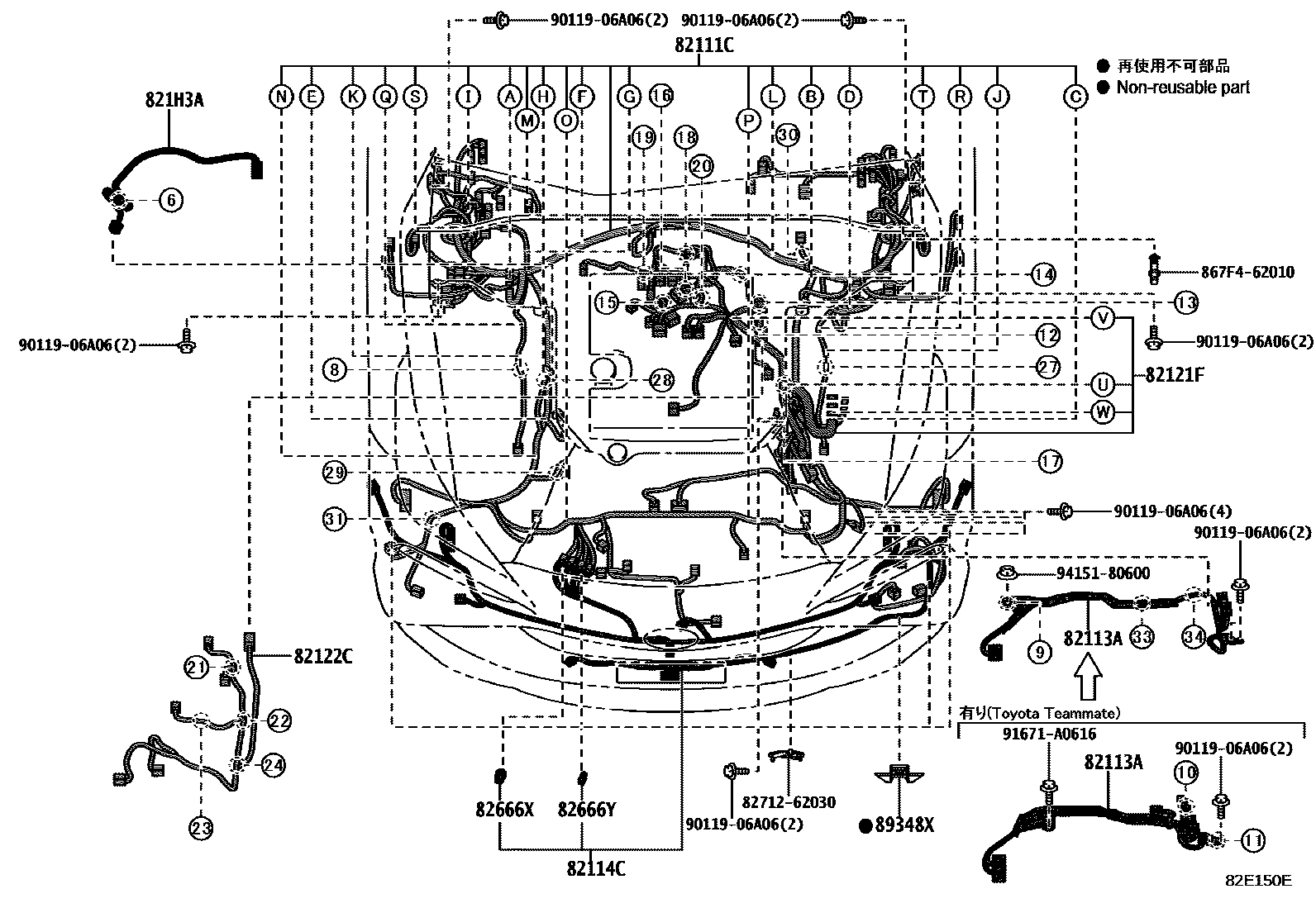

82111CWIRE, FRONT COMPARTMENT, MAIN

main82111-62060iJPD20..G¥224,000202011-202108

main82111-62061iJPD20..G¥224,000202108-202212

main82111-62062iJPD20..G¥224,000202212-202312

main82111-62063iJPD20..G¥224,000202312-202411

main82111-62064iJPD20..G¥214,000202412

main82111-62070iJPD20..Z¥236,000202011-202108

main82111-62071iJPD20..Z¥236,000202108-202212

main82111-62072iJPD20..Z¥224,000202212-202312

main82111-62072iJPD20..G¥224,000202212-202312

main82111-62073iJPD20..G¥214,000202312-202411

main82111-62073iJPD20..Z¥214,000202412

main82111-62073iJPD20..G¥214,000202312-202411

82113AWIRE, FRONT COMPARTMENT, NO.3

main82113-62030iJPD20¥7,700202312-202411

main82113-62050iJPD20¥8,600202011-202108

main82113-62051iJPD20¥8,600202108-202312

82114CWIRE, FRONT COMPARTMENT, NO.4

main82114-62050iJPD20..G¥7,200202011-202212

main82114-62051iJPD20..G¥7,200202212-202312

main82114-62052iJPD20..G¥7,200202312-202411

main82114-62062iJPD20..G¥7,700202412

main82114-62070iJPD20..G¥10,000202011-202212

main82114-62070iJPD20..Z¥10,000202011-202212

main82114-62071iJPD20..Z¥8,600202212-202312

main82114-62071iJPD20..Z¥8,600202212-202312

main82114-62120iJPD20..G¥9,000202312-202411

main82114-62120iJPD20..G¥9,000202312-202411

main82114-62120iJPD20..Z¥9,000202412

82121FWIRE, STACK

main82121-62040iJPD20¥42,300202011-202108

main82121-62041iJPD20¥42,300202108-202312

main82121-62070iJPD20¥38,400202312-202411

82122CWIRE, STACK, NO.2

main82122-62030iJPD20¥4,280202011-202312

main82122-62040iJPD20¥3,890202312-202411

821H3AWIRE, BATTERY PACK, NO.1

main821H3-62060iJPD20¥4,640202011-202411

82666XHOLDER, CONNECTOR NO.17

main82666-42020iJPD20¥160202011-202411

82666YHOLDER, CONNECTOR NO.18

main82666-50C30iJPD20¥140202011-202411

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050iJPD20..Z¥260202312-202411

main89348-50050iJPD20..G¥260202110-202312

main89348-50050iJPD20..G¥260202312-202411

main89348-50140iJPD20..G¥200202011-202110

main89348-50140iJPD20..G¥200202011-202110

8271262030CLAMP, WIRING HARNESS

main82712-62030¥240

867F462010JOINT, WASHER HOSE

main867F4-62010¥310

9011906A06

main90119-06A06¥60

91671A0616

main91671-A0616¥60

9415180600

main94151-80600¥60
