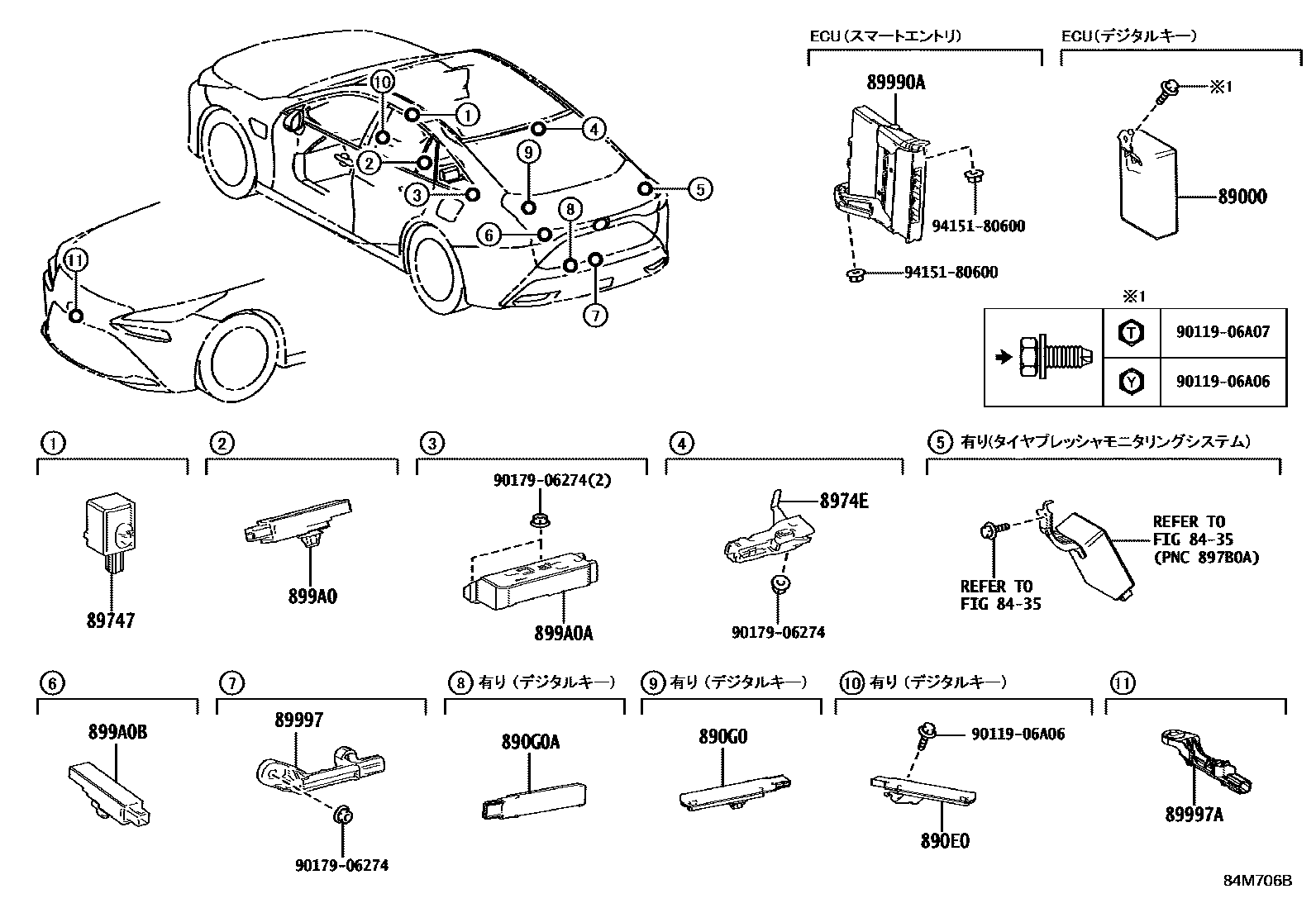

Toyota MIRAI — WIRELESS DOOR LOCK

8435

89000COMPUTER ASSY, DIGITAL KEY

main89000-62010¥21,600

890E0RECEIVER ASSY, BLE DIGITAL KEY

main890E0-62010¥7,100

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-76010¥7,100

890G0ARECEIVER ASSY, BLE DOOR DIGITAL KEY, NO.2

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iJPD20¥2,900202011-202411

8974EANTENNA, ROOF HEADER ELECTRICAL KEY

main8974E-62010iJPD20¥1,900202011-202411

89990ACOMPUTER ASSY, SMART KEY

main899H0-62050iJPD20¥40,700202011-202312

main899H0-62090iJPD20¥49,400202312-202411

89997ANTENNA, ELECTRICAL KEY

main89997-30100iJPD20¥1,800202011-202411

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-30100iJPD20..G¥1,800202312-202411

main89997-30100iJPD20..Z¥1,800202312-202411

main89997-30100iJPD20..Z¥1,800202412

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130iJPD20¥1,410202312-202411

main899A0-47010iJPD20¥1,410202011-202312

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-62010iJPD20¥1,410202312-202411

main899A0-62020iJPD20¥1,410202011-202312

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130iJPD20¥1,410202312-202411

main899A0-47010iJPD20¥1,410202011-202312

9011906A06

main90119-06A06¥60

9011906A07

main90119-06A07¥60

9017906274

main90179-06274¥70

9415180600

main94151-80600¥60

17 parts on this diagram · 1 diagram in section
