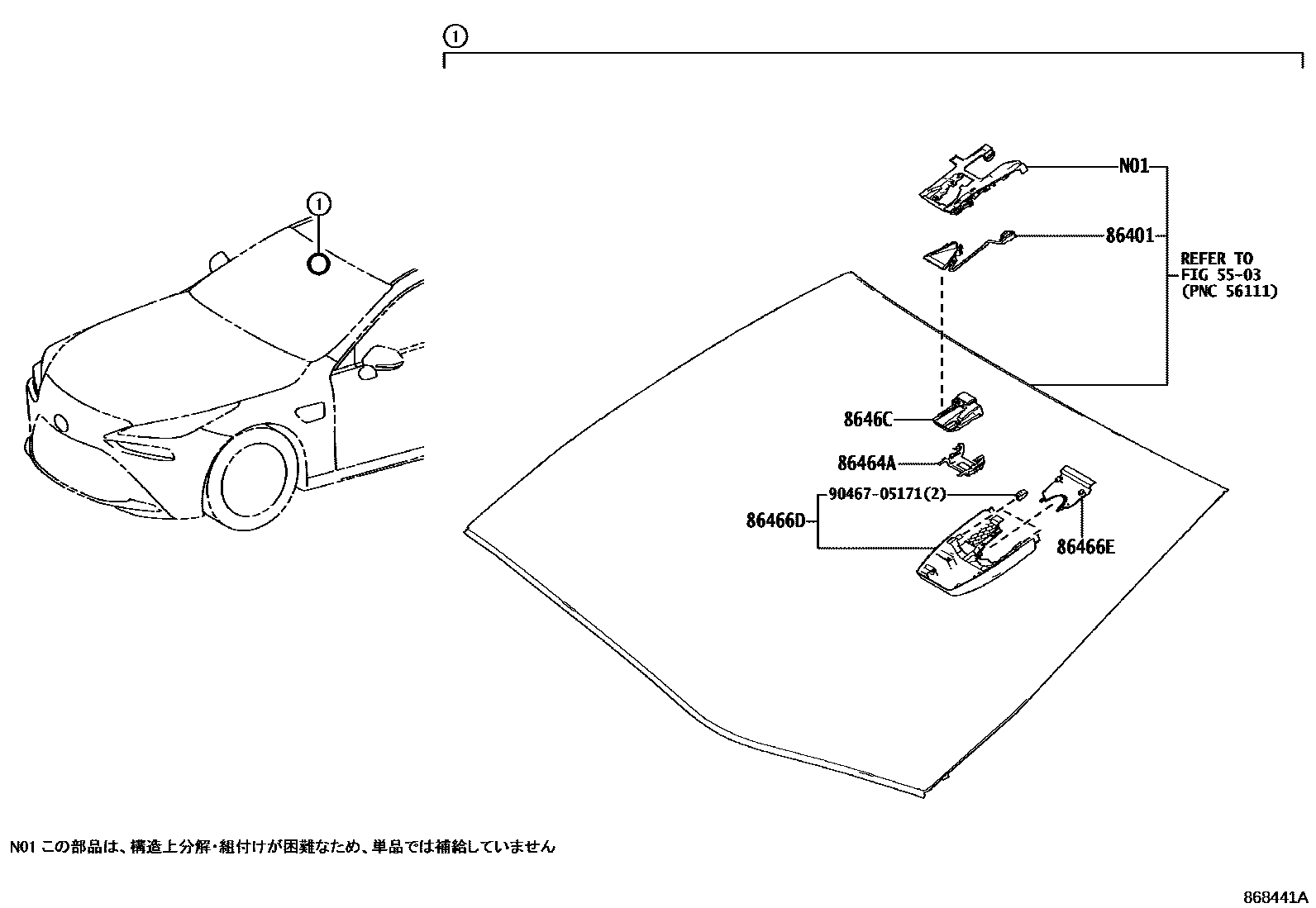

Toyota MIRAI — PRE-COLLISION SYSTEM

0001 1��(TOYOTA TEAMMATE) 0002 1��(TOYOTA TEAMMATE) 0003 1��(TOYOTA TEAMMATE) 0004 1

5503

86401HOOD SUB-ASSY, FORWARD RECOGNITION W/HEATER

main86401-62010iJPD20¥4,540202011-202312

86464ALATCH, FORWARD RECOGNITION

main86464-26010iJPD20¥500202011-202312

86466DCOVER, FORWARD RECOGNITION, NO.1

main86466-30020iJPD20¥2,960202312-202411

�\�h���S�p�b�P�[�W�|�g���^�@�`�[�����C�g

main86466-30020iJPD20¥2,960202412

main86466-62070iJPD20¥2,860202011-202312

86466ECOVER, FORWARD RECOGNITION, NO.2

main86466-62080iJPD20¥820202011-202312

main86467-30040iJPD20¥1,350202312-202411

�\�h���S�p�b�P�[�W�|�g���^�@�`�[�����C�g

main86467-30040iJPD20¥1,350202412

8646CCAMERA, FORWARD RECOGNITION

main8646C-62010iJPD20¥47,300202011-202312

main8646C-62050iJPD20¥43,000202312-202411

���U�P�S

main8646C-62060iJPD20¥43,000202412

���U�P�S

9046705171

main90467-05171¥60

7 parts on this diagram · 4 diagrams in section
