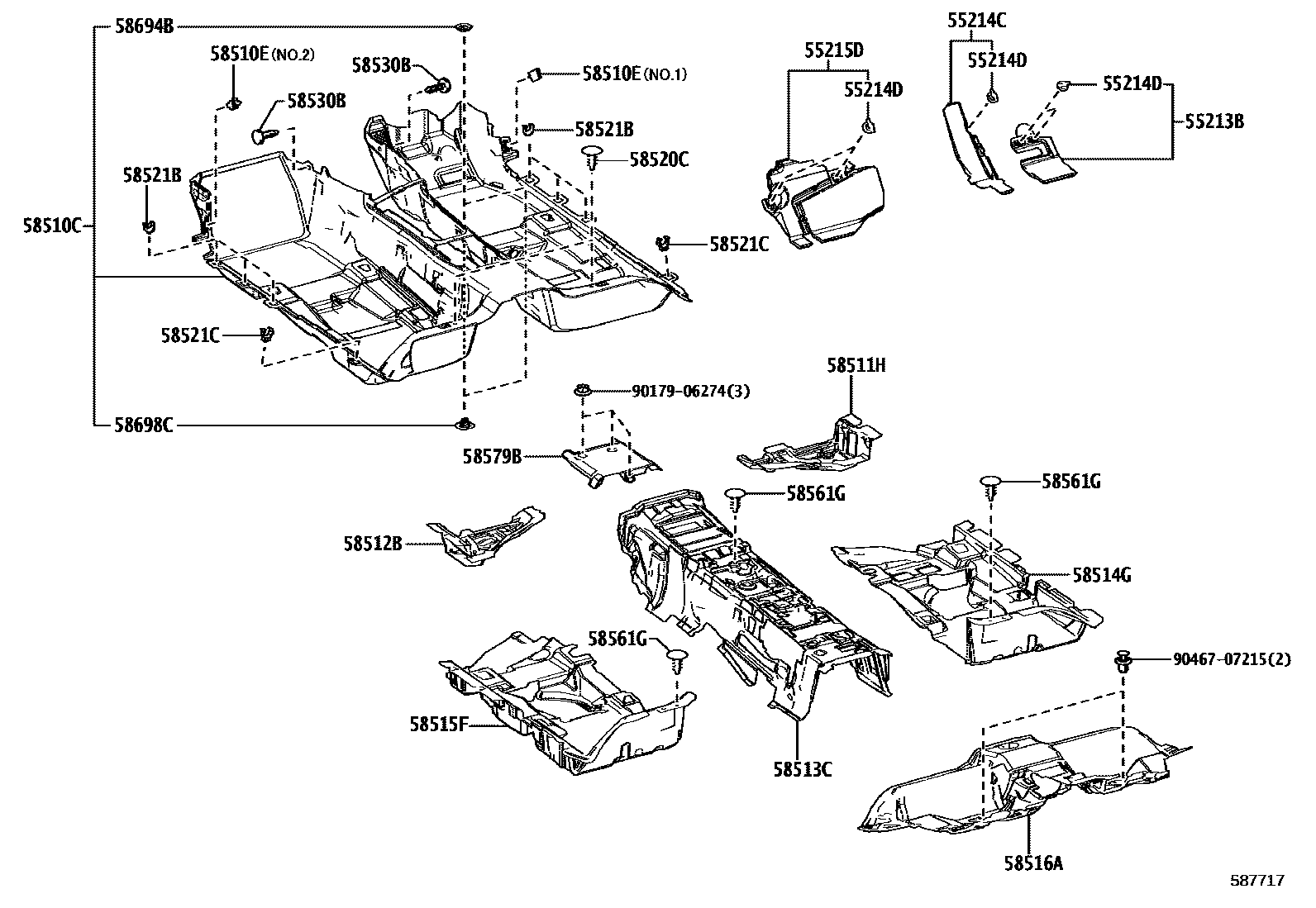

Toyota MIRAI — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55214DCLIP(FOR DASH PANEL INSULATOR PAD)
55215DPAD, DASH PANEL INSULATOR, NO.3
58510CCARPET ASSY, FRONT FLOOR, FRONT
BLACK,TRIM0#,2#
58510ERETAINER, FLOOR CARPET
58511HMAT, FLOOR, FRONT RH
58512BMAT, FLOOR, FRONT LH
58513CMAT, FLOOR, FRONT CENTER
58514GMAT, FLOOR, REAR RH
58515FMAT, FLOOR, REAR LH
58516AMAT, FLOOR, NO.6
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58521CHOOK, FLOOR CARPET NO.2
58530BCLIP(FOR FRONT FLOOR CARPET)
58561GCLIP(FOR FRONT FLOOR SILENCER)
58579BPAD, REAR FLOOR
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9017906274
9046707215
22 parts on this diagram · 1 diagram in section
