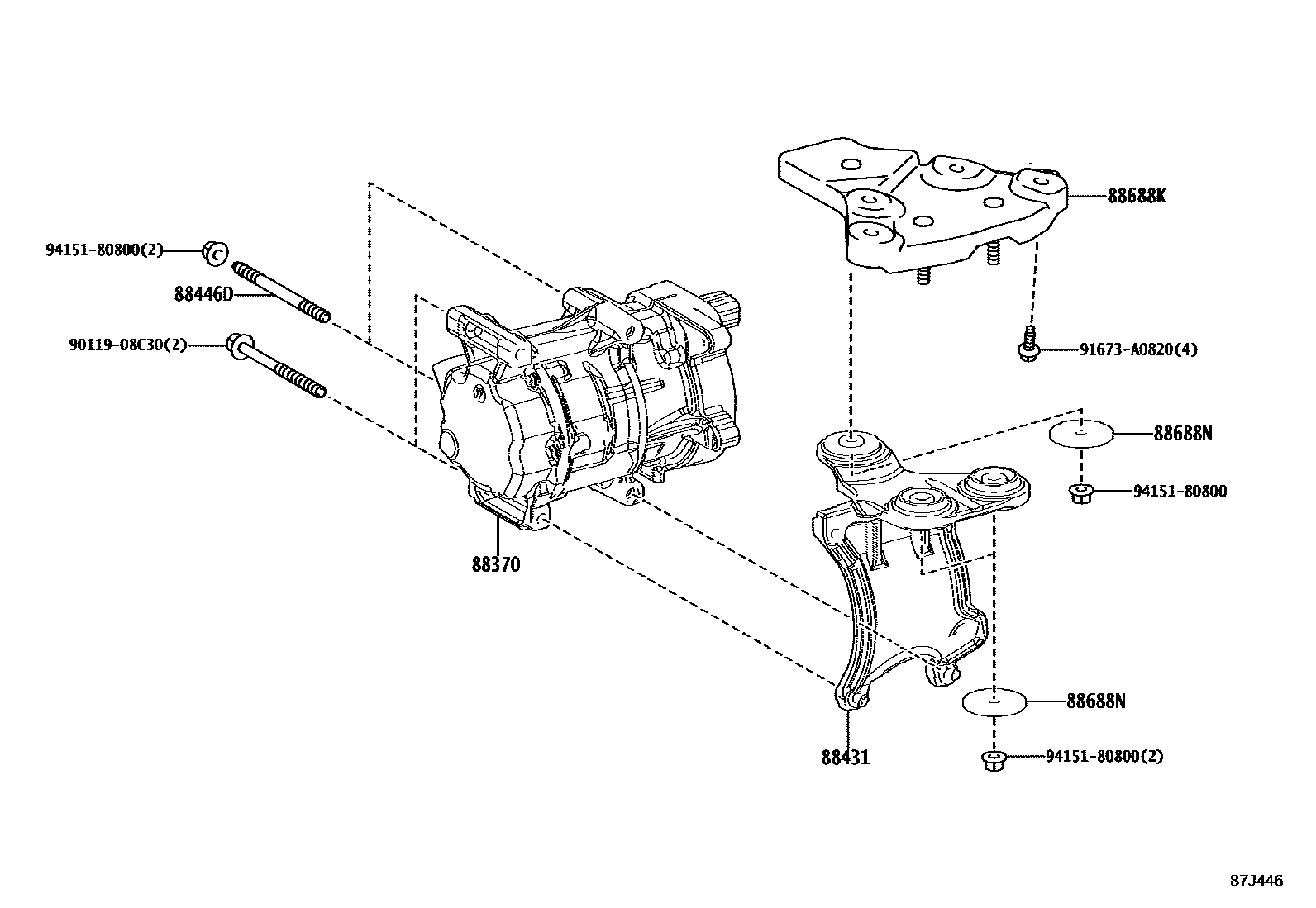

Toyota MIRAI — HEATING & AIR CONDITIONING - COMPRESSOR

88370COMPRESSOR ASSY, W/MOTOR

main88370-62020iJPD20202011-202107

sub88370-62021

main88370-62021iJPD20202312-202411

main88370-62021iJPD20202412

main88370-62021iJPD20202108-202312

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-62030iJPD20202312-202411

main88431-62030iJPD20202412

main88431-62030iJPD20202011-202312

88446DBOLT, COOLER

main88899-44010iJPD20202412

main88899-44010iJPD20202312-202411

main88899-44010iJPD20202011-202312

88688KBRACKET, COOLER COMPRESSOR

main88688-62130iJPD20202312-202411

main88688-62130iJPD20202412

main88688-62130iJPD20202011-202312

88688NBRACKET, COOLER

main88688-62060iJPD20202312-202411

main88688-62060iJPD20202412

main88688-62060iJPD20202011-202312

9011908C30

main90119-08C30¥210

91673A0820

main91673-A0820¥80

9415180800

main94151-80800¥80

8 parts on this diagram · 1 diagram in section
