Toyota MIRAI — FRONT DOOR LOCK & HANDLE

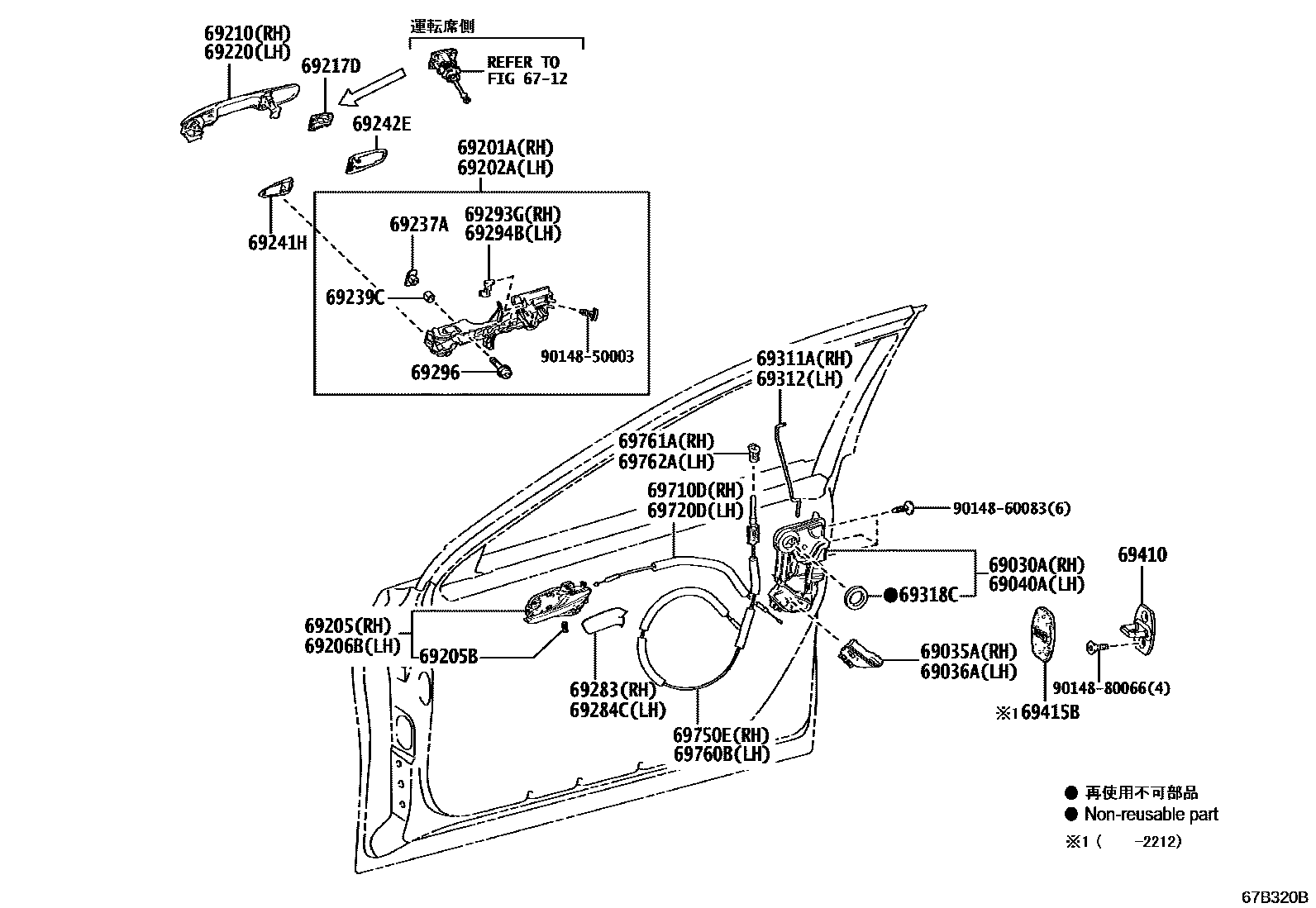

Parts diagram
6712
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
main69030-30A70i¥11,300202011-202411
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
main69035-30010i¥220202011-202411
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
main69036-30010i¥220202011-202411
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
main69040-48130i¥10,500202011-202411
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-47070i¥4,210202011-202411
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
main69202-47040i¥4,210202011-202411
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
main69205-30220i¥2,470202011-202411
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
main69275-30070i¥80202011-202411
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
main69206-30220i¥2,470202011-202411
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
main69210-47041-A5i202011-202312
PRECIOUS WHITE PEARL,090
main69210-47041-B9i202011-202312
PRECIOUS SILVER,1J6
main69210-47041-C3i202011-202312
BLACK,202
main69210-47041-C6i202011-202312
PRECIOUS BLACK,219
main69210-47041-D4i202011-202312
EMOTIONAL RED 2,3U5
main69210-47041-J7i202011-202312
DK.BLUE MC.,8S6
main69210-47041-J9i202011-202312
FORCE BLUE MULTIPLE LAYER,8Y7
main69210-47041-P2i202011-202312
PRECIOUS METAL,1L5
main69210-K0010-A5i202312-202411
PRECIOUS WHITE PEARL,090
main69210-K0010-B9i202312-202411
PRECIOUS SILVER,1J6
main69210-K0010-C0i202312-202411
BLACK,202
main69210-K0010-C2i202412
PRECIOUS BLACK,090 ,1J6 ,1L5 ,219 ,3U5 ,8Y7
main69210-K0010-C2i202312-202411
PRECIOUS BLACK,219
main69210-K0010-D5i202312-202411
EMOTIONAL RED 2,3U5
main69210-K0010-J4i202312-202411
DK.BLUE MC.,8S6
main69210-K0010-J8i202312-202411
FORCE BLUE MULTIPLE LAYER,8Y7
main69210-K0010-P0i202312-202411
PRECIOUS METAL,1L5
69217DCOVER, FRONT DOOR OUTSIDE HANDLE
main69217-47020i¥450202011-202411
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
main69210-47051-A5i202011-202312
PRECIOUS WHITE PEARL,090
main69210-47051-B9i202011-202312
PRECIOUS SILVER,1J6
main69210-47051-C3i202011-202312
BLACK,202
main69210-47051-C6i202011-202312
PRECIOUS BLACK,219
main69210-47051-D4i202011-202312
EMOTIONAL RED 2,3U5
main69210-47051-J7i202011-202312
DK.BLUE MC.,8S6
main69210-47051-J9i202011-202312
FORCE BLUE MULTIPLE LAYER,8Y7
main69210-47051-P2i202011-202312
PRECIOUS METAL,1L5
main69210-K0020-A5i202312-202411
PRECIOUS WHITE PEARL,090
main69210-K0020-B9i202312-202411
PRECIOUS SILVER,1J6
main69210-K0020-C0i202312-202411
BLACK,202
main69210-K0020-C2i202412
PRECIOUS BLACK,090 ,1J6 ,1L5 ,219 ,3U5 ,8Y7
main69210-K0020-C2i202312-202411
PRECIOUS BLACK,219
main69210-K0020-D5i202312-202411
EMOTIONAL RED 2,3U5
main69210-K0020-J4i202312-202411
DK.BLUE MC.,8S6
main69210-K0020-J8i202312-202411
FORCE BLUE MULTIPLE LAYER,8Y7
main69210-K0020-P0i202312-202411
PRECIOUS METAL,1L5
69237ANUT, FRONT DOOR HANDLE
main69237-62010i¥160202011-202411
69239CBUSH, FRONT DOOR HANDLE
main69239-47010i¥90202011-202411
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
main69241-47020i¥400202011-202411
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
main69242-47030i¥400202011-202411
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
main69283-30070-C0i202011-202104
BLACK,TRIM0#,2#
sub69283-30070¥430
main69283-30070-C1i202104-202411
BLACK,TRIM0#,2#
sub69283-30070¥430
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
main69284-30070-C0i202011-202104
BLACK,TRIM0#,2#
sub69284-30070¥430
main69284-30070-C1i202104-202411
BLACK,TRIM0#,2#
sub69284-30070¥430
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
main69293-12030i¥160202011-202411
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
main69293-12040i¥160202011-202411
69296SCREW, DOOR INSIDE HANDLE
main69296-30010i¥90202011-202312
main90148-50006i¥60202312-202411
69311AROD, FRONT DOOR LOCK OPEN, RH
main69311-62020i¥410202011-202411
69312ROD, FRONT DOOR LOCK OPEN, LH
main69312-62020i¥410202011-202411
69318CSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i¥120202011-202411
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
main69410-20110i¥1,050202212-202411
main69410-33030i¥1,240202011-202211
69415BCOVER, DOOR LOCK STRIKER, FRONT
main69415-60020i¥270202011-202212
69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69710-62020i¥1,050202011-202411
69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
main69710-62020i¥1,050202011-202411
69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69750-62020i¥1,900202011-202411
69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
main69750-62020i¥1,900202011-202411
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
main69761-62010-C0i202011-202411
BLACK,TRIM0#,2#
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
main69761-62010-C0i202011-202411
BLACK,TRIM0#,2#
9014850003
main90148-50003¥60
9014860083
main90148-60083¥60
9014880066
main90148-80066¥60
