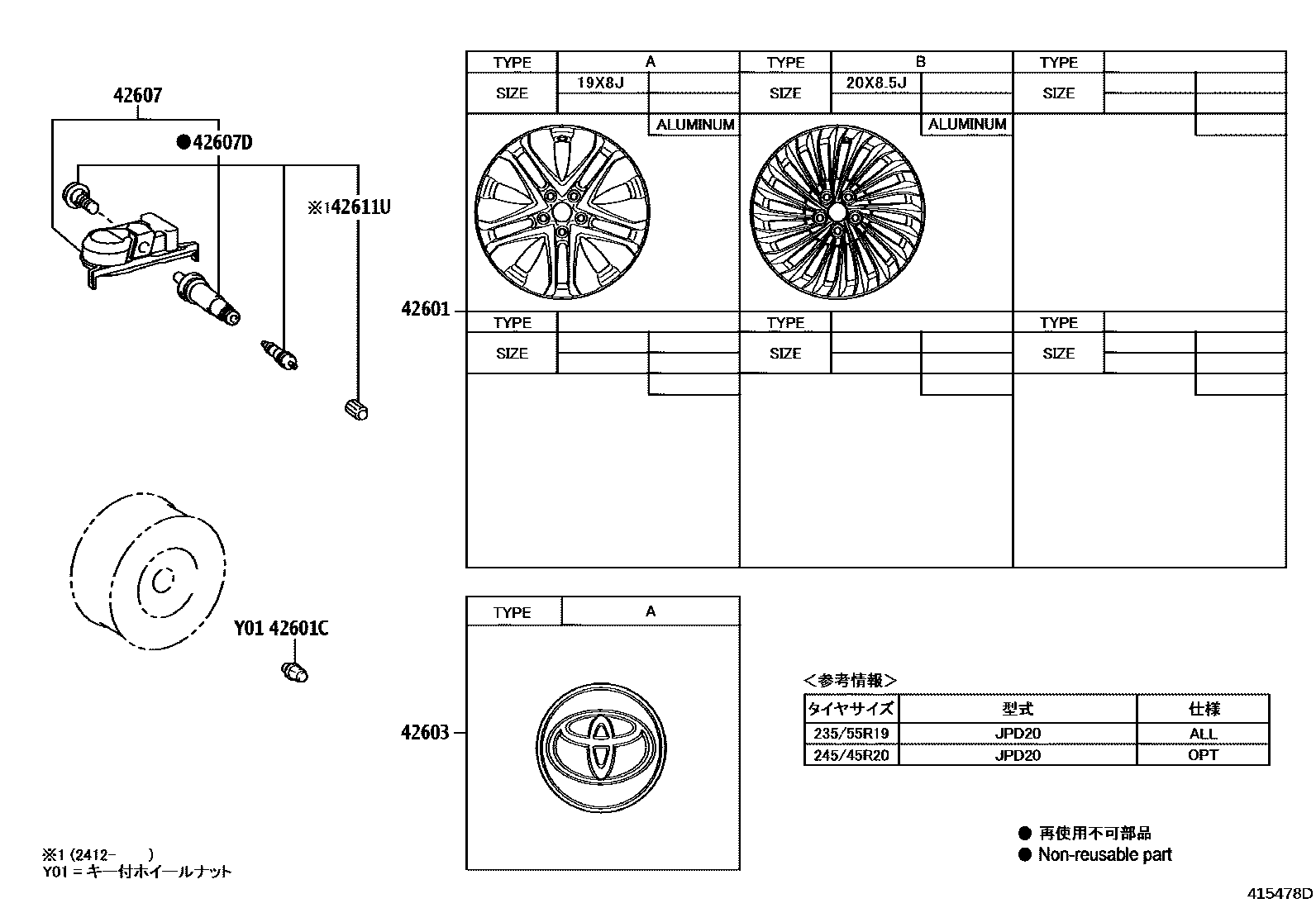

Toyota MIRAI — DISC WHEEL & WHEEL CAP

0001 1��������� & ������������� 0002 1���������

42601WHEEL, DISC

main42611-62050iJPD20..G¥48,000202011-202411

main42611-62090iJPD20¥51,900202412

main4261A-62010iJPD20..G¥50,100202011-202411

main4261A-62010iJPD20..G¥50,100202011-202411

42601CNUT, HUB (FOR AXLE)

main90942-01121iJPD20¥490202011-202411

main90942-01122iJPD20¥530202412

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iJPD20¥1,000202011-202411

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12010iJPD20¥6,500202011-202411

main42607-60020iJPD20¥6,500202412

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05043iJPD20¥530202011-202411

main90942-05047iJPD20¥570202412

42611UCAP, TIRE VALVE

main90942-05039iJPD20¥90202412

6 parts on this diagram · 2 diagrams in section
