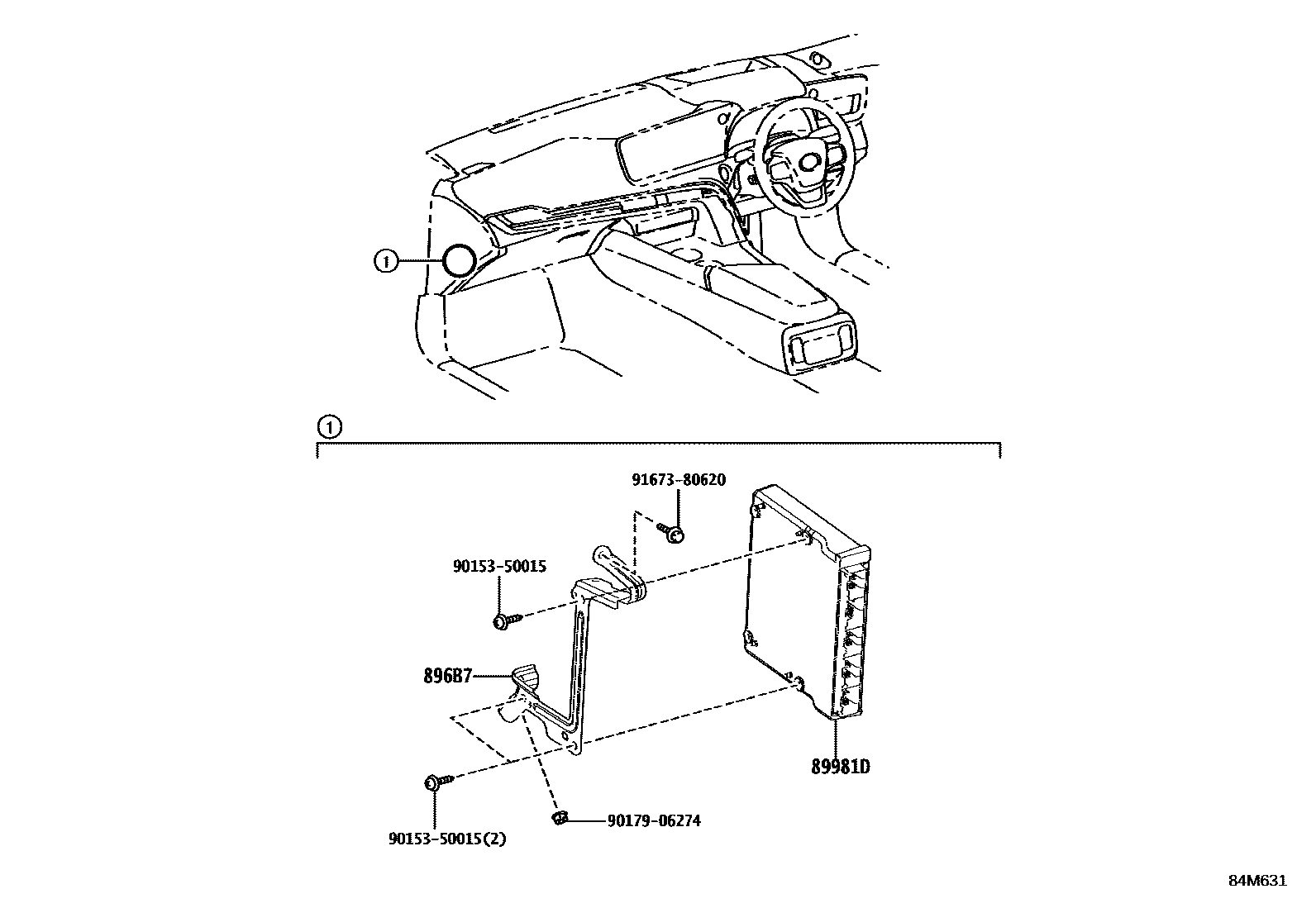

Toyota MIRAI — CONTROL COMPUTER(BEV OR FCEV)

896B7BRACKET, EV CONTROL COMPUTER, NO.1

main896B7-62010iJPD20¥910202011-202312

main896B7-62010iJPD20¥910202312-202411

main896B7-62010iJPD20¥910202412

89981DCOMPUTER, EV CONTROL

main89981-62070iJPD20¥59,400202011-202212

���U�P�S

main89981-62200iJPD20¥59,400202212-202312

���U�P�S

main89981-62340iJPD20202312-202411

���U�P�S

main89981-62340iJPD20202412

���U�P�S

9015350015

main90153-50015¥60

9017906274

main90179-06274¥70

9167380620

main91673-80620¥60

5 parts on this diagram · 1 diagram in section
