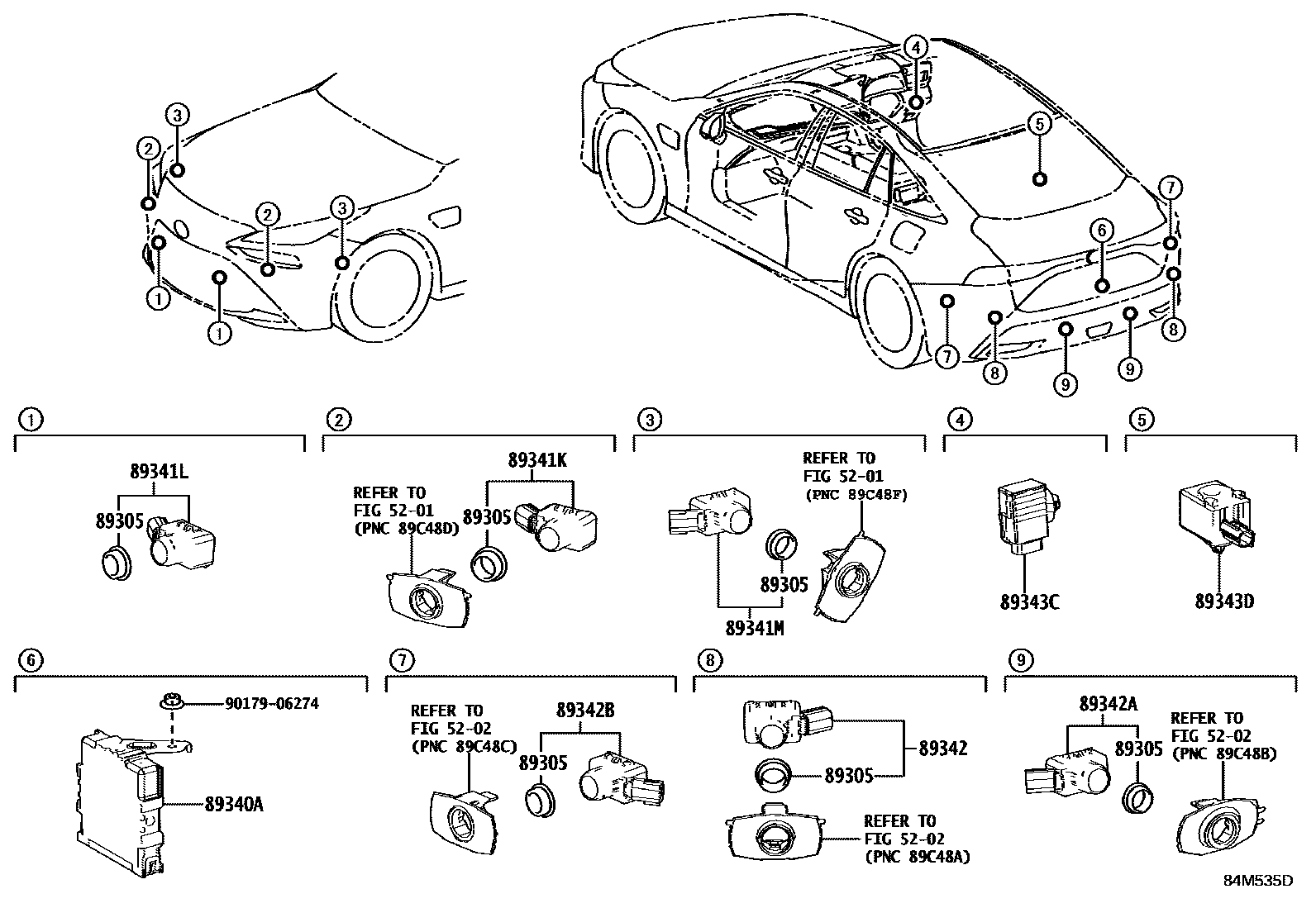

Toyota MIRAI — CLEARANCE & BACK SONAR
5201
5202
89305CUSHION SET, ULTRASONIC SENSOR
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
89341LSENSOR, ULTRASONIC, FRONT CENTER
DUMMY-MAT BLACK
89341MSENSOR, ULTRASONIC, FRONT SIDE
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
89342SENSOR, ULTRASONIC, REAR CORNER
89342ASENSOR, ULTRASONIC, REAR CENTER
DUMMY-MAT BLACK
89342BSENSOR, ULTRASONIC, REAR SIDE
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
PRECIOUS METAL,1L5
89343CBUZZER, CLEARANCE WARNING, NO.1
89343DBUZZER, CLEARANCE WARNING, NO.2
9017906274
13 parts on this diagram · 1 diagram in section
