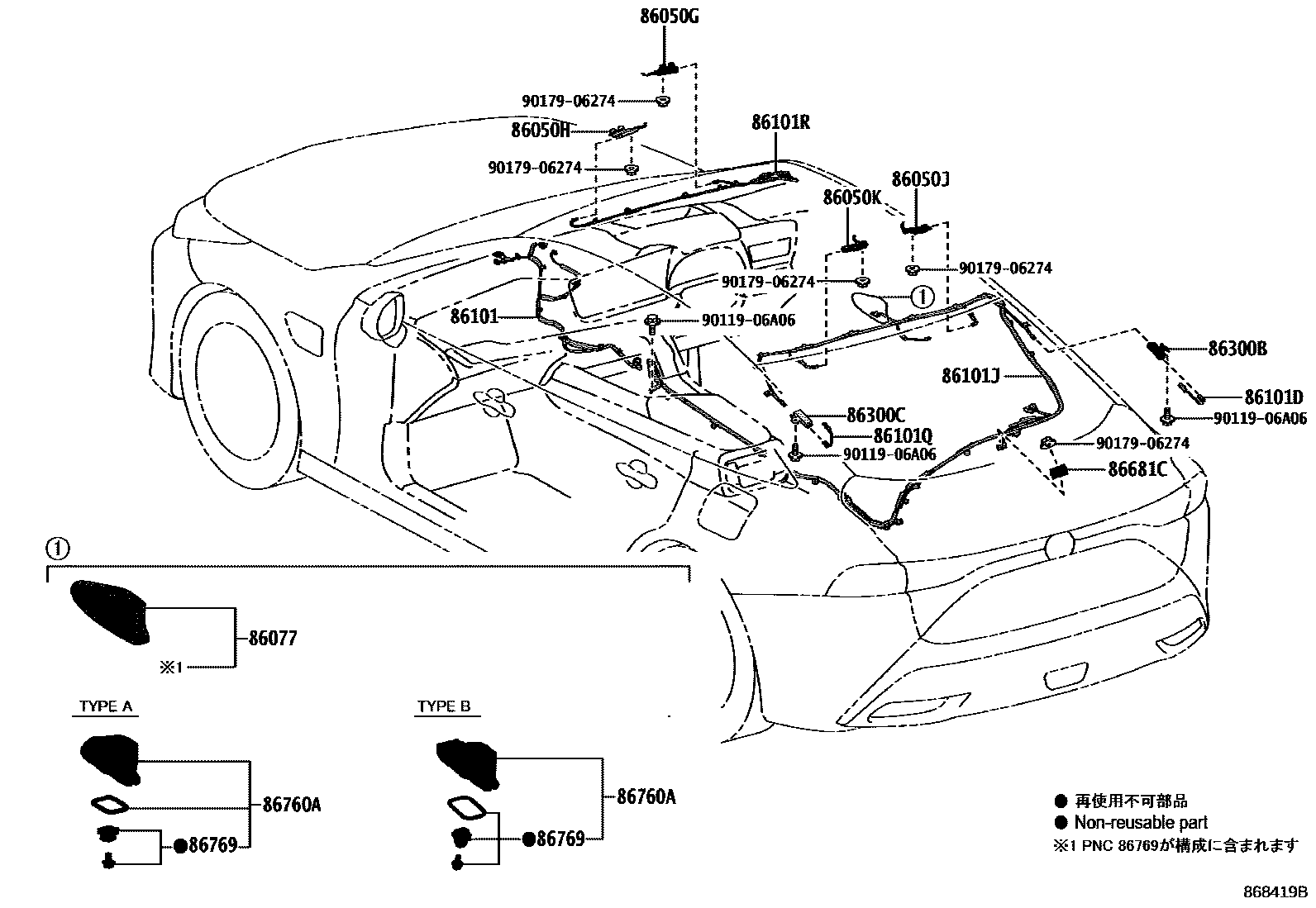

Toyota MIRAI — ANTENNA
86050GANTENNA ASSY, TELEVISION, NO.1 RH
86050HANTENNA ASSY, TELEVISION, NO.1 LH
86050JANTENNA ASSY, TELEVISION, NO.2 RH
86050KANTENNA ASSY, TELEVISION, NO.2 LH
86077COVER KIT, ANTENNA
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS METAL,1L5
BLACK,202
BLACK,090 ,1J6 ,1L5 ,202 ,3U5 ,8S6 ,8Y7
BLACK,090 ,1J6 ,1L5 ,202 ,3U5 ,8Y7
BLACK,090 ,1J6 ,1L5 ,202 ,219 ,3U5 ,8S6 ,8Y7
PRECIOUS BLACK,219
PRECIOUS BLACK,090 ,1J6 ,1L5 ,219 ,3U5 ,8Y7
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
86101CORD SUB-ASSY, ANTENNA
86101DCORD SUB-ASSY, ANTENNA, NO.3
86101JCORD SUB-ASSY, ANTENNA, NO.2
86101QCORD SUB-ASSY, ANTENNA, NO.4
86101RCORD SUB-ASSY, ANTENNA, NO.5
86300BANTENNA ASSY, AMPLIFIER, NO.1
86300CANTENNA ASSY, AMPLIFIER, NO.2
86681CDIVIDER, ANTENNA
86760AANTENNA ASSY, TELEPHONE
86769HOUSING, ROOF ANTENNA
9011906A06
9017906274
17 parts on this diagram · 1 diagram in section
