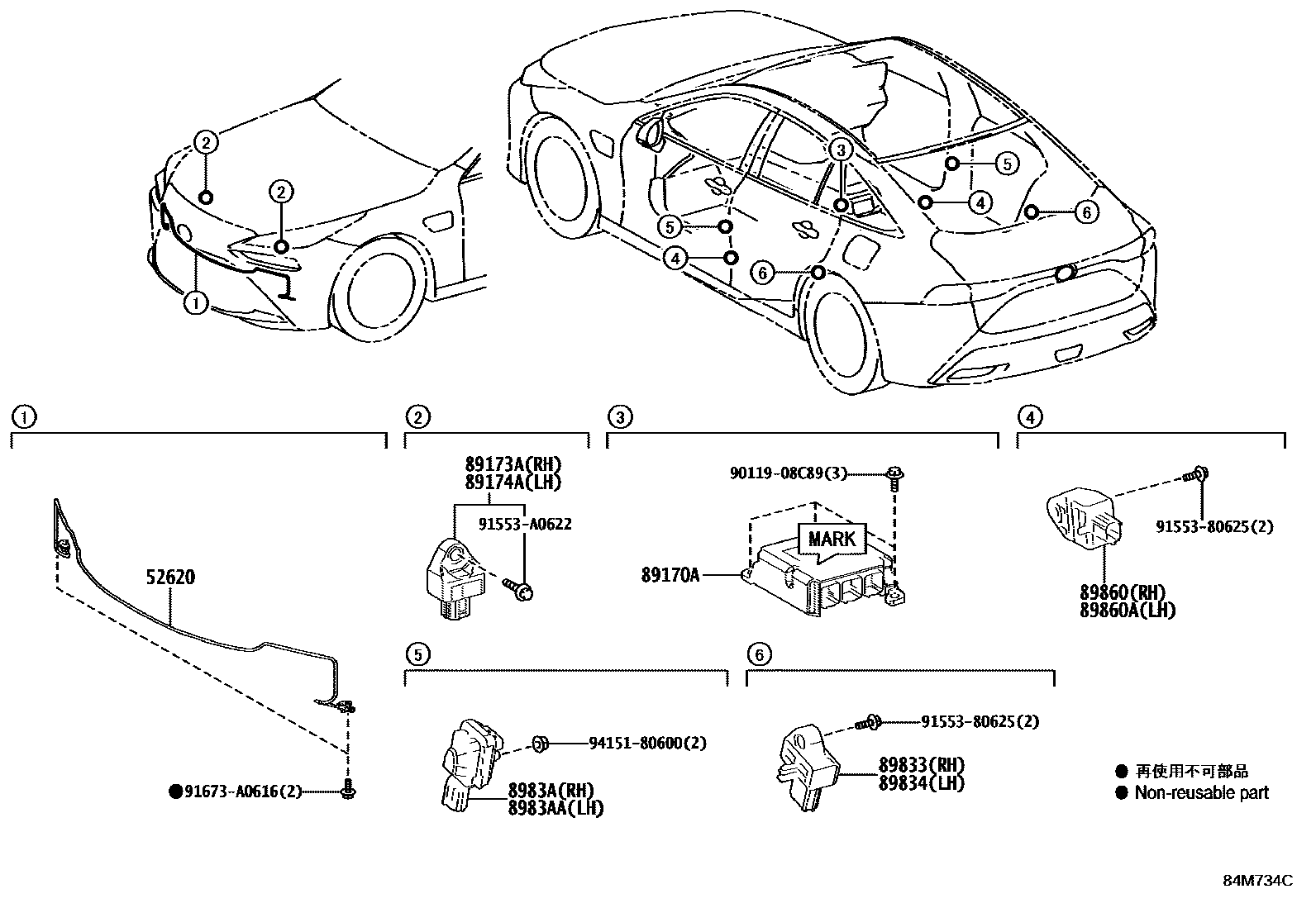

Toyota MIRAI — AIR BAG

52620CHAMBER ASSY, PEDESTRIAN DETECTION

main52620-62010iJPD20202011-202411

89170ACOMPUTER ASSY, AIRBAG

main89170-62080iJPD20¥37,300202011-202312

main89170-62170iJPD20¥25,400202312-202411

89173ASENSOR, AIRBAG, FRONT RH

main89173-59405iJPD20¥4,110202011-202411

89174ASENSOR, AIRBAG, FRONT LH

main89173-59405iJPD20¥4,110202011-202411

89833SENSOR, AIRBAG, REAR RH

main89831-52130iJPD20¥4,110202011-202411

89834SENSOR, AIRBAG, REAR LH

main89831-52130iJPD20¥4,110202011-202411

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-52010iJPD20¥4,520202011-202101

sub8983A-52011¥4,110

main8983A-52011iJPD20¥4,110202102-202411

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-52010iJPD20¥4,520202011-202101

sub8983A-52011¥4,110

main8983A-52011iJPD20¥4,110202102-202411

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-62020iJPD20¥4,110202011-202411

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-62020iJPD20¥4,110202011-202411

9011908C89

main90119-08C89¥80

9155380625

main91553-80625¥60

91553A0622

main91553-A0622¥60

91673A0616

main91673-A0616¥60

9415180600

main94151-80600¥60

15 parts on this diagram · 1 diagram in section
