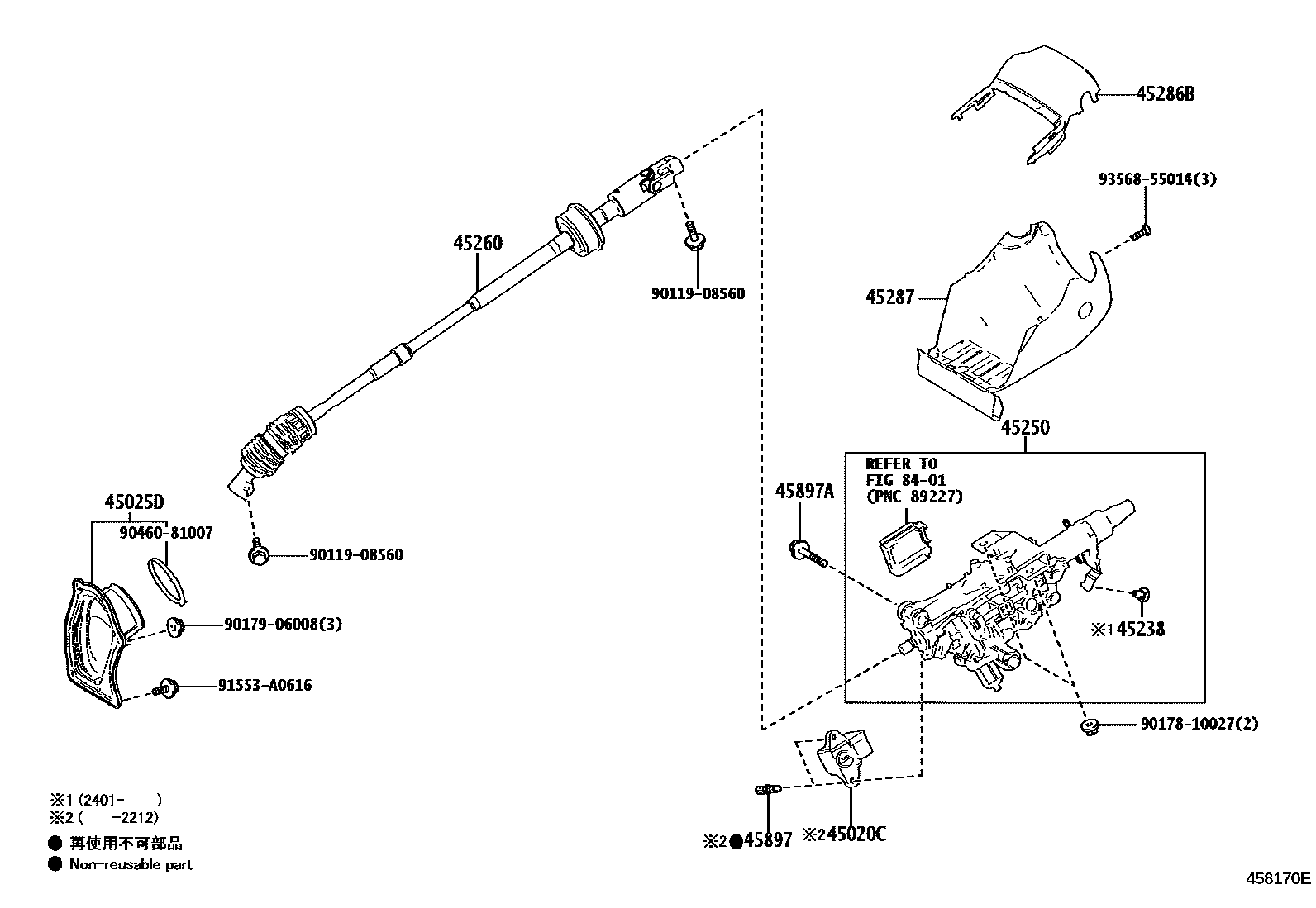

Toyota MIRAI — STEERING COLUMN & SHAFT

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-33260iJPD20¥14,900202108-202212

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-50150iJPD20¥2,750202108-202411

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-11010iJPD20¥70202401-202411

45250COLUMN ASSY, STEERING

main45250-48420iJPD20¥101,000202108-202304

main45250-48440iJPD20202401-202411

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-50110iJPD20202108-202411

45286BCOVER, STEERING COLUMN, UPR

main45286-11010-C1iJPD20202108-202304

BLACK,TRIM2#

main45286-48100-C0iJPD20202401-202411

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45024-11010-C1iJPD20202108-202304

BLACK,TRIM2#

main45024-48140-C0iJPD20202401-202411

BLACK,TRIM2#

45897BOLT, STEERING LOCK SET

main45897-12020iJPD20¥210202108-202212

45897ABOLT, TILT STEERING PAWL SET

main90119-10980iJPD20¥190202108-202411

8401

9011908560

main90119-08560¥110

9017810027

main90178-10027¥100

9017906008

main90179-06008¥60

9046081007

main90460-81007¥220

91553A0616

main91553-A0616¥60

9356855014

main93568-55014¥70

16 parts on this diagram · 1 diagram in section
