Toyota MIRAI — STANDARD TOOL

09105BOX SET, JACK

main09105-62010¥7,200

09110JACK ASSY

main09111-50140¥6,200

main09111-50141¥6,200

09113HANDLE, JACK

main09113-30060¥980

09135DRIVER, SCREW

main99915-10700iJPD20¥460202411

main99915-10700iJPD20¥460202108-202304

main99915-10700iJPD20¥460202401-202411

09150WRENCH, HUB NUT BOX

main09150-50040¥1,080

42606BREPAIR KIT, TUBELESS TIRE

main42606-42110iJPD20¥3,600202401-202411

main42606-42110iJPD20¥3,600202411

main42606-42110iJPD20¥3,600202301-202304

main42606-76020iJPD20202108-202301

44890DCOMPRESSOR ASSY, AIR

main44890-42070iJPD20¥7,500202301-202304

main44890-42070iJPD20¥7,500202401-202411

main44890-42070iJPD20¥7,500202411

main44890-76020iJPD20202108-202301

51960HOOK ASSY, FRONT

main51961-42060iJPD20¥1,860202401-202411

main51961-42060iJPD20¥1,860202411

main51961-42060iJPD20¥1,860202108-202304

51960AHOOK ASSY, REAR

main51961-42060iJPD20¥1,860202401-202411

main51961-42060iJPD20¥1,860202411

main51961-42060iJPD20¥1,860202108-202304

58792HSUPPORT, JACK CARRIER

81604REFLECTOR SET, TRIANGLE

main81604-78010iJPD20¥3,540202401-202411

main81604-78010iJPD20¥3,540202411

main81604-78010iJPD20¥3,540202108-202304

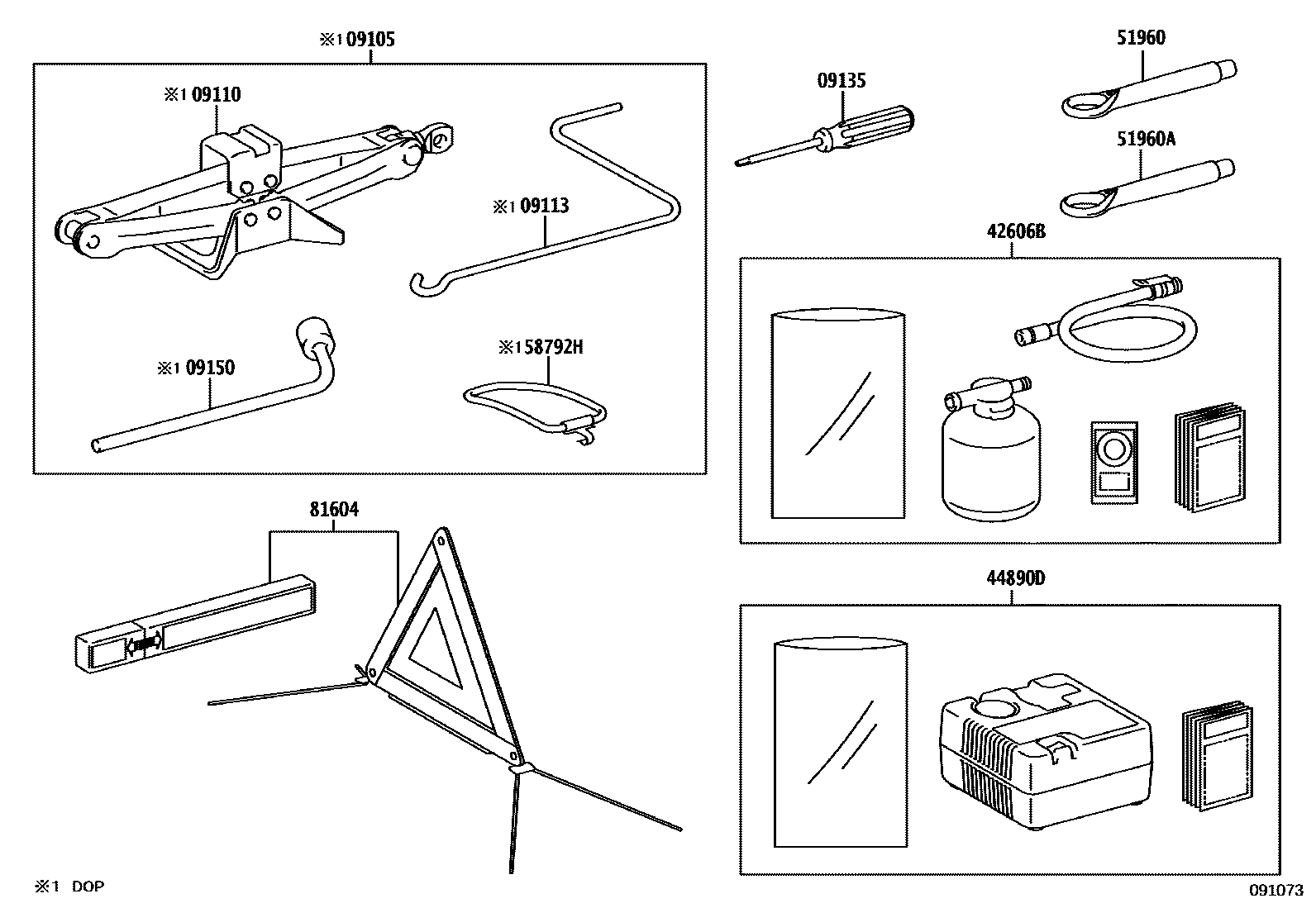

11 parts on this diagram · 1 diagram in section
