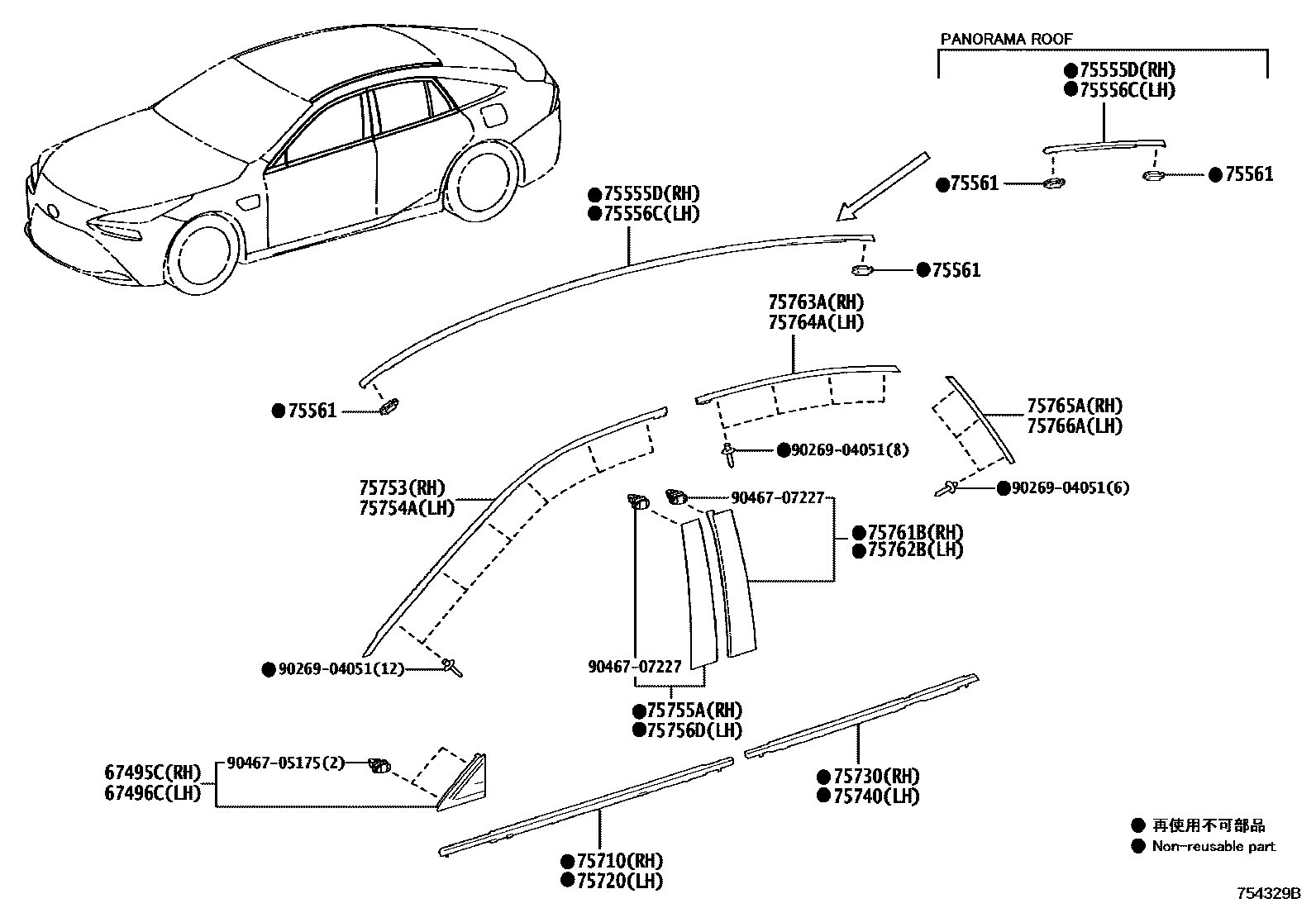

Toyota MIRAI — SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS METAL,1L5
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH
PRECIOUS WHITE PEARL,090
PRECIOUS SILVER,1J6
PRECIOUS METAL,1L5
BLACK,202
PRECIOUS BLACK,219
EMOTIONAL RED 2,3U5
DK.BLUE MC.,8S6
FORCE BLUE MULTIPLE LAYER,8Y7
75561CLIP, ROOF DRIP SIDE FINISH MOULDING, NO.1
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
9026904051
9046705175
9046707227
22 parts on this diagram · 2 diagrams in section
