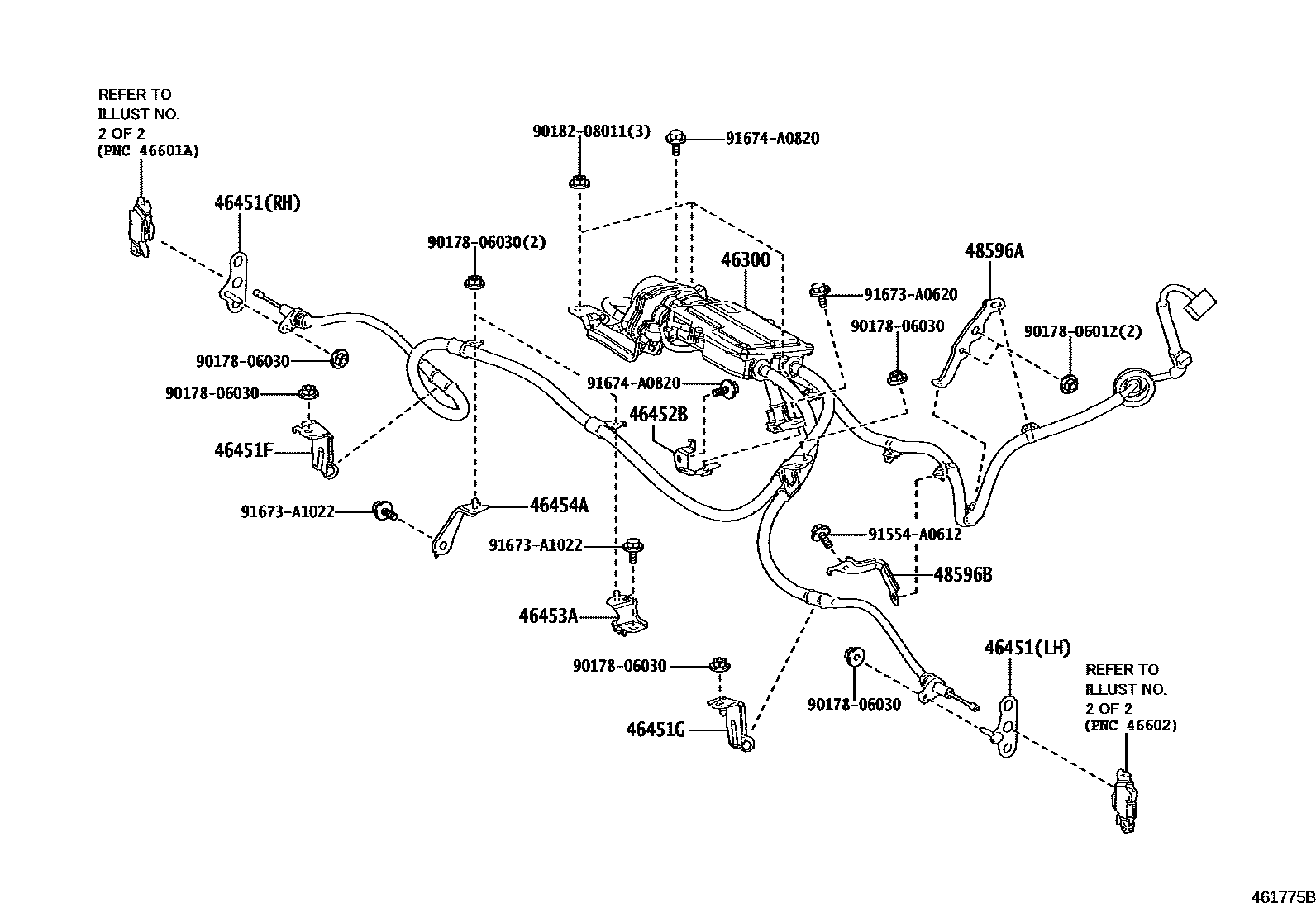

Toyota MIRAI — PARKING BRAKE & CABLE

0001 1 0002 1

46300ACTUATOR ASSY, PARKING BRAKE W/BRACKET

main46300-62010iJPD20¥58,800202108-202411

46451BRACKET, CABLE SUPPORT

main46451-30270iJPD20¥280202108-202411

RH

main46451-30280iJPD20¥280202108-202411

LH

46451FBRACKET, CABLE SUPPORT

main46451-11070iJPD20¥470202108-202411

46451GBRACKET, CABLE SUPPORT

main46451-11040iJPD20¥470202108-202411

46452BBRACKET, CABLE SUPPORT, NO.2

main46452-62010iJPD20¥270202108-202411

46453ABRACKET, CABLE SUPPORT, NO.3

main46451-62020iJPD20¥310202108-202411

46454ABRACKET, CABLE SUPPORT, NO.4

main46451-62030iJPD20¥330202108-202411

48596ACLAMP, ACTUATOR HARNESS, NO.1

main48596-11020iJPD20¥250202108-202411

48596BCLAMP, ACTUATOR HARNESS, NO.2

main48596-62010iJPD20¥250202108-202411

9017806012

main90178-06012¥80

9017806030

main90178-06030¥60

9018208011

main90182-08011¥80

91554A0612

main91554-A0612¥60

91673A0620

main91673-A0620¥60

91673A1022

main91673-A1022¥120

91674A0820

main91674-A0820¥80

16 parts on this diagram · 2 diagrams in section
