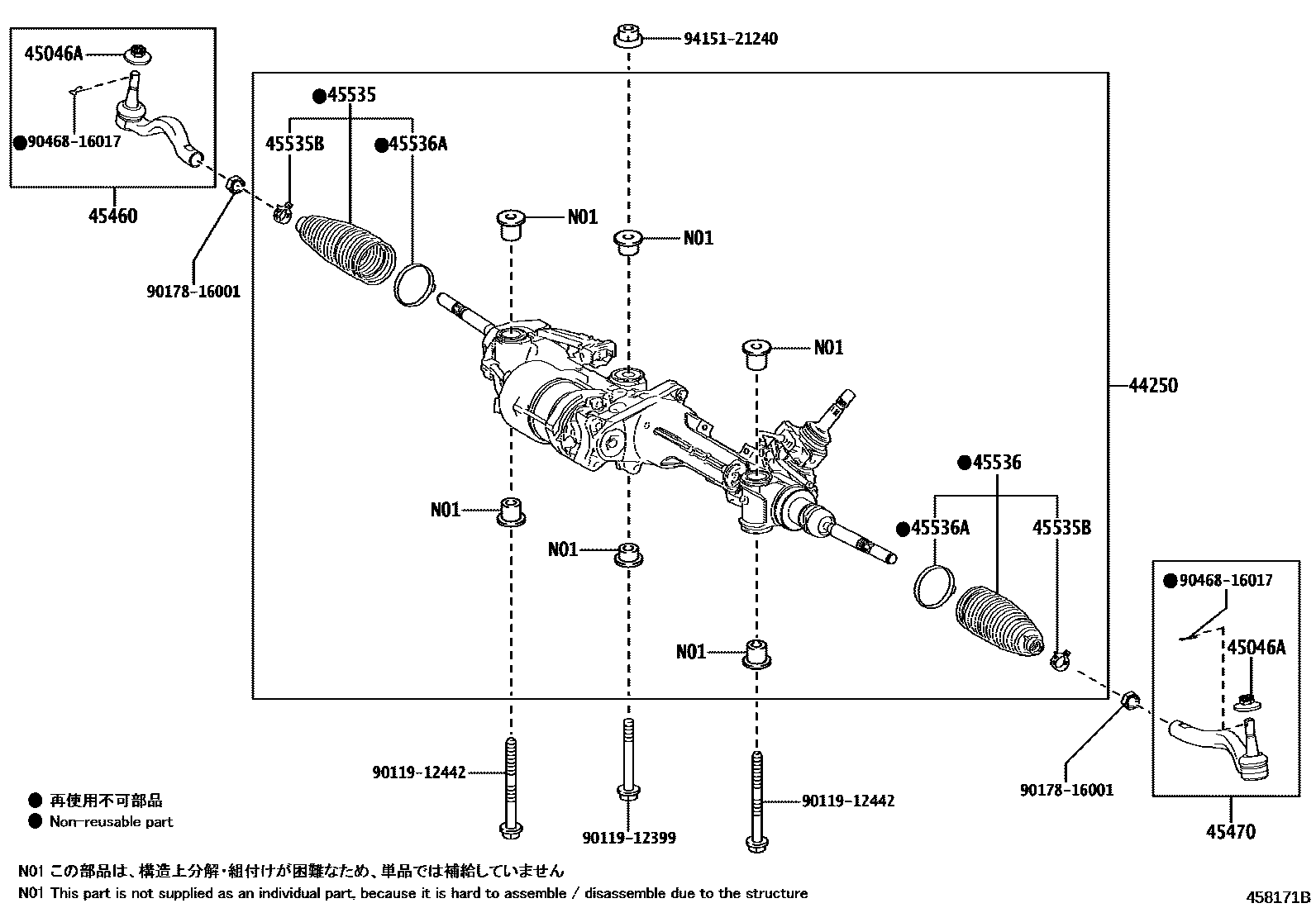

Toyota MIRAI — FRONT STEERING GEAR & LINK

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-62031iJPD20202401-202411

main44250-62080iJPD20202108-202304

*614

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iJPD20¥190202108-202411

45460ROD ASSY, TIE, RH

main45460-59125iJPD20¥2,810202108-202411

45470ROD ASSY, TIE, LH

main45470-59145iJPD20¥2,810202108-202411

45535BOOT, STEERING RACK, NO.1

main45535-19005iJPD20¥790202108-202411

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iJPD20¥180202108-202411

45536BOOT, STEERING RACK, NO.2

main45535-19005iJPD20¥790202108-202411

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-02070iJPD20202108-202411

9011912399

main90119-12399¥310

9011912442

main90119-12442¥360

9017816001

main90178-16001¥120

9046816017

main90468-16017¥90

9415121240

main94151-21240¥100

13 parts on this diagram · 1 diagram in section
