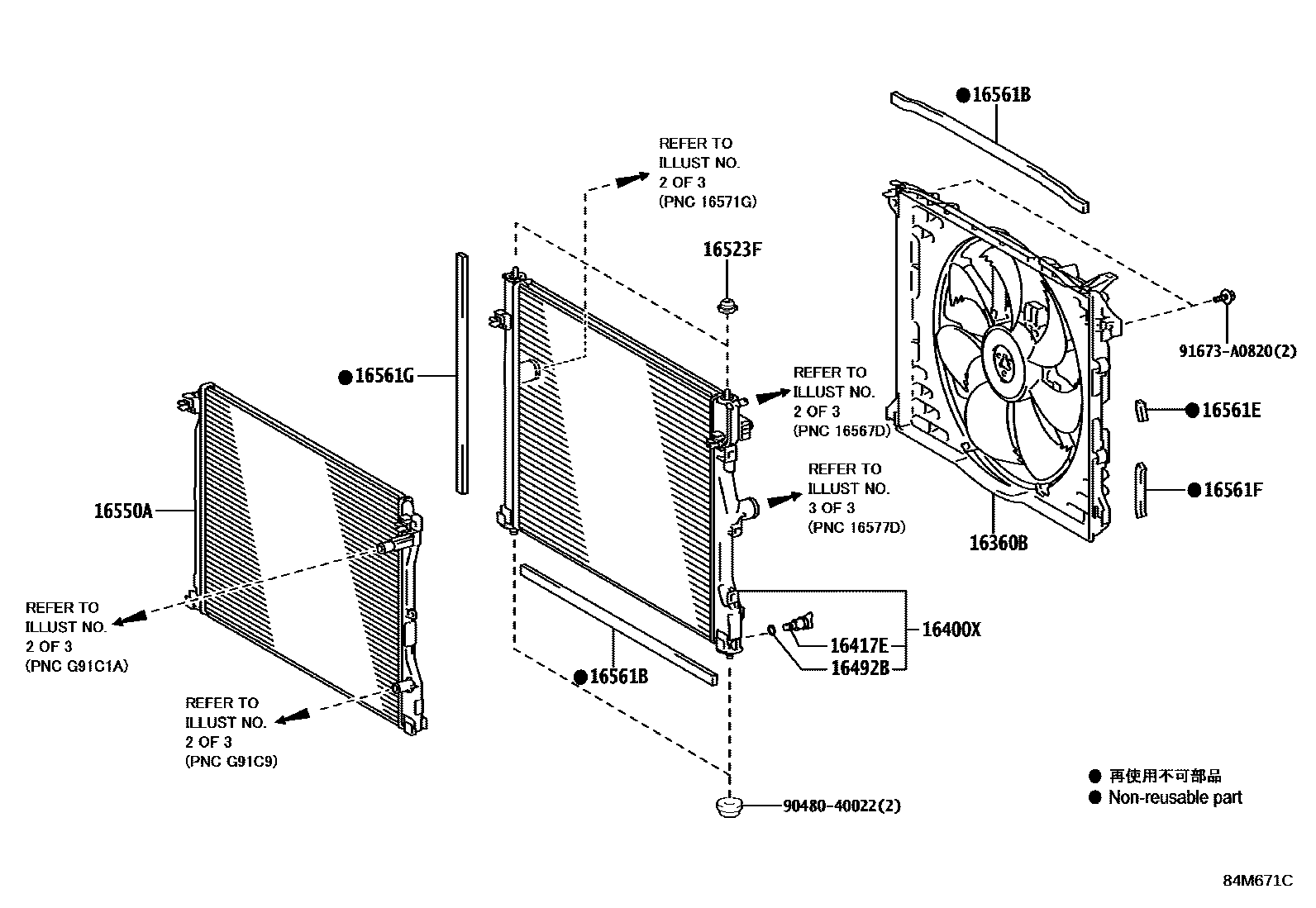

Toyota MIRAI — FCEV COOLING

0001 1RADIATOR 0002 1COOLING HOSE(1/2) 0003 1COOLING HOSE(2/2)

16360BFAN ASSY, W/MOTOR

main16360-77040i3KM..JPD20¥46,000202401-202411

main16360-77040i3KM..JPD20¥46,000202411

main16360-77040i3KM..JPD20¥46,000202108-202304

16400XRADIATOR ASSY, FC

main16400-77110i3KM..JPD20¥43,000202401-202411

main16400-77110i3KM..JPD20¥43,000202411

main16400-77110i3KM..JPD20¥43,000202108-202304

16417ECOCK, RADIATOR DRAIN

main16417-21280i3KM..JPD20¥360202401-202411

main16417-21280i3KM..JPD20¥360202411

main16417-21280i3KM..JPD20¥360202108-202304

16492BRING, O(FOR RADIATOR DRAIN COCK)

main16492-21050i3KM..JPD20¥210202401-202411

main16492-21050i3KM..JPD20¥210202411

main16492-21050i3KM..JPD20¥210202108-202304

16523FCUSHION, RADIATOR SUPPORT

main16523-38010i3KM..JPD20¥590202401-202411

main16523-38010i3KM..JPD20¥590202411

main16523-38010i3KM..JPD20¥590202108-202304

16550ARADIATOR ASSY, EV

main16550-77010i3KM..JPD20¥19,800202401-202411

main16550-77010i3KM..JPD20¥19,800202411

main16550-77010i3KM..JPD20¥19,800202108-202304

16561BSEAL, RADIATOR TO SUPPORT, NO.1

main16561-31170i3KM..JPD20¥230202401-202411

main16561-31170i3KM..JPD20¥230202411

main16561-31170i3KM..JPD20¥230202108-202304

16561ESEAL, RADIATOR TO SUPPORT, NO.2

main16561-31180i3KM..JPD20¥80202401-202411

main16561-31180i3KM..JPD20¥80202411

main16561-31180i3KM..JPD20¥80202108-202304

16561FSEAL, RADIATOR TO SUPPORT, NO.3

main16561-31190i3KM..JPD20¥80202401-202411

main16561-31190i3KM..JPD20¥80202411

main16561-31190i3KM..JPD20¥80202108-202304

16561GSEAL, RADIATOR TO SUPPORT, NO.4

main16561-77020i3KM..JPD20¥200202401-202411

main16561-77020i3KM..JPD20¥200202411

main16561-77020i3KM..JPD20¥200202108-202304

9048040022

main90480-40022¥580

91673A0820

main91673-A0820¥80

12 parts on this diagram · 3 diagrams in section
