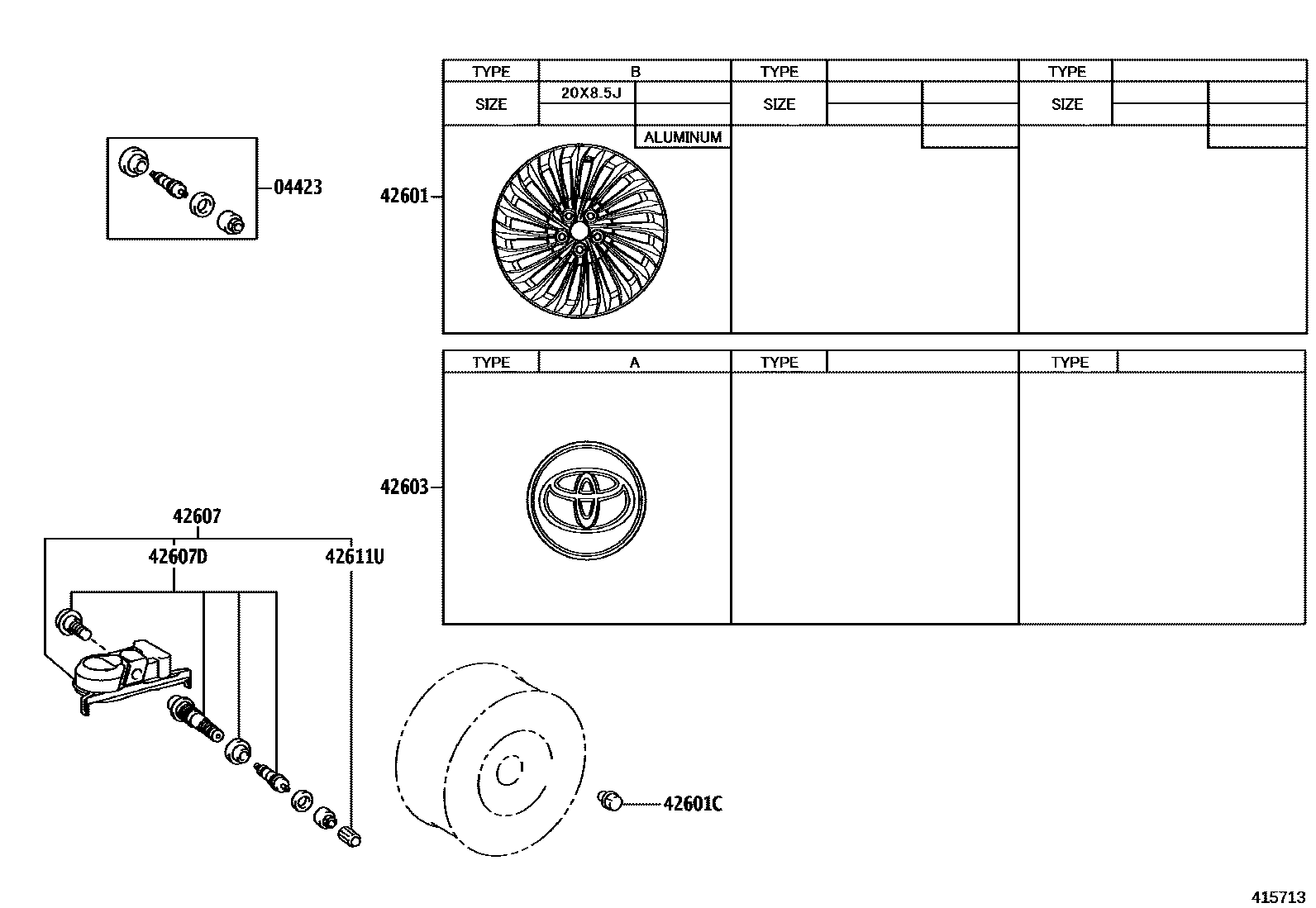

Toyota MIRAI — DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL & WHEEL HUB ORNAME0002 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33060iJPD20¥280202108-202411

42601WHEEL, DISC

main42611-62071iJPD20¥63,300202411

20X8.5J,#,TYPE B:REFER ILLUST.

main4261A-62031iJPD20202108-202411

20X8.5J, #,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01121iJPD20¥490202108-202411

main90942-01122iJPD20¥530202411

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-42130iJPD20¥1,000202108-202411

*ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-12020iJPD20¥6,500202108-202411

main42607-60030iJPD20202411

42607DVALVE, TIRE PRESSURE MONITOR

main90942-05044iJPD20¥530202108-202411

main90942-05047iJPD20¥570202411

42611UCAP, TIRE VALVE

main90942-05039iJPD20¥90202108-202411

7 parts on this diagram · 2 diagrams in section
