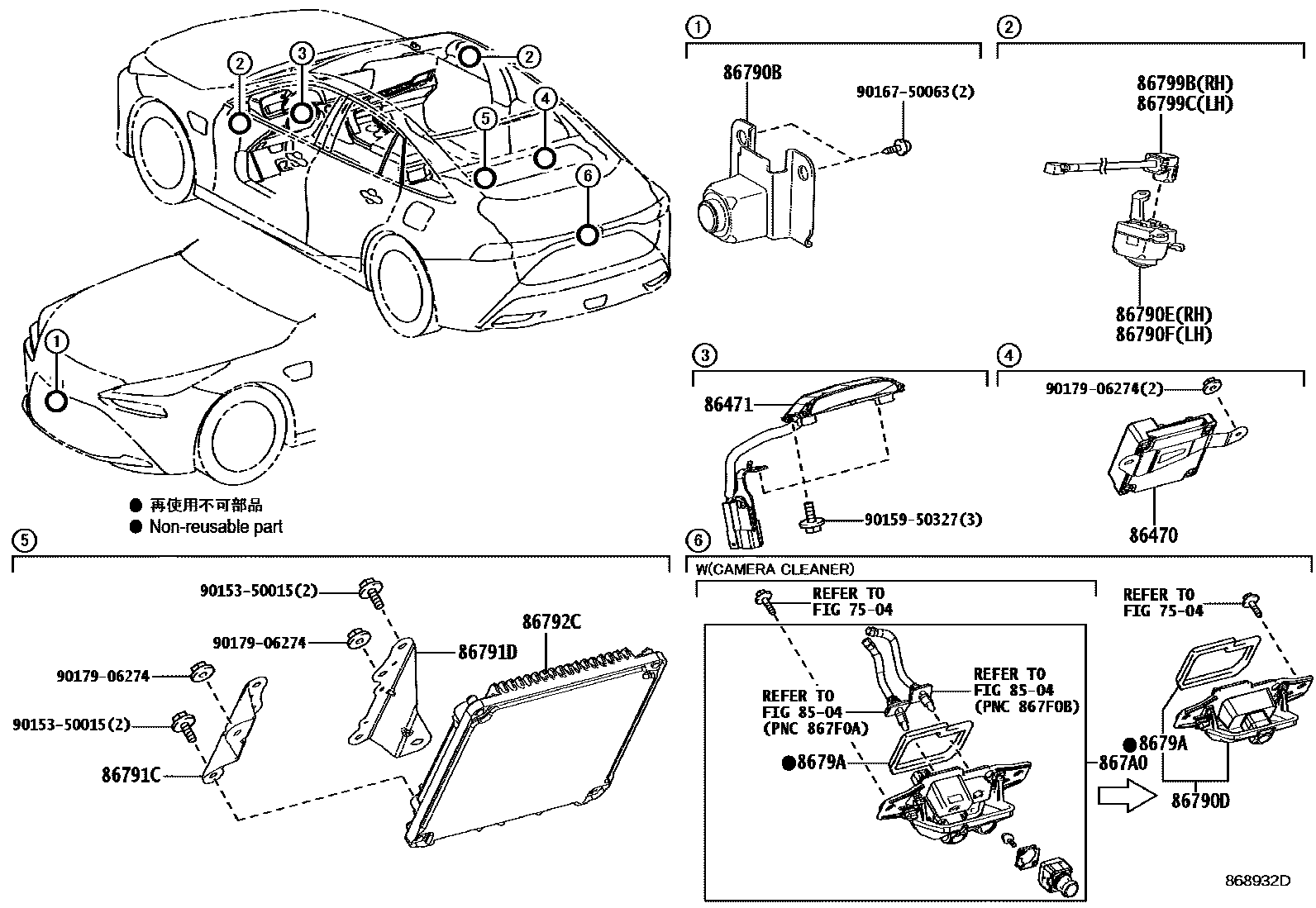

Toyota MIRAI — CAMERA & REAR MONITOR DISPLAY

7504

8504

86470COMPUTER ASSY, DRIVER MONITOR

main86470-62040iJPD20202411

main86470-62040iJPD20202401-202411

86471CAMERA, DRIVER MONITOR

main86471-48010iJPD20¥17,600202411

main86471-48010iJPD20¥17,600202401-202411

86790BCAMERA ASSY, TELEVISION, FR

main86790-62020iJPD20¥34,100202108-202304

main86790-62090iJPD20¥21,900202401-202411

main86790-62090iJPD20¥21,900202411

86790DCAMERA ASSY, TELEVISION, RR

main86790-62080iJPD20¥21,900202411

main86790-62080iJPD20¥21,900202401-202411

main867B0-62020iJPD20¥63,900202108-202211

main867B0-62020iJPD20¥63,900202212-202304

86790ECAMERA ASSY, TELEVISION, SIDE RH

main86795-62060iJPD20202108-202304

86790FCAMERA ASSY, TELEVISION, SIDE LH

main86795-62050iJPD20202108-202304

86791CBRACKET, COMPUTER PARKING ASSIST, NO.1

main86791-62010iJPD20¥450202108-202304

main86791-62030iJPD20202401-202411

main86791-62030iJPD20202411

86791DBRACKET, COMPUTER PARKING ASSIST, NO.2

main86791-62020iJPD20¥520202108-202304

main86791-62040iJPD20202401-202411

main86791-62040iJPD20202411

86792CCOMPUTER, PARKING ASSIST

main86792-62030iJPD20202108-202304

*614

main86792-62140iJPD20202411

main86792-62140iJPD20202401-202411

86799BWIRE, TELEVISION CAMERA, RH

main86799-62060iJPD20202108-202304

86799CWIRE, TELEVISION CAMERA, LH

main86799-62050iJPD20202108-202304

8679ASEAL, TELEVISION CAMERA

main8679A-62030iJPD20¥250202401-202411

main8679A-62030iJPD20¥250202411

main8679A-62030iJPD20¥250202108-202304

867A0CAMERA ASSY, TELEVISION & INNER REAR VIEW MIRROR

main867A0-62020¥93,500

main867A0-62090¥59,300

9015350015

main90153-50015¥60

9015950327

main90159-50327¥70

9016750063

main90167-50063¥60

9017906274

main90179-06274¥70

19 parts on this diagram · 1 diagram in section
