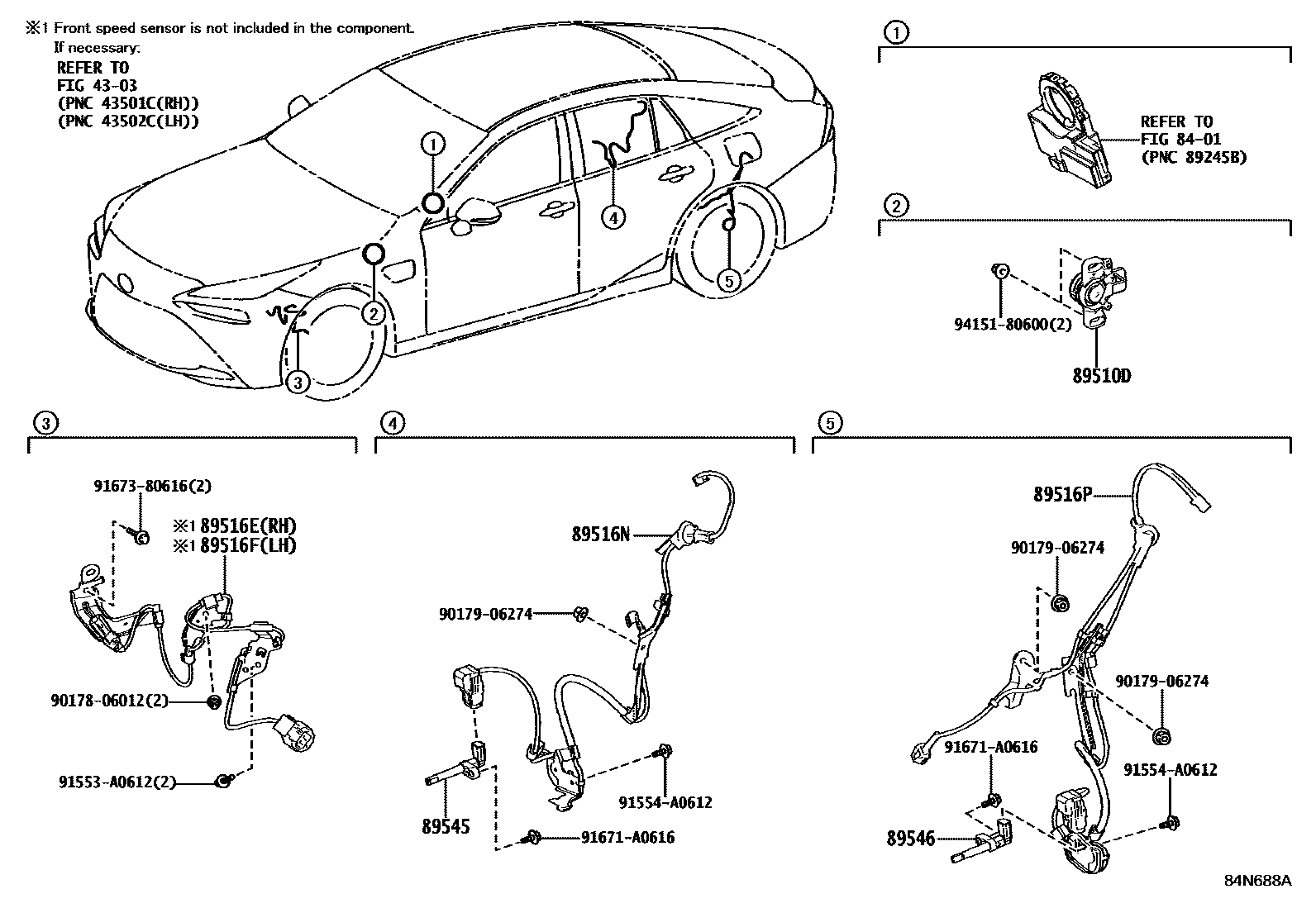

Toyota MIRAI — ABS & VSC

4303

8401

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-47030iJPD20¥7,900202108-202411

89516EWIRE, SKID CONTROL SENSOR, FRONT RH

main89516-62010iJPD20¥3,750202108-202411

89516FWIRE, SKID CONTROL SENSOR, FRONT LH

main89516-62020iJPD20¥3,750202108-202411

89516NWIRE, SKID CONTROL SENSOR, REAR RH

main89516-62030iJPD20¥3,750202108-202411

89516PWIRE, SKID CONTROL SENSOR, REAR LH

main89516-50210iJPD20¥4,640202108-202411

89545SENSOR, SPEED, REAR RH

main89545-30070iJPD20¥13,600202108-202411

89546SENSOR, SPEED, REAR LH

main89546-30070iJPD20¥13,600202108-202411

9017806012

main90178-06012¥80

9017906274

main90179-06274¥70

91553A0612

main91553-A0612¥60

91554A0612

main91554-A0612¥60

91671A0616

main91671-A0616¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

16 parts on this diagram · 1 diagram in section
