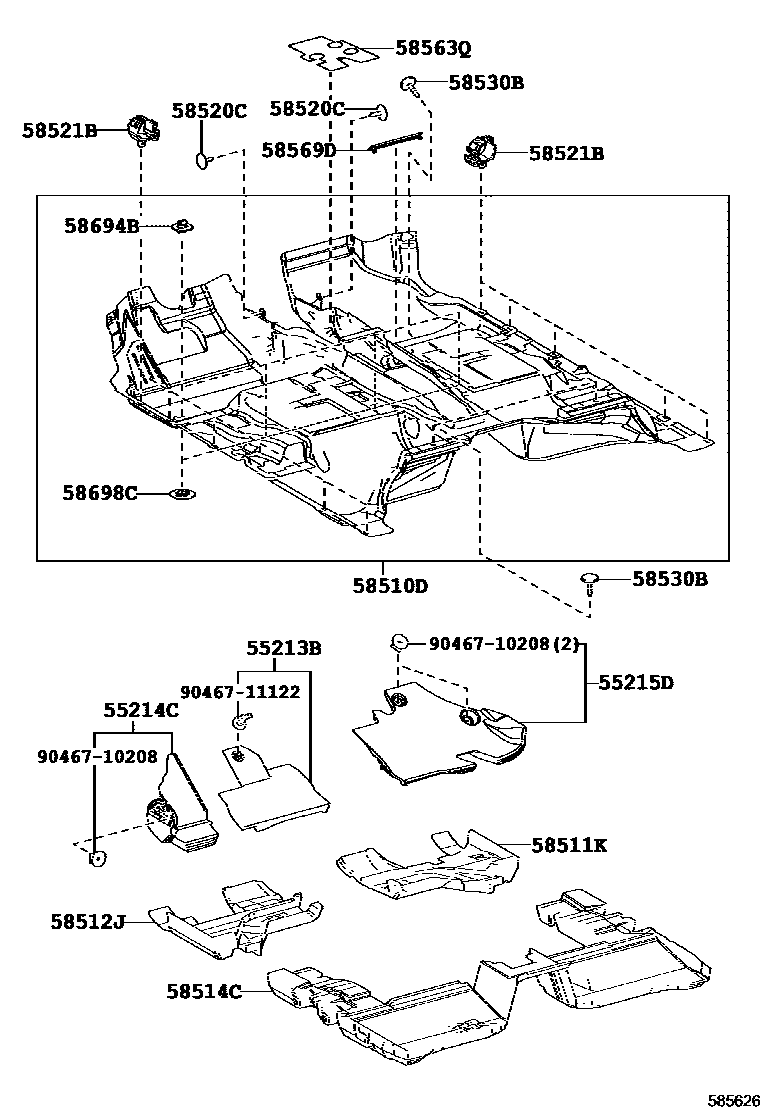

Toyota MIRAI — MAT & CARPET
55213BPAD, DASH PANEL INSULATOR, NO.1
55214CPAD, DASH PANEL INSULATOR, NO.2
55215DPAD, DASH PANEL INSULATOR, NO.3
58510DCARPET ASSY, FLOOR, FRONT
BLACK,TRIM0#,8#
BLACK,TRIM0#,8#
58511KMAT, FLOOR, NO.1
58512JMAT, FLOOR, NO.2
58514CMAT, FROOR, REAR
58520CCLIP(FOR FRONT FLOOR CARPET)
58521BHOOK, FLOOR CARPET
58530BCLIP(FOR FRONT FLOOR CARPET)
58563QSILENCER, FRONT FLOOR, NO.3
58569DCOVER, FRONT FLOOR CAUTION PLATE
BLACK,TRIM0#,8#
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
9046710208
9046711122
16 parts on this diagram · 2 diagrams in section
