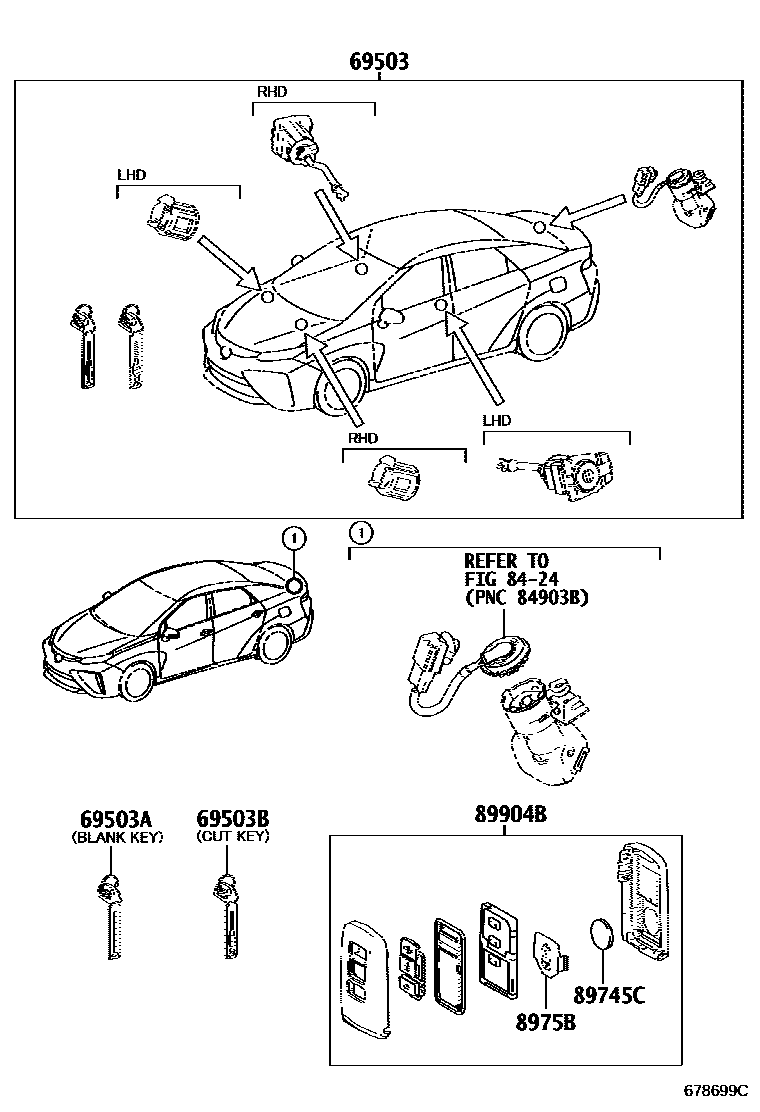

Toyota MIRAI — LOCK CYLINDER SET

69503CYLINDER SET, LOCK

main69005-62020iJPD10..LHD201506-202005

main69005-62040iJPD10..RHD201506-202005

69503AKEY, BLANK

main69515-33100iJPD10¥7,200201506-202005

MASTER KEY,W(*68)

69503BKEY, CUT

main69515-33090iJPD10¥7,900201506-202005

MASTER KEY,W(*68)

8424

89745CBATTERY, TRANSMITTER

main89745-50020iJPD10¥440201506-202005

CR2032

8975BCOVER, TRANSMITTER BATTERY HOUSING

main8975B-33010iJPD10¥80201506-202005

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-62030iJPD10201506-202005

7 parts on this diagram · 1 diagram in section
