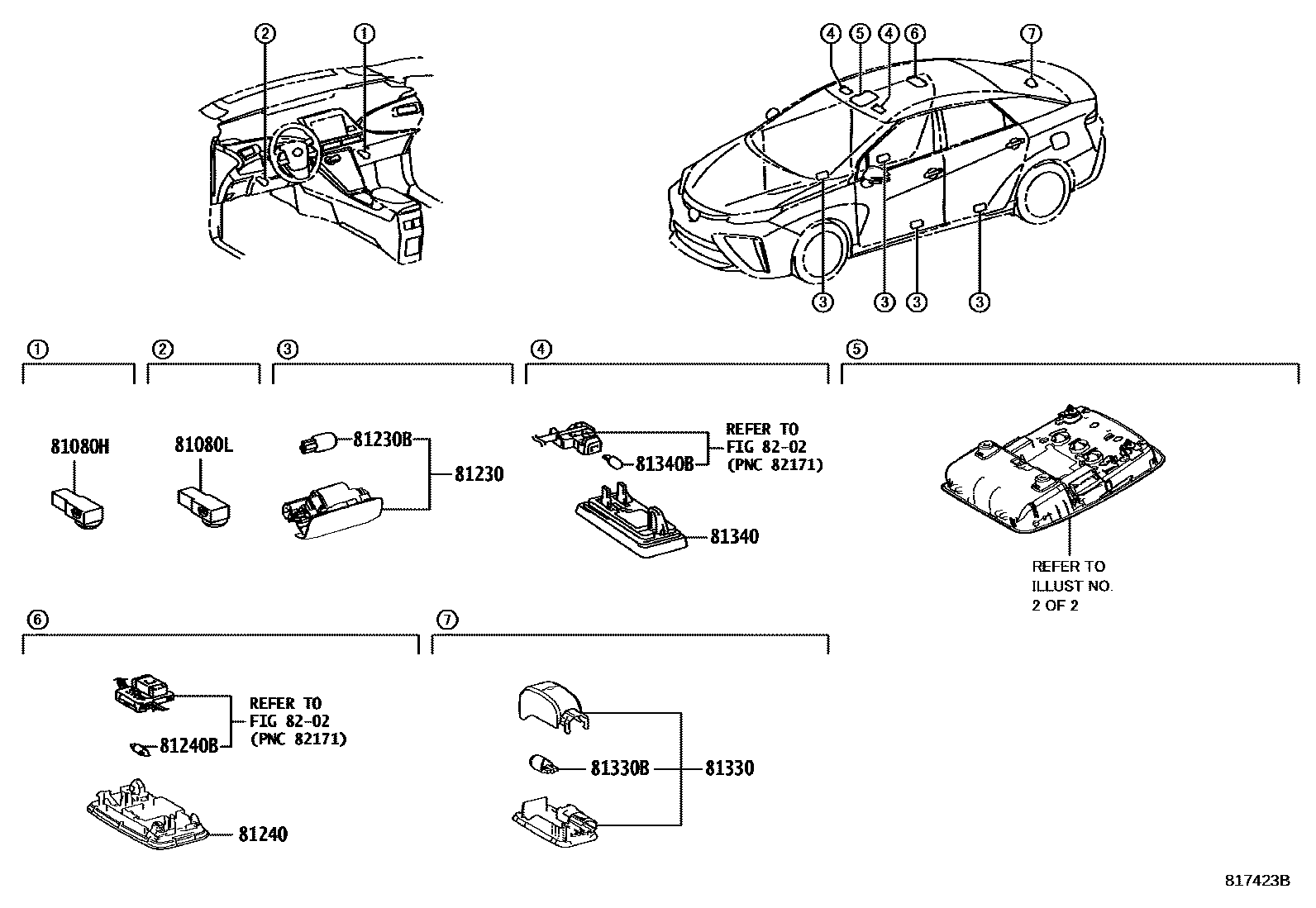

Toyota MIRAI — INTERIOR LAMP

0001 1 0002 1

81080HLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-62010iJPD10¥1,020201506-202005

81080LLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-62010iJPD10¥1,020201506-202005

81230LAMP ASSY, COURTESY

main81230-30200iJPD10¥990201506-202005

81230BBULB(FOR COURTESY LAMP)

main90981-12010iJPD10¥110201506-202005

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-A8iJPD10201506-202005

WARM WHITE,TRIM0#,8#

sub81240-12100¥3,500

81240BBULB, ROOM LAMP, NO.1

main90981-14011iJPD10¥180201506-202005

12V 8W

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81250-30210iJPD10¥1,250201506-202005

81330BBULB, LUGGAGE COMPARTMENT LAMP

main99132-12050iJPD10¥110201506-202005

12V 5W

81340LAMP ASSY, VANITY

main81340-30110iJPD10¥1,670201506-202005

81340BBULB (FOR VANITY LAMP)

main90981-11062iJPD10¥340201506-202005

12V 8W

8202

11 parts on this diagram · 2 diagrams in section
