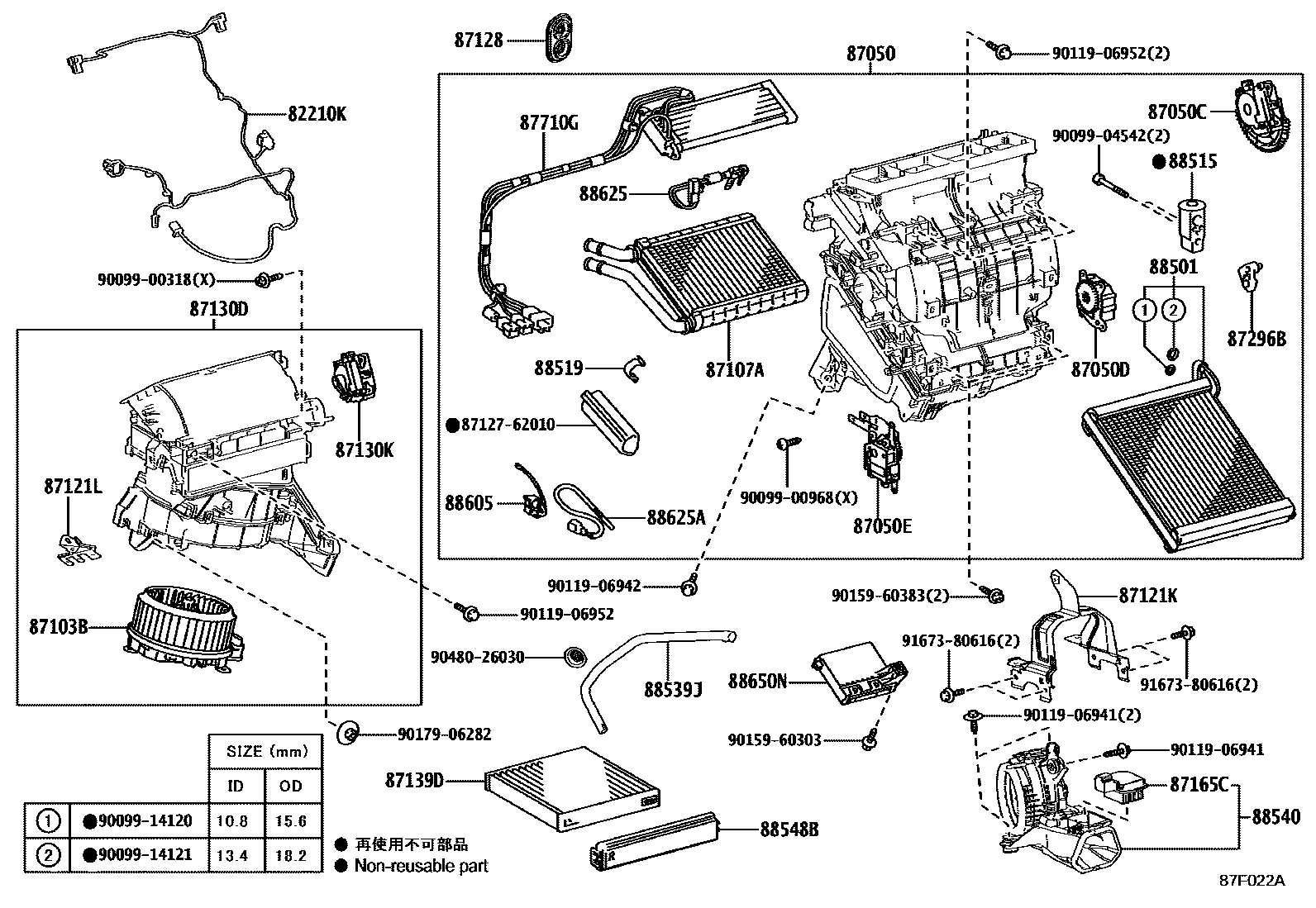

Toyota MIRAI — HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87121KBRACKET, HEATER
87128GROMMET, HEATER
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139DELEMENT, AIR REFINER
*DPF
POLLEN FILTER
87165CCONTROL, BLOWER MOTOR
87296BLEVER, HEATER AIR DAMPER CONTROL
87710GQUICK HEATER ASSY
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515VALVE, COOLER EXPANSION
88519HOLDER, REMOTE BULB
88539JHOSE, DRAIN COOLER
88540BLOWER ASSY, COOLER
88548BCASE, AIR FILTER
88605HARNESS SUB-ASSY, COOLER WIRING, NO.1
88625THERMISTOR, COOLER, NO.1
88625ATHERMISTOR, COOLER NO.2
8712762010PACKING, HEATER AIR DAMPER
main87127-62010
9009900318
main90099-00318
9009900968
main90099-00968
9009904542
9009914120
9009914121
main90099-14121
9011906941
9011906942
9011906952
9015960303
9015960383
9017906282
9048026030
main90480-26030
9167380616
40 parts on this diagram · 2 diagrams in section
