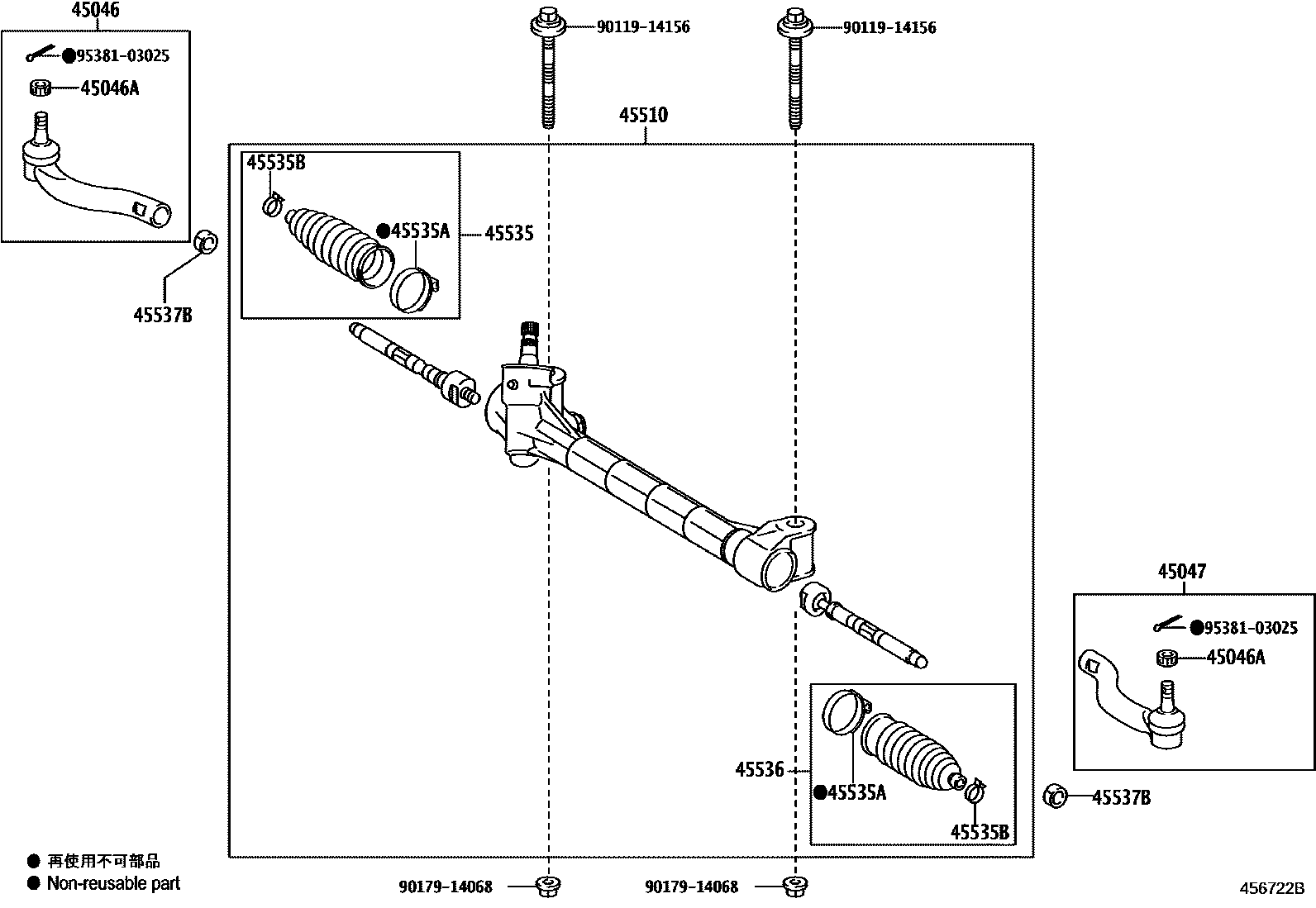

Toyota MIRAI — FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49195iJPD10¥3,090201506-202005

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iJPD10¥130201506-202005

45047END SUB-ASSY, TIE ROD, LH

main45047-49135iJPD10¥3,090201506-202005

45510GEAR ASSY, STEERING

main45510-62050iJPD10..RHD¥39,500201506-202005

main45510-62060iJPD10..LHD201506-202005

45535BOOT, STEERING RACK, NO.1

main45535-49015iJPD10¥1,160201506-202005

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010iJPD10¥270201506-202005

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iJPD10¥180201506-202005

45536BOOT, STEERING RACK, NO.2

main45535-49015iJPD10¥1,160201506-202005

45537BNUT, RACK END LOCK

main90178-16001iJPD10¥120201506-202005

9011914156

main90119-14156¥480

9017914068

main90179-14068¥120

9538103025

main95381-03025¥130

12 parts on this diagram · 2 diagrams in section
