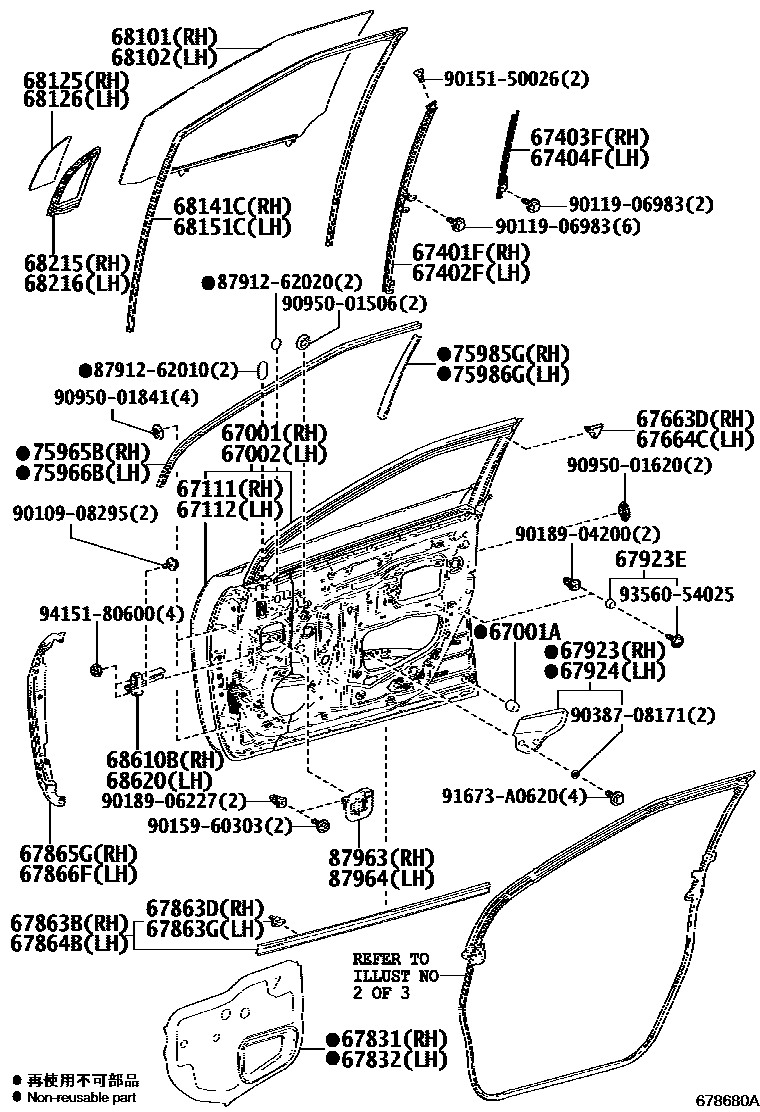

Toyota MIRAI — FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67663DGARNISH, DOOR FRAME, RH
67664CGARNISH, DOOR FRAME, LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH
67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67863GRETAINER, LH(FOR FRONT DOOR NO.2 WEATHERSTRIP)
67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67923ECUSHION, FRONT DOOR STIFFENER, NO.1
67924CUSHION, FRONT DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141CRUN, FRONT DOOR GLASS, RH
68151CRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75965BSTRIPE, FRONT DOOR NO.4 RH
75966BSTRIPE, FRONT DOOR NO.4 LH
75985GSTRIPE, FRONT DOOR OUTSIDE, RH
75986GSTRIPE, FRONT DOOR OUTSIDE, LH
87963COVER, OUTER MIRROR INSTALL HOLE, RH
87964COVER, OUTER MIRROR INSTALL HOLE, LH
8791262010PROTECTOR, OUTER MIRROR
8791262020PROTECTOR, OUTER MIRROR
9010908295
9011906983
9015150026
9015960303
9018904200
9018906227
9038708171
9095001506
9095001620
9095001841
91673A0620
9356054025
9415180600
53 parts on this diagram · 3 diagrams in section
