Toyota MIRAI — FCEV STACK & CONVERTER

0001 1FC CONVERTER & FC STACK(1/2) 0002 1FC CONVERTER & FC STACK(2/2) 0003 1FC PUMP INVERTER & JUNCTION B0004 1HYDROGEN DETECTOR&SOLENOID RE0005 1HYDROGEN DETECTOR&SOLENOID RE

1A182MOUNT, FC STACK, NO.2

main1A182-77040i4JM..JPD10¥480201506-202005

1A694BRACKET, FC WIRING HARNESS, NO.4

main1A694-77010i4JM..JPD10¥280201506-202005

1A695BRACKET, FC WIRING HARNESS, NO.5

main1A695-77010i4JM..JPD10¥470201506-202005

1A696BRACKET, FC WIRING HARNESS, NO.6

main1A696-77010i4JM..JPD10¥570201506-202005

1A697BRACKET, FC WIRING HARNESS, NO.7

main1A697-77010i4JM..JPD10¥3,950201506-202005

8431

8446

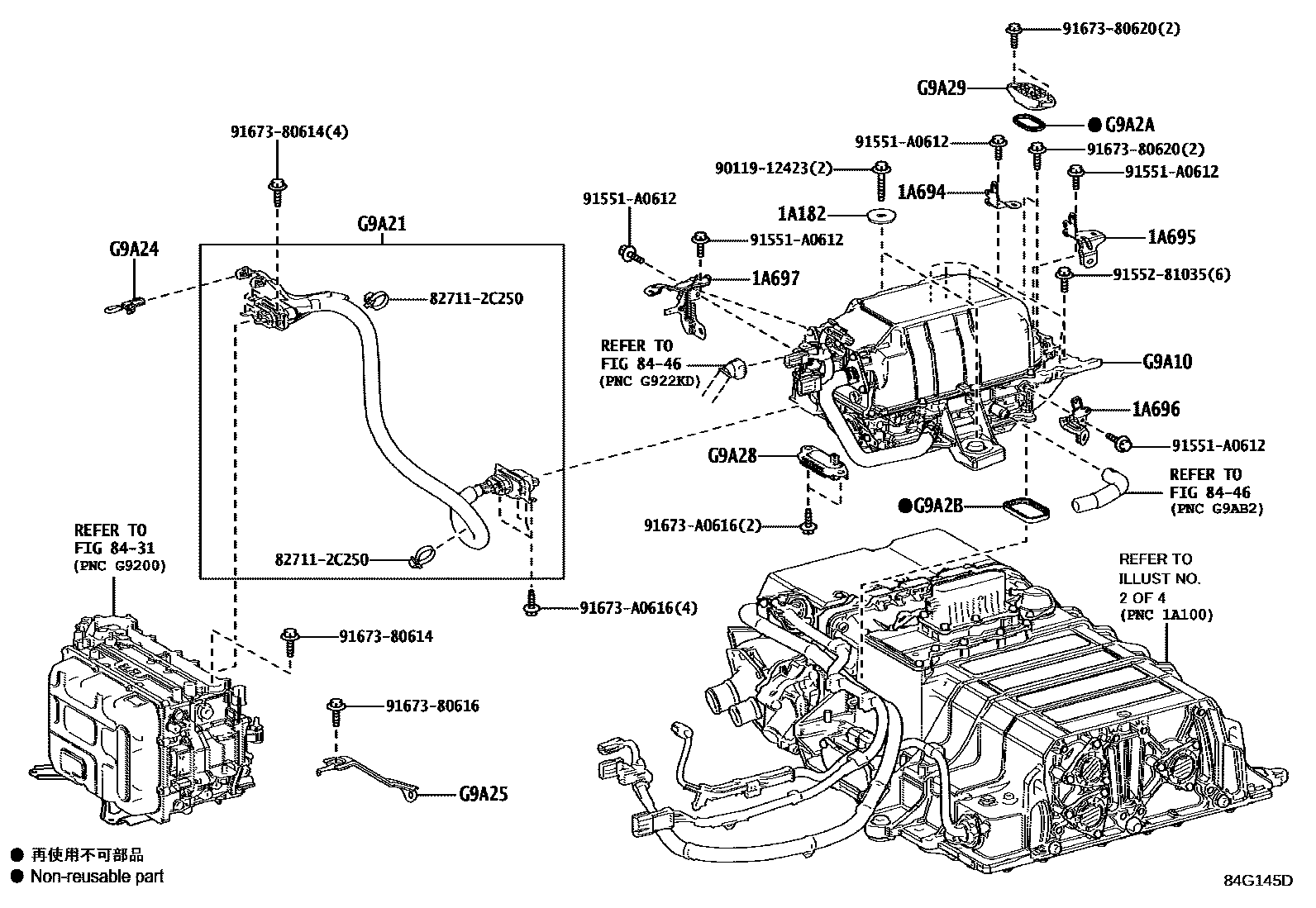

G9A10CONVERTER ASSY, FC

mainG9A1062010iJPD10201506-201611

subG9A10-62011¥172,000

mainG9A1062011iJPD10201612-202005

G9A21CABLE, FC CONVERTER POWER OUTLET

mainG9A2162010iJPD10201506-202005

G9A24WIRE, FC CONVERTER CABLE INTERLOCK

mainG9A2462010iJPD10201506-202005

G9A25BRACKET, FC CONVERTER POWER OUTLET

mainG9A2562010iJPD10201506-202005

G9A28COVER, FC CONVERTER SERVICE HOLE, FRONT

mainG9A2862010iJPD10201506-202005

G9A29COVER, FC CONVERTER SERVICE HOLE, REAR

mainG9A2962010iJPD10201506-202005

G9A2AGASKET, FC CONVERTER SERVICE HOLE, REAR

mainG9A2A62010iJPD10201506-202005

G9A2BGASKET, FC CONVERTER, REAR

mainG9A2B62010iJPD10201506-202005

827112C250WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C250¥120

9011912423

main90119-12423¥270

91551A0612

main91551-A0612¥60

9155281035

main91552-81035¥120

9167380614

main91673-80614¥60

9167380616

main91673-80616¥60

9167380620

main91673-80620¥60

91673A0616

main91673-A0616¥60

23 parts on this diagram · 5 diagrams in section
