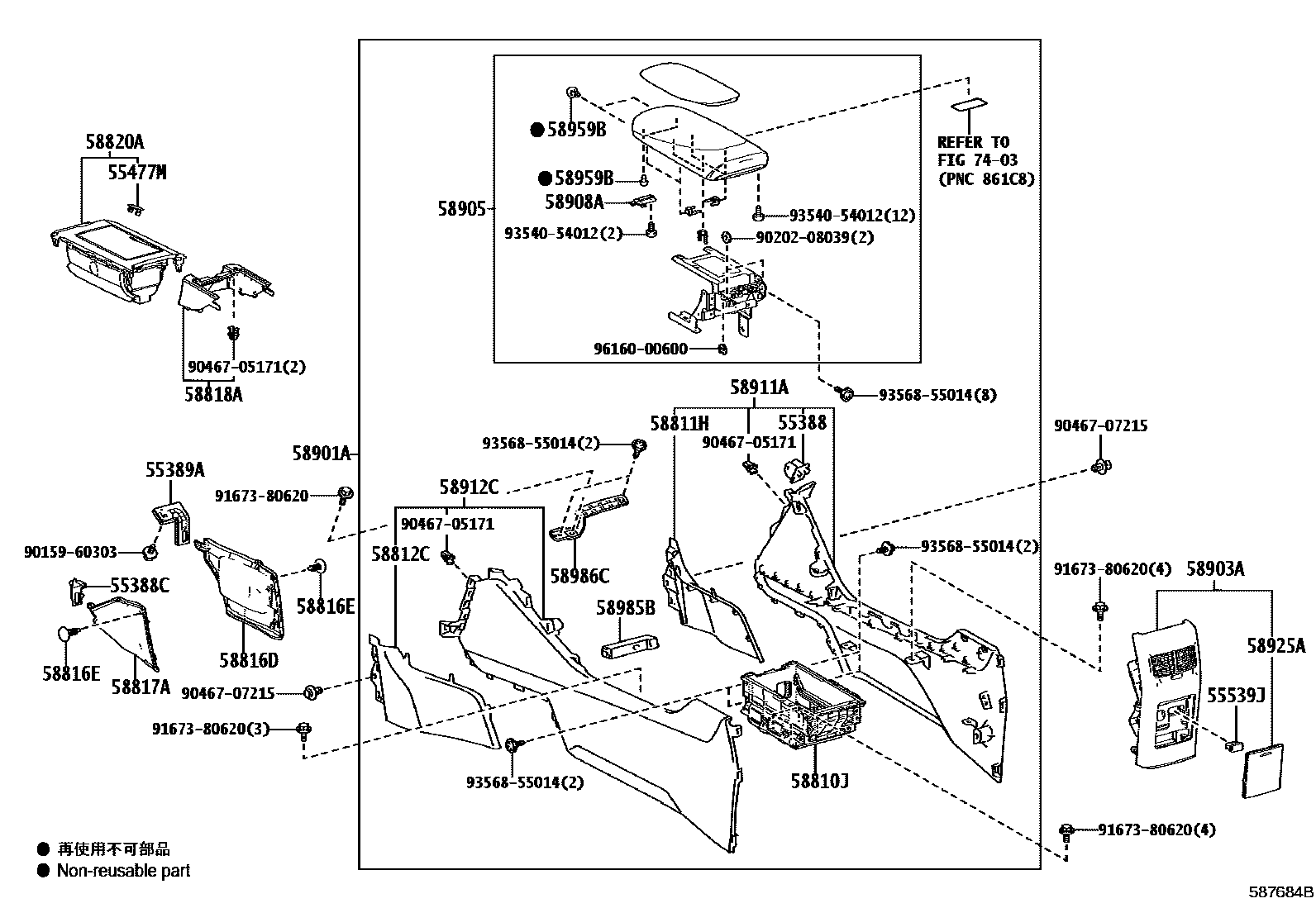

Toyota MIRAI — CONSOLE BOX & BRACKET
55388BRACKET, UPPER CONSOLE, MOUNTING
55388CBRACKET, CONSOLE MOUNTING, RH
55389ABRACKET, CONSOLE MOUNTING, LH
55477MCOVER, CIGARETTE LIGHTER HOLE
55539JCOVER, SPARE SWITCH HOLE
BLACK
58810JBOX ASSY, CONSOLE
58811HBOX, CONSOLE, RH
BLACK,TRIM0#,8#
58812CBOX, CONSOLE, LH
BLACK,TRIM0#,8#
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM0#,8#
BLACK,TRIM0#,8#
58816ECLIP, CONSOLE BOX INSERT, FRONT
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,8#
BLACK,TRIM0#,8#
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM0#,8#
58901ABOX SUB-ASSY, CONSOLE, REAR
WARM WHITE,TRIM00
BLACK,TRIM8#
BLACK,TRIM01
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,8#
58905DOOR SUB-ASSY, CONSOLE COMPARTMENT
WARM WHITE,TRIM00
BLACK,TRIM8#
BLUE BLACK,TRIM01
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58911APANEL, BOX SIDE, NO.1
WARM WHITE,TRIM00
BLACK,TRIM01,8#
WARM WHITE,TRIM00
BLACK,TRIM01,8#
58912CPANEL, BOX SIDE, NO.2
WARM WHITE,TRIM00
BLACK,TRIM01,8#
WARM WHITE,TRIM00
BLACK,TRIM01,8#
58925APOCKET, CONSOLE BOX, REAR
BLACK,TRIM0#,8#
58959BCUSHION, CONSOLE COMPARTMENT DOOR
58985BRETAINER, CONSOLE BOX, NO.1
58986CRETAINER, CONSOLE BOX, NO.6
7403
9015960303
9020208039
9046705171
9046707215
9167380620
9354054012
9356855014
9616000600
32 parts on this diagram · 3 diagrams in section
