Toyota MIRAI — CLEARANCE & BACK SONAR

0001 1 0002 1

5201

5202

89340ACOMPUTER ASSY, CLEARANCE WARNING

main89340-62010iJPD10¥29,700201506-201811

main89340-62050iJPD10¥29,800201811-202005

89341ASENSOR, ULTRASONIC, NO.1

main89341-30040-C0iJPD10201506-201811

BLACK

89341BSENSOR, ULTRASONIC, NO.2

main89341-78010-A3iJPD10201506-201811

WHITE PEARL CS.,062 ,2NL

main89341-78010-B4iJPD10201506-201811

PRECIOUS SILVER,1J6 ,2MR

main89341-78010-C4iJPD10201506-201811

PRECIOUS BLACK,219 ,2MS

main89341-78010-D2iJPD10201506-201811

DK. RED M.M.,2NM

main89341-78010-J4iJPD10201506-201811

DK.BLUE MC.,2MT ,8S6

main89341-78010-J7iJPD10201506-201811

PURE BLUE ME.,2NV

89343CBUZZER, CLEARANCE WARNING, NO.1

main89343-48010iJPD10¥1,850201506-202005

89348JCLIP, ULTRASONIC SENSOR

main89348-58130iJPD10¥0201811-202005

main89348-76010iJPD10¥280201506-201811

91631J0612

main91631-J0612¥110

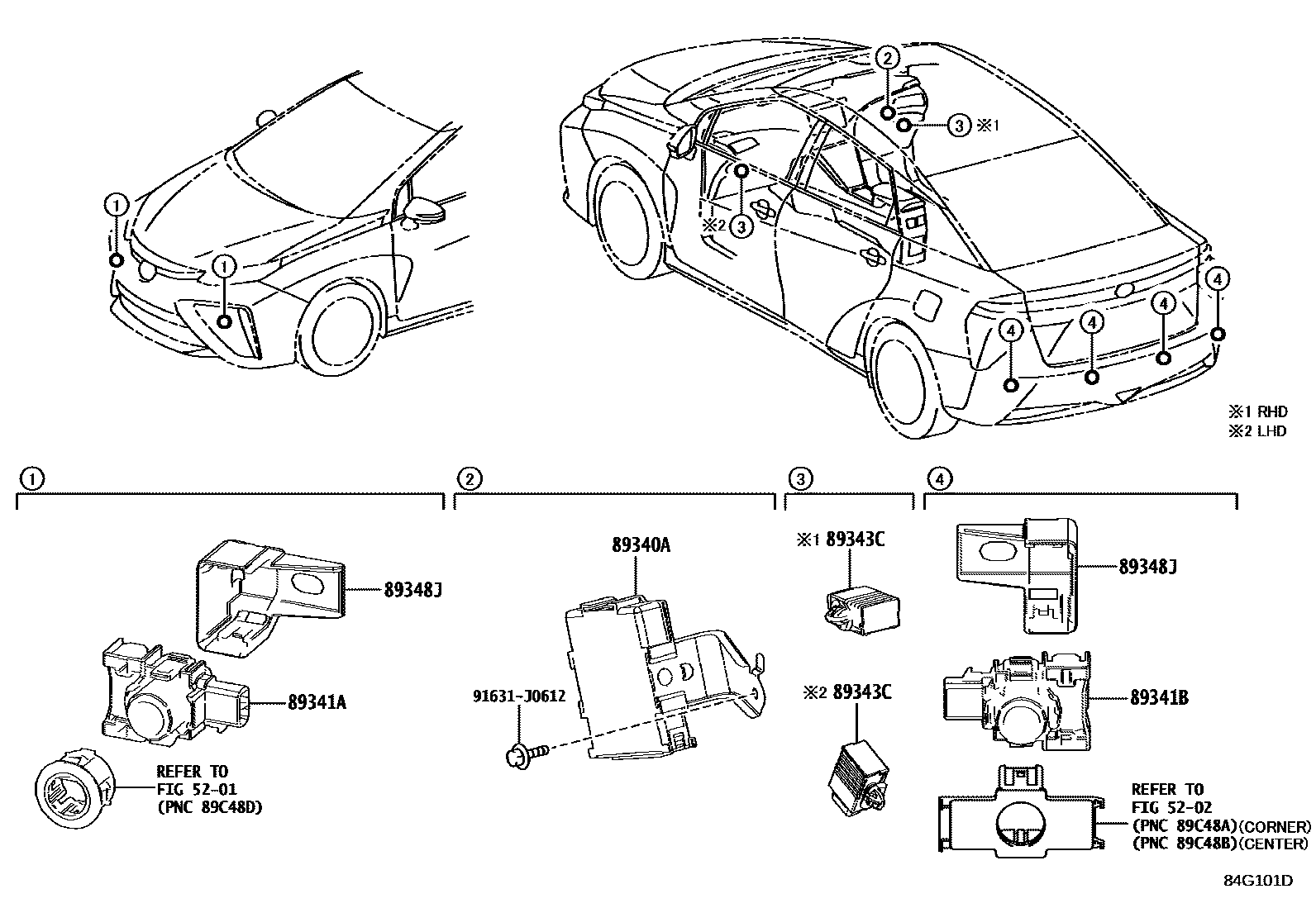

8 parts on this diagram · 2 diagrams in section
