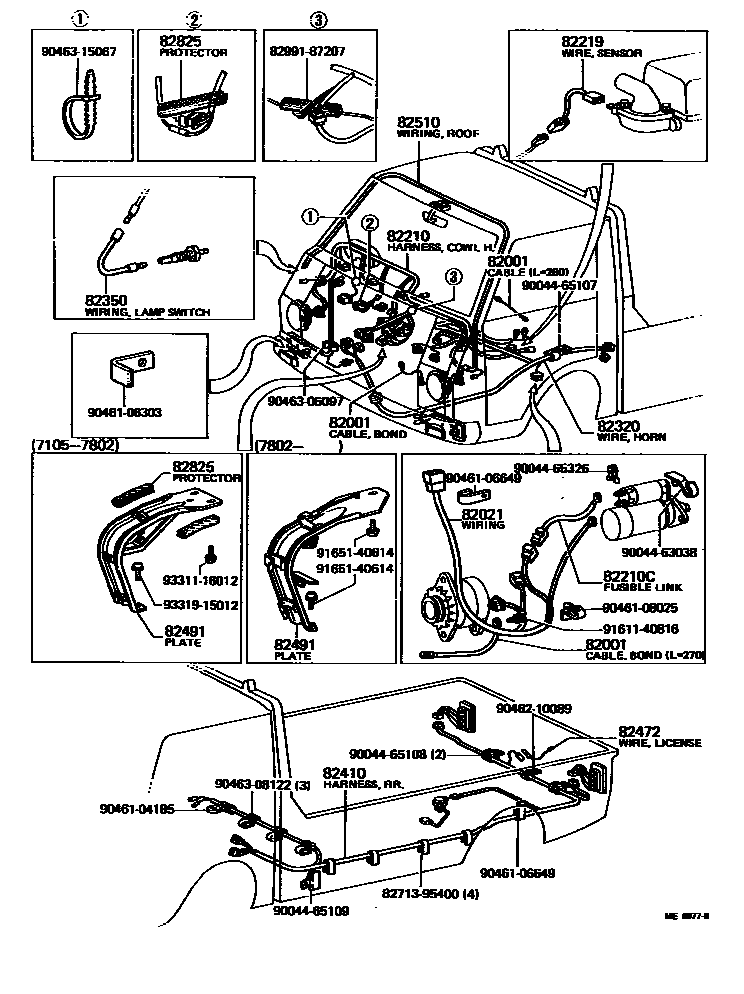

Toyota LITEACE — WIRING & CLAMP

0001 1 0003 1 0004 1

82001CABLE, BOND, NO.1

main90049-80003iKM10..TR197105-197909

L=280

main90049-80005iKM1#..TR197105-197909

L=270

main90980-07001iKM1#..HRF,SRF¥700197105-197909

L=280

sub90980-07051¥850

main90980-07042iKM1#197105-197909

L=165

82021WIRING ASSY, STARTER

main82650-87401iKM10..TR197105-197408

main82650-87403iKM1#..T3197607-197909

82210HARNESS ASSY, WIRING COWL TO HEADLAMP, NO.1

main82210-87402iKM10..TR197105-197304

main82210-87403iKM10..TR197304-197309

main82210-87404iKM10..TR197309-197404

main82210-87405iKM10..TR197404-197408

main82210-87406iKM10..T3197607-197610

main82210-87409iKM10..T3197610-197802

main82210-87411iKM11..T3197802-197909

main82210-95700iKM10..SRF197105-197307

main82210-95701iKM10..SRF197307-197404

main82210-95703iKM10..SRF197404-197511

main82210-95708iKM10..V197511-197610

main82210-95711iKM10..V197610-197802

main82210-95714iKM11..V197802-197909

82210CFUSIBLE LINK

main90982-08011iKM1#¥550197105-197909

82219WIRE, THERMO SENSOR

main82417-87401iKM1#..T3197607-197805

82320WIRE ASSY, TO HORN

main82630-87402iKM10..TR197105-197307

main82630-87405iKM10..TR197307-197408

main82630-87407iKM10..T3197607-197802

main82630-87410iKM11..T3197802-197909

82350WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR)

main84232-20030iKM1#..V¥940197105-197909

FOR BACK DOOR

main84232-20030iKM10¥940197105-197108

FOR FRONT DOOR

main84232-95700iKM1#..HRF,SRF197105-197909

FOR SIDE DOOR

main84233-95700iKM1#197108-197909

FOR FRONT DOOR

82410HARNESS ASSY, WIRING TO REAR LAMP

main82410-87401iKM10..T1197105-197112

sub82410-87403

main82410-87402iKM10..T3197105-197112

sub82410-87404

main82410-87403iKM10..T1197112-197208

main82410-87404iKM10..T3197112-197208

main82410-87405iKM10..T1197208-197408

main82410-87406iKM10..T3197208-197408

main82410-87408iKM10..T3197607-197610

main82410-87409iKM1#..T3197610-197909

main82410-95700iKM10..SRF197105-197307

main82410-95701iKM10..SRF197307-197511

main82410-95703iKM10197511-197605

main82410-95707iKM10..V197605-197712

main82410-95709iKM11..V197802-197909

main82410-95711iKM10..V197712-197802

W/ALTERNATOR SOCKET

82472WIRE, LICENSE LAMP

main82472-87402iKM1#..T3197610-197909

82491PLATE, WIRING HARNESS PROTECTOR, NO.1

main82707-95700iKM10197105-197309

main82707-95701iKM10197309-197802

main82707-95702iKM11197802-197909

82510WIRING ASSY, ROOF

main82330-95700iKM10..V197105-197909

main82330-95702iKM10..V197511-197610

main82330-95704iKM1#..HRF197711-197909

main82510-87401iKM10..TR197105-197110

main82510-87402iKM10..TR197110-197306

main82510-87403iKM10..TR197306-197909

82825PROTECTOR, WIRING HARNESS

main82718-95700iKM10197105-197909

L=130

main82718-95701iKM1#..V197706-197909

L=100

8271395400

main82713-95400

8299187207WIRE, FUSIBLE LINK REPAIR

main82991-87207

9004463038

main90044-63038

9004465107

main90044-65107

9004465108

main90044-65108

9004465109

main90044-65109

9004465326

main90044-65326

9046104185

main90461-04185

9046106303

main90461-06303¥180

9046106649

main90461-06649

9046108025

main90461-08025¥320

9046210089

main90462-10089

9046306097

main90463-06097¥170

9046308122

main90463-08122

9046315067

main90463-15067¥250

9161140816

main91611-40816¥140

9165140614

main91651-40614¥160

9331116012

main93311-16012¥90

9331915012

main93319-15012¥70

31 parts on this diagram · 3 diagrams in section
