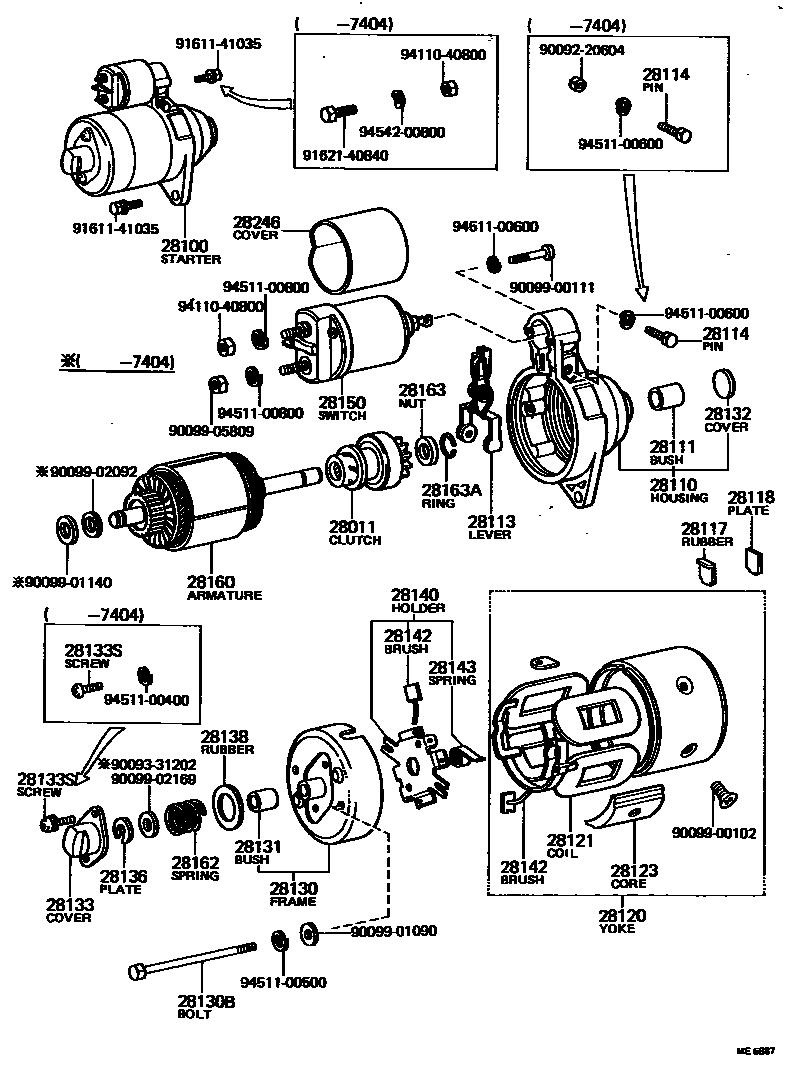

Toyota LITEACE — STARTER

0001 1 0002 1

28011CLUTCH SUB-ASSY, STARTER

main28011-22020i3K..KM10¥4,810197105-197511

main28011-22020i3KJ..KM10¥4,810197511-197802

12V 0.6KW

main28011-22020i4KJ..KM11¥4,810197802-197909

main28011-41011i3KJ..KM10¥6,700197511-197802

12V 0.8KW

28100STARTER ASSY

main28100-22012i3K..KM10¥62,000197105-197404

12V 0.6KW

sub28100-12012¥62,000

main28100-22021i3K..KM10197105-197404

12V 0.8KW

main28100-24022i3K..KM10¥55,000197404-197511

12V 0.8KW

sub28100-24110

main28100-24030i3K..KM10¥49,100197404-197511

12V 0.6KW

sub28100-24070¥61,900

main28100-24031i4KJ..KM11¥65,600197802-197909

12V 0.6W,12V 0.6KW

sub28100-13060¥62,100

main28100-24060i4KJ..KM11¥69,500197802-197909

12V 0.8KW

sub28100-13020¥73,000

main28100-24070i3KJ..KM10¥61,900197511-197802

12V 0.6KW

sub28100-13061¥62,100

main28100-24090i3KJ..KM10¥76,500197511-197802

12V 0.8KW

sub28100-24023¥69,500

28110HOUSING ASSY, STARTER DRIVE

main28110-22012i3K..KM10197105-197404

main28110-24010i3K#,4KJ..KM1#197404-197909

28111BUSH(FOR STARTER HOUSING)

main28111-51011i3K#,4KJ..KM1#197105-197909

STD

main90099-10033i3K..KM10¥220197105-197511

U/S 0.3

main90099-10038i3K..KM10¥230197105-197511

U/S 0.5

28113LEVER, STARTER PINION DRIVE

main28113-41011i3K#,4KJ..KM1#¥680197105-197909

28114PIN, STARTER DRIVE LEVER SET

main28114-25010i3K#,4KJ..KM1#197404-197909

main28114-41011i3K..KM10197105-197404

28117RUBBER(FOR STARTER YOKE)

main28117-41012i3K..KM10197105-197511

main28117-41013i3KJ,4KJ..KM1#197511-197909

28118PLATE(FOR STARTER YOKE)

main28118-41012i3K..KM10197105-197511

sub28118-41013

main28118-41013i3KJ,4KJ..KM1#197511-197909

28120YOKE ASSY, STARTER

main28120-22011i3K..KM10197105-197511

12V 0.6KW

main28120-22011i3KJ..KM10197511-197802

12V 0.6KW

main28120-24020i4KJ..KM11197802-197909

12V 0.8KW

main28120-24030i4KJ..KM11197802-197909

12V 0.6KW

main28120-36040i3KJ..KM10197511-197802

12V 0.8KW

main28120-89101i3K..KM10197105-197511

12V 0.8KW

sub28120-36040

28121COIL, STARTER FIELD

main28121-22011i3K#,4KJ..KM1#¥6,400197105-197909

12V 0.6KW

sub28121-22012¥6,200

main28121-36040i3KJ,4KJ..KM1#¥7,500197511-197909

12V 0.8KW

main28121-40014i3K..KM10¥5,900197105-197511

12V 0.8KW

sub28121-36040¥7,500

28123CORE, STARTER POLE

main28123-10011i3K#..KM10197105-197802

12V 0.6KW

main28123-10011i4KJ..KM11197802-197909

12V 0.6KW

main28123-40012i3K#..KM10197105-197802

12V 0.8KW

main28123-41020i4KJ..KM11197802-197909

12V 0.8KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-21011i3K#,4KJ..KM1#¥1,840197105-197909

28130BBOLT(FOR STARTER COMMUTATOR END FRAME SETTING)

main90099-04269i3K#,4KJ..KM1#197404-197909

0.6KW

main90099-04816i3K..KM10197105-197404

0.6KW

main90099-04817i3K..KM10197105-197404

0.8KW

sub90099-04884

main90099-04884i3K#,4KJ..KM1#197404-197909

0.8KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i3K#,4KJ..KM1#¥330197105-197909

STD

main90099-10039i3K#,4KJ..KM1#¥300197105-197909

U/S 0.3

main90099-10040i3K#,4KJ..KM1#¥300197105-197909

U/S 0.5

28132COVER, STARTER BEARING(FOR DRIVE HOUSING)

main28166-41011i3K#,4KJ..KM1#197105-197909

28133COVER, BEARING(FOR END FRAME)

main28132-41011i3K#,4KJ..KM1#197105-197909

28133SSCREW, W/WASHER(FOR BEARING COVER SETTING)

main90099-00879i4KJ..KM11197802-197909

main90099-00879i3K..KM10197404-197511

0.6KW

main90099-00902i3KJ..KM10197511-197802

main90099-00902i3K..KM10197404-197511

0.8KW

main93219-14008i3K..KM10¥130197105-197404

28136PLATE, STARTER LOCK

main28136-41011i3K#,4KJ..KM1#197105-197909

28138RUBBER(FOR STARTER BEARING COVER)

main28138-41011i3K#,4KJ..KM1#197105-197909

28140HOLDER ASSY, STARTER BRUSH

main28140-22011i3K#..KM10197105-197802

12V 0.6KW

main28140-22011i4KJ..KM11197802-197909

12V 0.6KW

main28140-41012i3K#..KM10197105-197802

12V 0.8KW

sub28140-41013

main28140-41013i4KJ..KM11197802-197909

12V 0.8KW

28142BRUSH, STARTER

main28142-10011i4KJ..KM11¥680197802-197909

12V 0.6KW

main28142-10011i3K..KM10¥680197105-197511

12V 0.6KW

main28142-10021i3KJ..KM10¥730197511-197802

12V 0.6KW

sub28142-10011¥680

main28142-21010i4KJ..KM11¥750197802-197909

12V 0.8KW

main28142-21010i3K#..KM10¥750197105-197802

12V 0.8KW

28143SPRING, STARTER BRUSH

main28143-40010i3K#..KM10197105-197802

sub28143-40040

main28143-40040i4KJ..KM11197802-197909

28150SWITCH ASSY, MAGNET STARTER

main28150-22011i3K..KM10¥9,200197105-197404

main28150-22011i3K..KM10¥9,200197404-197511

12V 0.6KW

main28150-24010i3K..KM10197404-197511

12V 0.8KW

main28150-24060i4KJ..KM11¥9,100197802-197909

12V 0.6KW

sub28150-24061¥8,600

main28150-24061i4KJ..KM11¥8,600197802-197909

12V 0.8KW

main28150-25010i3KJ..KM10¥8,600197511-197802

12V 0.6KW

sub28150-25030¥10,900

main28150-25032i3KJ..KM10¥8,700197511-197802

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-22011i3K#..KM10¥17,600197105-197802

12V 0.6KW

main28160-22011i4KJ..KM11¥17,600197802-197909

12V 0.6KW

main28160-22021i3K..KM10¥16,200197105-197511

12V 0.8KW

main28160-22021i4KJ..KM11¥16,200197802-197909

12V 0.8KW

main28160-40014i3KJ..KM10¥17,400197511-197802

12V 0.8KW

28162SPRING, STARTER BRAKE

main28162-41011i3K#,4KJ..KM1#197105-197909

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i3K#,4KJ..KM1#197105-197909

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i3K#,4KJ..KM1#197105-197909

28246COVER, MAGNET SWITCH

main28246-25010i3KJ..KM10197511-197802

9009220604

main90092-20604

9009331202

main90093-31202

9009900102

main90099-00102

9009900111

main90099-00111

9009901090

main90099-01090

9009901140

main90099-01140

9009902092

main90099-02092

9009902169

main90099-02169

9009905809

main90099-05809

9161141035

main91611-41035¥160

9162140840

main91621-40840¥170

9411040800

main94110-40800¥120

9451100400

main94511-00400¥200

9451100500

main94511-00500¥170

9451100600

main94511-00600¥120

9451100800

main94511-00800¥100

9454200800

main94542-00800¥170

45 parts on this diagram · 2 diagrams in section
