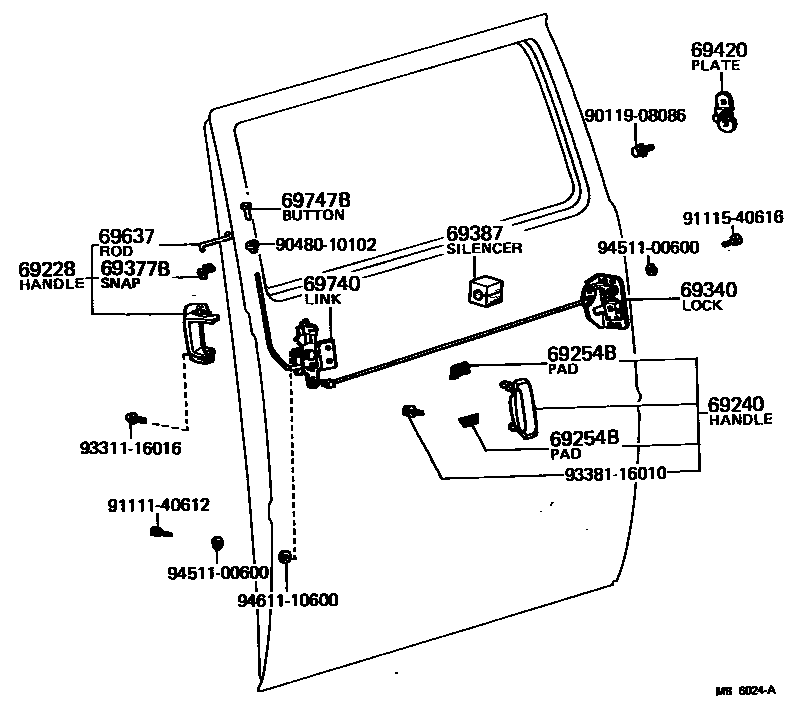

Toyota LITEACE — REAR DOOR LOCK & HANDLE

69228HANDLE, REAR DOOR INSIDE, LH

main69740-95700iKM1#..HRF,SRF197105-197909

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-95790iKM1#..HRF,SRF¥4,370197105-197909

69254BPAD, REAR DOOR OUTSIDE HANDLE, NO.2 LH

main69246-95700iKM1#..HRF,SRF¥310197105-197909

UPPER

main69247-95700iKM1#..HRF,SRF197105-197909

LOWER

69340LOCK ASSY, REAR DOOR, LH

main69340-95700iKM1#..HRF,SRF¥8,000197105-197909

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69377-30020iKM1#..HRF,SRF¥270197105-197909

69387SILENCER, DOOR LOCK REMOTE CONTROL LINK

main69388-95660iKM1#..HRF,SRF197106-197909

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69440-95700iKM1#..HRF,SRF¥1,620197105-197909

69637ROD, SLIDE DOOR INSIDE HANDLE LOCK REMOTE CONTROL

main69637-95700iKM1#..HRF,SRF197105-197909

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69630-95700iKM10..HRF,SRF¥5,100197105-197610

sub69630-95701

main69630-95701iKM1#..V197610-197909

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69747-20020iKM1#..V¥250197105-197909

9011908086

main90119-08086¥630

9048010102

main90480-10102¥190

9111140612

main91111-40612¥170

9111540616

main91115-40616

9331116016

main93311-16016¥120

9338116010

main93381-16010¥110

9451100600

main94511-00600¥120

9461110600

main94611-10600¥90

18 parts on this diagram · 1 diagram in section
