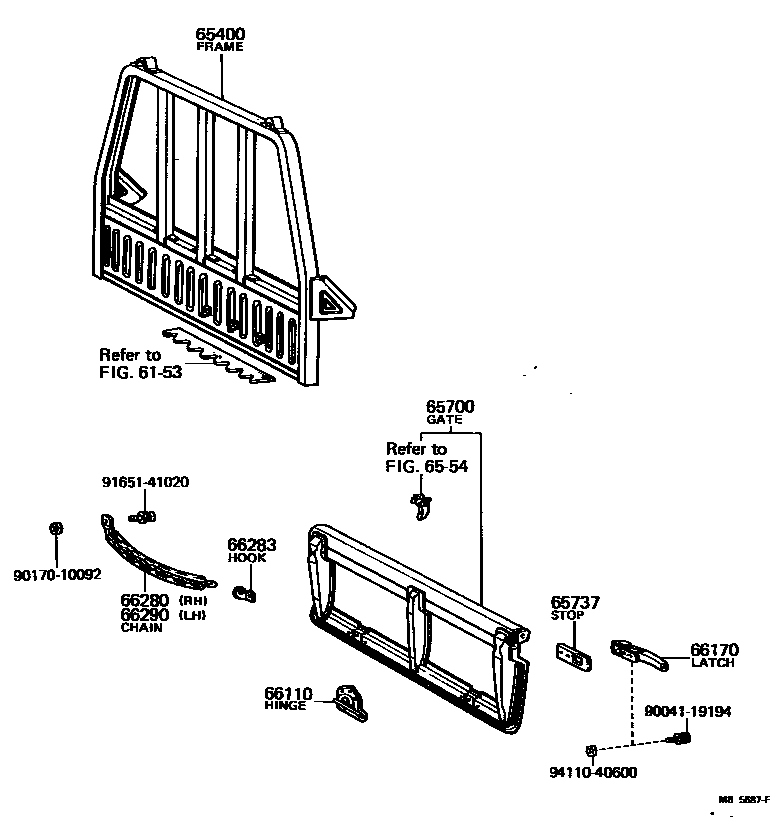

Toyota LITEACE — REAR BODY GUARD FRAME & TAIL GATE

0001 1 0002 1

6153

65400FRAME ASSY, REAR BODY GUARD

main65400-87401iKM10..T1197105-197408

main65400-87402iKM10..T3197105-197909

6554

65700GATE ASSY, REAR BODY TAIL

main65700-87401iKM10..T1¥49,300197105-197408

sub65700-87403

sub91651-41020¥90

main65700-87402iKM10..T3¥45,700197105-197610

sub65700-87404

main65700-87404iKM1#..T3197610-197909

65737STOP, TAIL GATE

main65737-87401iKM10..T1¥380197105-197408

66110HINGE ASSY, TAIL GATE

main66110-87401iKM10..T1197105-197408

66170LATCH ASSY, REAR BODY TAIL GATE

main66170-87401iKM10..T1¥2,890197105-197408

66280CHAIN ASSY, TAIL GATE, RH

main66280-87401iKM1#..T3¥3,510197610-197810

sub66280-87402

main66280-87402iKM11..T3197810-197909

66283HOOK, TAIL GATE CHAIN SIDE

main66287-87401iKM1#..T3197610-197909

RH.

main66288-87401iKM1#..T3197610-197909

LH.

66290CHAIN ASSY, TAIL GATE, LH

main66280-87401iKM1#..T3¥3,510197610-197810

sub66280-87402

main66280-87402iKM11..T3197810-197909

9004119194

main90041-19194

9017010092

main90170-10092¥180

9165141020

main91651-41020¥90

9411040600

main94110-40600¥80

14 parts on this diagram · 2 diagrams in section
