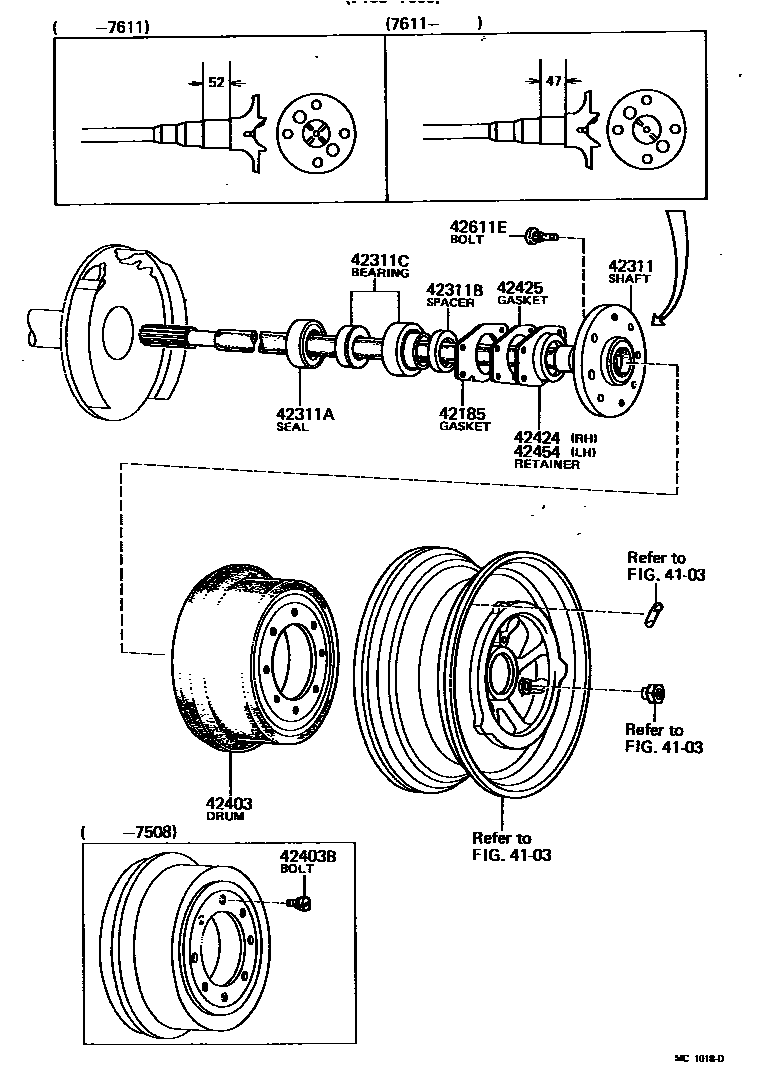

Toyota LITEACE — REAR AXLE SHAFT & HUB

4103

42185GASKET, REAR AXLE HOUSING END

main42185-21010iKM10197105-197308

T=0.3

main42185-22020iKM1#¥320197308-197909

T=0.3

main42186-21010iKM10197105-197308

T=0.5

main42187-21010iKM10197105-197308

T=0.6

42311SHAFT, REAR AXLE

main42311-21010iKM10¥17,500197105-197208

sub42311-21011

main42311-21011iKM10197208-197312

sub42311-21014¥22,200

sub90369-35003

main42311-21012iKM10¥22,200197312-197611

sub42311-21013¥22,600

sub90369-35003

main42311-21013iKM1#¥22,600197611-197909

sub42311-21014¥22,200

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-52059iKM1#¥320197105-197909

42311BSPACER(FOR REAR AXLE SHAFT BEARING)

main90560-35153iKM10¥250197105-197611

42311CBEARING(FOR REAR AXLE SHAFT)

main04421-30010iKM10¥3,620197105-197611

sub04421-30011¥3,710

main04421-30011iKM1#¥3,710197611-197909

sub04421-30012¥3,700

42403DRUM SUB-ASSY, REAR BRAKE

main42403-22020iKM10197105-197312

sub42403-22021¥9,500

main42403-22021iKM1#¥9,500197312-197909

42403BBOLT, SET (FOR REAR BRAKE DRUM SETTING)

main90113-10007iKM10¥110197303-197508

main90113-10026iKM10¥170197105-197303

42424RETAINER, REAR AXLE BEARING, OUTER, RH

main42424-21010iKM1#¥600197105-197909

42425GASKET, REAR AXLE BEARING RETAINER

main42425-21010iKM1#¥230197105-197909

42454RETAINER, REAR AXLE BEARING, OUTER, LH

main42454-21010iKM1#¥600197105-197909

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02021iKM10¥390197105-197703

12-1.5PX38-24

sub90942-02035¥240

main90942-02035iKM1#¥240197703-197909

12-1.5PX36-23.5

sub90942-02047¥230

12 parts on this diagram · 1 diagram in section
