Toyota LITEACE — RADIATOR & WATER OUTLET

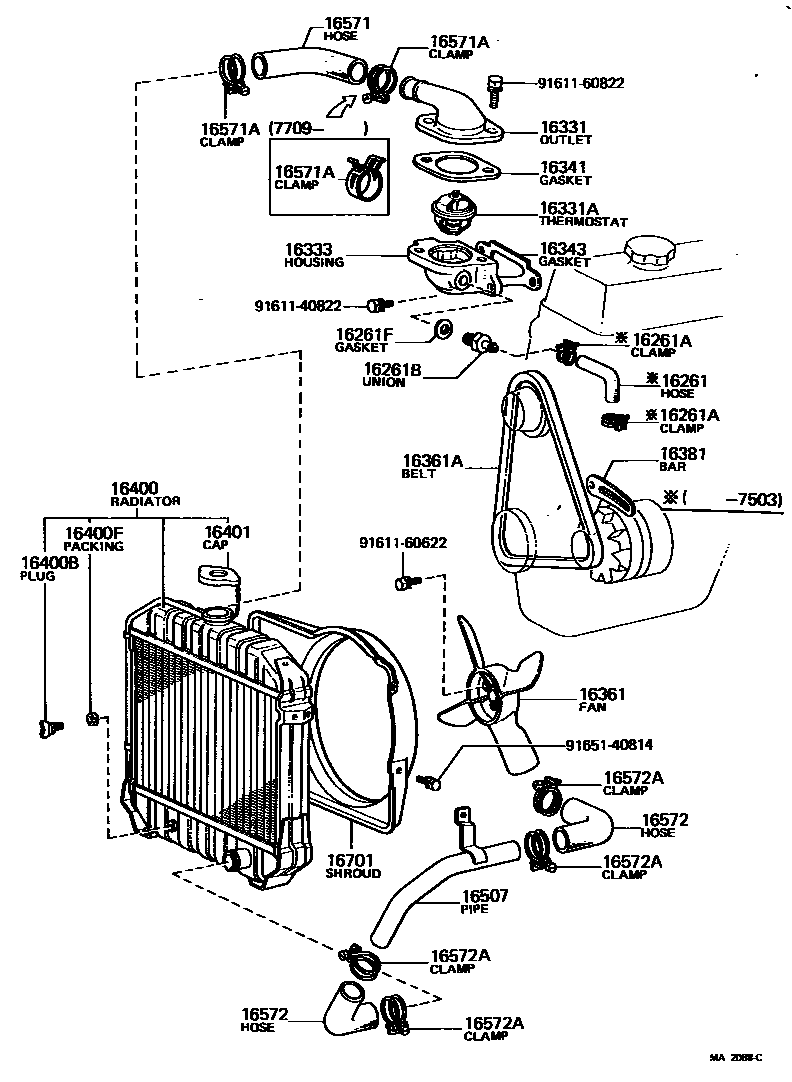

Parts diagram
16261HOSE, WATER BY-PASS
main16261-22011i¥600197105-197909
L/HEATER
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
main90099-35219i197105-197107
L/HEATER
sub96112-10220
main96112-10220i197107-197909
L/HEATER
16261BUNION(FOR WATER BY-PASS HOSE)
main90404-16162i¥210197105-197909
L/HEATER
main90404-16197i¥490197105-197802
W/HEATER
16261FGASKET(FOR WATER BY-PASS HOSE)
main90430-16003i¥190197503-197909
main90430-16044i¥160197105-197503
16331OUTLET, WATER
main16331-24010i¥1,260197105-197709
sub16331-24011¥1,620
main16331-24011i¥1,620197709-197909
16331ATHERMOSTAT
main90916-03020i¥960197203-197909
WAX 76.5-90 FUJI-THOMSON
main90916-03021i197203-197404
WAX 75-85 KUZEH
sub90916-03038¥960
main90916-03024i¥940197105-197203
WAX 75-85 KUZEH
main90916-03025i197105-197203
WAX 76.5-90 FUJI-THOMSON
main90916-03038i¥960197404-197909
WAX 82-95 KUZEH
sub90916-03083¥1,020
16333HOUSING, WATER OUTLET
main16333-22020i¥2,000197105-197511
sub16333-22021¥2,550
main16333-22021i¥2,550197802-197909
main16333-24030i197511-197802
16341GASKET, WATER OUTLET
main16341-13010i¥180197803-197812
sub16341-13011¥370
main16341-13011i¥370197812-197909
sub16341-13040¥320
main16341-22010i¥180197105-197803
sub16341-13010¥180
16343GASKET, WATER OUTLET HOUSING
main16343-22010i¥500197105-197909
sub16343-22011¥520
16361FAN
main16361-12010i197404-197802
4 BLADES
main16361-22020i¥2,600197105-197107
4 BLADES
sub16361-23020¥2,980
sub91611-60620¥90
main16361-23020i¥2,980197107-197404
4 BLADES
main16361-24041i¥4,000197802-197909
4 BLADES
16361ABELT, V(FOR FAN & ALTERNATOR)
main99321-00810i¥720197808-197909
main99521-10808i¥720197404-197808
sub99321-00805
main99522-10808i¥740197105-197404
sub99322-00805
16381BAR, FAN BELT ADJUSTING
main16381-22010i¥650197105-197212
sub16381-24011¥920
main16381-24011i¥920197212-197909
16400RADIATOR ASSY
main16400-13040i197802-197909
main16400-24050i¥39,500197105-197309
sub16400-24051
main16400-24051i197309-197802
16400BPLUG, RADIATOR DRAIN COCK
main16417-24051i¥360197105-197802
main16417-24200i¥390197802-197909
16400FPACKING(FOR RADIATOR DRAIN COCK)
main16418-24051i¥190197105-197802
main16418-24200i¥320197802-197909
16401CAP SUB-ASSY, RADIATOR
main16401-23070i¥1,570197309-197909
sub16401-41021¥1,290
main16401-40120i¥980197105-197309
16507PIPE SUB-ASSY, RADIATOR
main16577-13010i197802-197909
main16577-24010i¥3,990197105-197201
sub16577-24011¥3,990
main16577-24011i¥3,990197201-197802
sub16577-24021¥3,990
16571HOSE, RADIATOR, INLET
main16571-13020i¥1,800197802-197909
main90916-01062i¥1,800197105-197709
sub90916-01155¥1,800
main90916-01155i¥1,800197709-197802
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
main90460-43005i¥170197105-197404
sub96111-10430¥120
main90467-37001i¥330197709-197909
PUMP SIDE
sub90467-37003¥280
main96111-10430i¥120197404-197709
main96111-10430i¥120197709-197909
RADIATOR SIDE
16572HOSE, RADIATOR, OUTLET
main16572-13010i¥1,840197802-197909
PUMP SIDE
main16573-13010i¥1,800197802-197909
RADIATOR SIDE
main90916-01008i¥1,800197105-197309
PUMP SIDE
main90916-01102i197105-197309
RADIATOR SIDE
main90916-01133i¥1,420197309-197802
PUMP SIDE
main90916-01134i¥1,420197309-197802
RADIATOR SIDE
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
main90460-43005i¥170197105-197309
sub96111-10430¥120
main90460-47036i¥220197309-197909
16701SHROUD SUB-ASSY, FAN
main16711-13030i197802-197909
main16711-24020i197105-197802
9161140822
main91611-40822¥170
9161160622
main91611-60622¥200
9161160822
main91611-60822¥170
9165140814
main91651-40814¥180

26 parts on this diagram · 1 diagram in section
