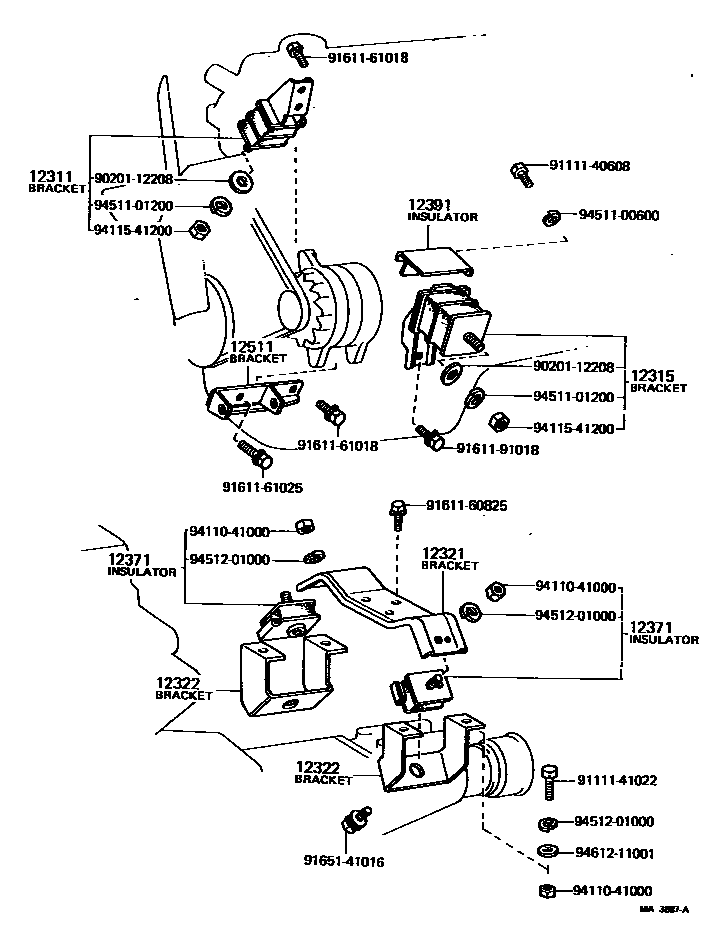

Toyota LITEACE — MOUNTING

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12301-29016i3K..KM10¥2,860197105-197405

sub12301-29018¥2,860

main12301-29018i3K#,4KJ..KM1#¥2,860197405-197909

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12302-29016i3K..KM10¥2,250197105-197405

main12302-29017i3K#..KM10¥2,550197405-197705

main12302-29018i3KJ,4KJ..KM1#¥3,230197705-197909

sub12302-22023¥3,240

sub90201-12208¥190

sub94115-41200¥300

sub94511-01200¥200

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-24010i3K#,4KJ..KM1#¥2,660197105-197909

sub12321-24011

12322BRACKET, ENGINE MOUNTING, REAR NO.2

main12322-24010i3K#..KM10197105-197708

RH

main12322-24011i3KJ,4KJ..KM1#197708-197909

RH

main12326-24010i3K#..KM10197105-197708

LH

main12326-24011i3KJ,4KJ..KM1#197708-197909

LH

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-49015i3K#,4KJ..KM1#¥2,570197105-197909

12391INSULATOR, ENGINE MOUNTING FRONT, HEAT, RH

main12391-22010i3K#,4KJ..KM1#¥400197105-197909

12511BRACKET, ALTERNATOR, NO.1

main12511-22012i3K..KM10197105-197209

main12511-22013i3K..KM10197209-197212

main12511-22014i3K#..KM10197212-197610

main12511-22015i3KJ,4KJ..KM1#¥4,680197610-197909

sub12511-22016¥4,280

sub91611-61025¥240

9020112208

main90201-12208¥190

9111140608

main91111-40608

9111141022

main91111-41022¥220

9161160825

main91611-60825¥140

9161161018

main91611-61018¥130

9161161025

main91611-61025¥240

9161191018

main91611-91018

9165141016

main91651-41016¥200

9411041000

main94110-41000¥160

9411541200

main94115-41200¥300

9451100600

main94511-00600¥120

9451101200

main94511-01200¥200

9451201000

main94512-01000¥90

9461211001

main94612-11001¥60

21 parts on this diagram · 1 diagram in section
