Toyota LITEACE — MIRROR

87810MIRROR ASSY, INNER REAR VIEW

main87810-95700iKM1#¥5,300197105-197909

87810BBULB, INNER REAR VIEW MIRROR LAMP

main99132-13050iKM1#¥150197105-197909

12V 5W,12V 5W

87827ABSORBER, INNER REAR VIEW MIRROR

main87828-95010iKM10..HRF197711-197712

87831SPACER (FOR INSIDE MIRROR)

main87831-95010iKM10¥300197711-197712

87834COVER, INNER REAR VIEW MIRROR STAY HOLDER

main87814-12011iKM1#197105-197909

87910MIRROR ASSY, OUTER REAR VIEW, RH

main87910-95790iKM10¥4,450197105-197802

sub87910-95791¥4,450

main87910-95791iKM11¥4,450197802-197909

87927PACKING, REAR VIEW OUTSIDE MIRROR STAY

main87925-95700iKM10197105-197111

main87925-95700iKM10197111-197601

FOR RH.

main87926-95700iKM10197111-197309

FOR LH.

main87926-95701iKM1#197309-197909

FOR LH.

87940MIRROR ASSY, OUTER REAR VIEW, LH

main87920-95790iKM10197105-197111

main87920-95791iKM10197111-197309

main87920-95792iKM10¥8,700197309-197802

sub87920-95793¥8,700

main87920-95793iKM11¥8,700197802-197909

9095001038

main90950-01038¥220

9323066016

main93230-66016¥200

9323915012

main93239-15012¥120

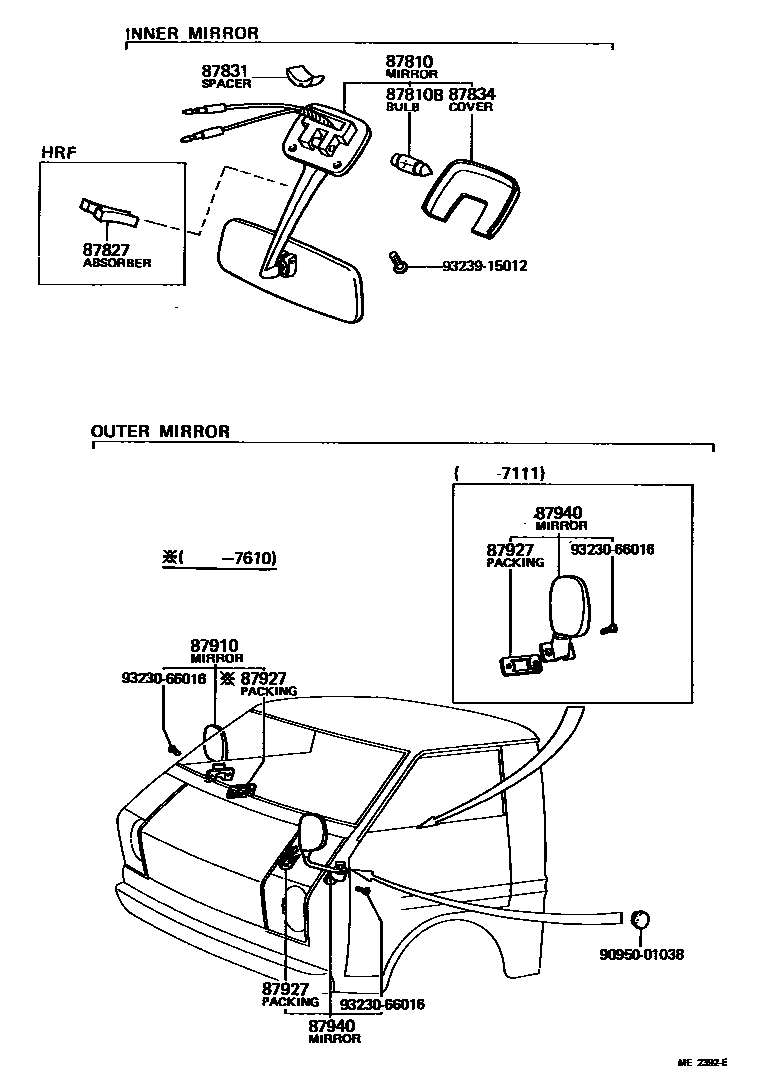

11 parts on this diagram · 1 diagram in section
