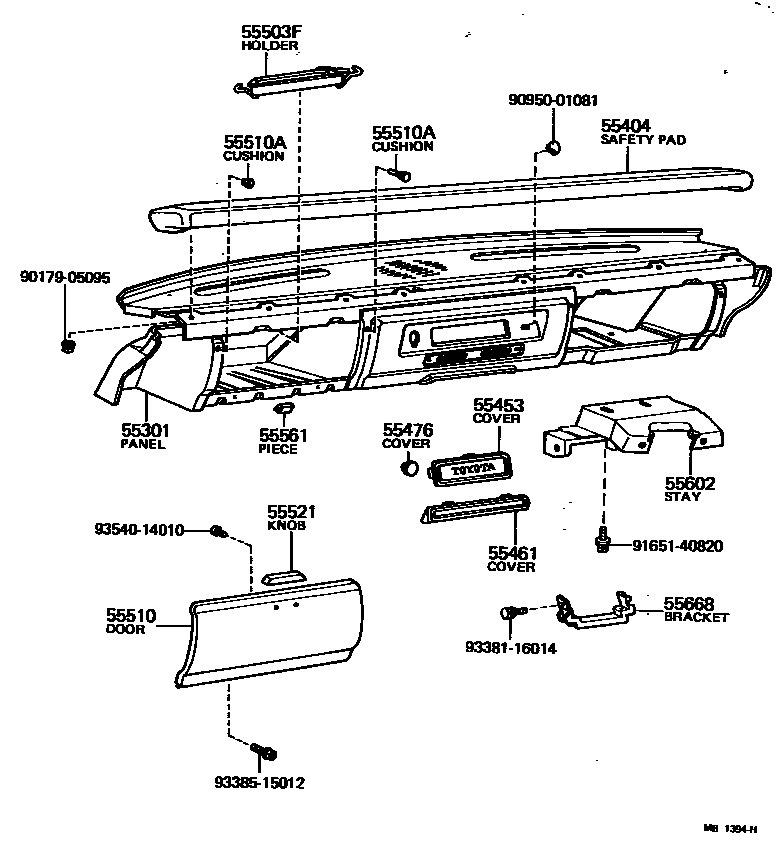

Toyota LITEACE — INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55001-95700iKM10197105-197309

main55001-95702iKM10197309-197511

sub55001-95704

sub78310-95702

main55001-95704iKM10197511-197610

main55001-95706iKM1#197610-197909

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55404-95700iKM10¥13,100197105-197610

main55404-95700-01iKM1#197610-197909

BLACK,BLACK

sub55404-95700¥13,100

55453COVER, RADIO TUNER OPENING

main55471-95700iKM1#197105-197909

55461COVER, HEATER CONTROL HOLE

main55461-95700iKM10197105-197802

55476COVER, CIGARETTE LIGHTER HOLE

main90950-01073iKM10¥180197105-197802

55503FHOLDER, CARD(FOR GLOVE COMPARTMENT)

main55505-95700iKM1#¥640197511-197909

55510DOOR ASSY, GLOVE COMPARTMENT

main55501-95700iKM10197105-197309

main55501-95701iKM1#197309-197909

55510ACUSHION(FOR GLOVE COMPARTMENT DOOR)

main90541-06004iKM1#¥190197105-197909

FOR RH. L=29

main90541-06076iKM1#¥230197105-197909

FOR LH. L=9

sub90541-06056¥200

55521KNOB, GLOVE COMPARTMENT DOOR

main55521-95260iKM1#¥190197105-197909

55561PIECE, GLOVE COMPARTMENT DOOR SLIDE

main55545-95700iKM1#197105-197909

55602STAY SUB-ASSY, STEERING COLUMN, UPPER

main55302-95700iKM10197105-197307

main55302-95701iKM10197307-197610

main55302-95702iKM1#197610-197909

55668BRACKET, CONNECTOR SUPPORT

main55668-95700iKM1#197610-197909

9017905095

main90179-05095¥240

9095001081

main90950-01081¥170

9165140820

main91651-40820¥90

9338116014

main93381-16014¥140

9338515012

main93385-15012¥160

9354014010

main93540-14010¥100

18 parts on this diagram · 1 diagram in section
