Toyota LITEACE — IGNITION COIL & SPARK PLUG / GLOW PLUG

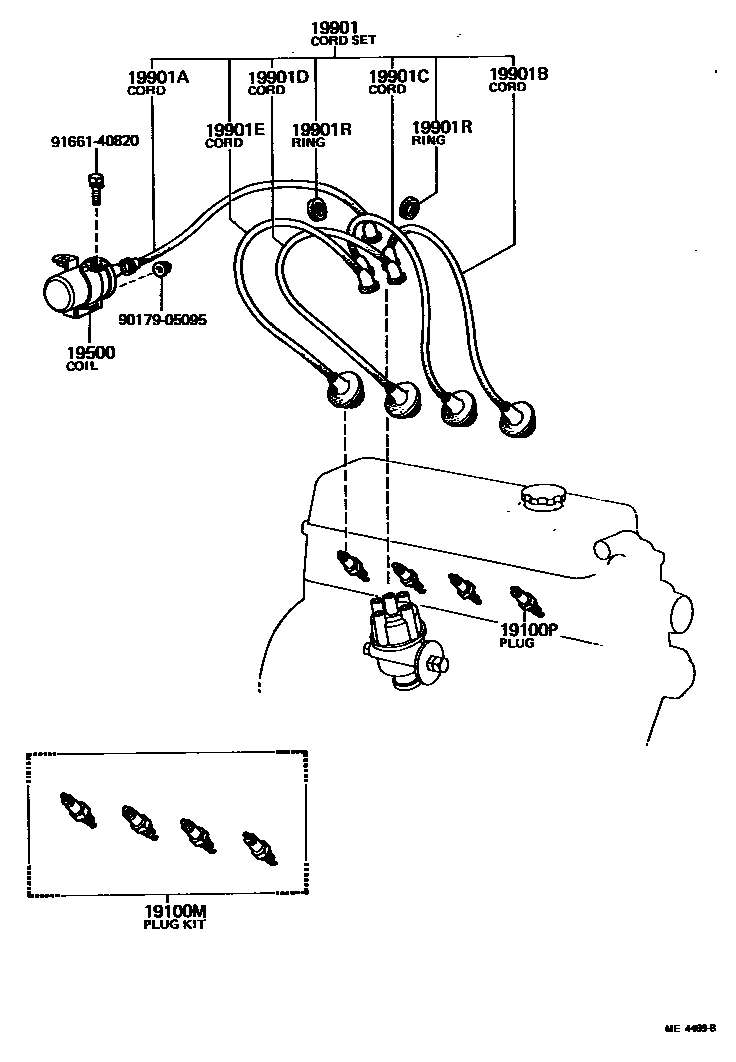

Parts diagram
19100MPLUG KIT, SPARK
main04195-34010i197208-197511
W16EP
sub90919-01027¥410
main04195-34020i197105-197208
W20EP
19100PPLUG, SPARK
main90919-01027i¥410197208-197511
W16EP OR W16EX-U,W16EP
sub90919-01059¥410
main90919-01059i¥410197511-197909
W16EX-U,W16EX-U
sub90919-01064¥450
main90999-09001i¥410197105-197208
W20EP
sub90919-01083¥410
19500COIL ASSY, IGNITION
main90919-02020i197105-197304
main90919-02044i¥9,800197304-197706
sub90919-02100
main90919-02100i197706-197909
sub90919-02126¥9,700
19901CORD SET, COIL & SPARK, W/RESISTIVE
main90919-21001i¥3,990197105-197307
sub90919-21077¥4,000
main90919-21077i¥4,000197307-197909
19901ACORD, COIL RESISTIVE
main90919-13045i¥880197507-197909
main99231-20220i¥870197105-197507
sub90919-13045¥880
19901BCORD, SPARK PLUG RESISTIVE, NO.1
main90919-12063i¥870197105-197307
sub90919-12085¥870
main90919-12085i¥870197307-197802
main90919-12228i¥1,180197802-197909
sub90919-12481¥1,200
19901CCORD, SPARK PLUG RESISTIVE, NO.2
main90909-12228i197810-197909
main90919-12063i¥870197105-197307
sub90919-12085¥870
main90919-12085i¥870197307-197802
main90919-12229i¥1,170197802-197810
sub90919-12228¥1,180
19901DCORD, SPARK PLUG RESISTIVE, NO.3
main90919-12063i¥870197105-197307
sub90919-12085¥870
main90919-12085i¥870197307-197802
main90919-12228i¥1,180197810-197909
sub90919-12481¥1,200
main90919-12229i¥1,170197802-197810
sub90919-12228¥1,180
19901ECORD, SPARK PLUG RESISTIVE, NO.4
main90919-12063i¥870197105-197307
sub90919-12085¥870
main90919-12085i¥870197307-197802
main90919-12228i¥1,180197802-197909
sub90919-12481¥1,200
19901RRING, RUBBER SPARK PLUG RESISTIVE CORD
main90202-11067i¥170197105-197909
9017905095
main90179-05095¥240
9166140820
main91661-40820¥130

12 parts on this diagram · 1 diagram in section
