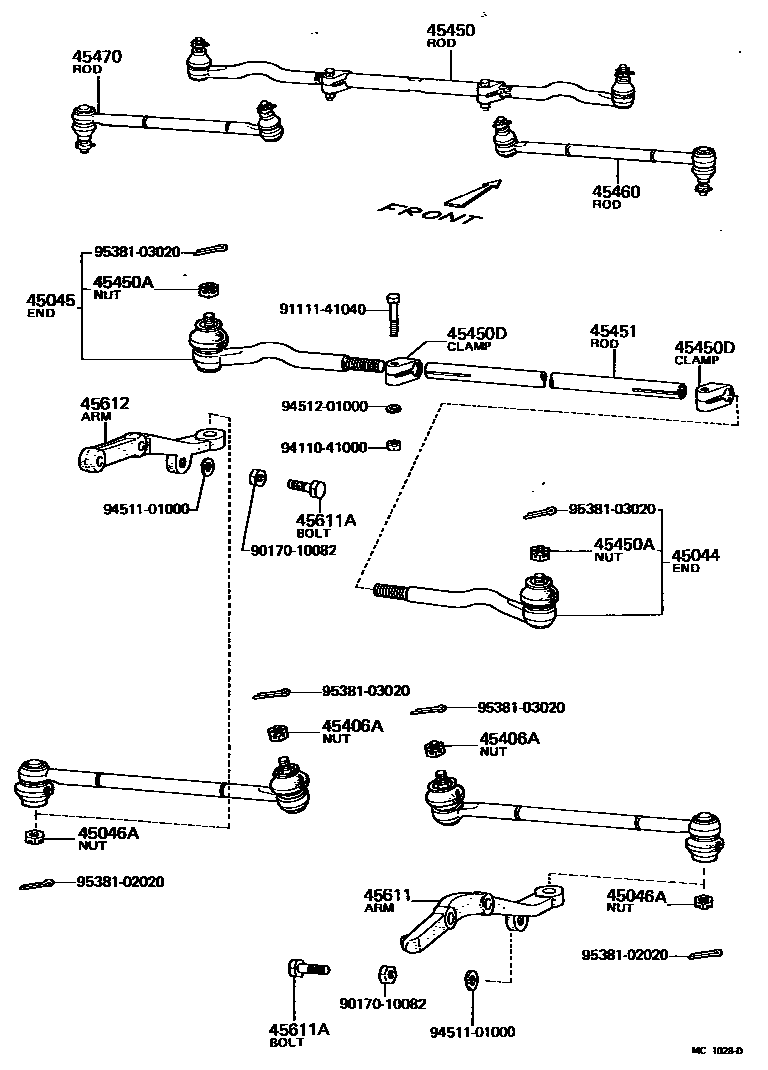

Toyota LITEACE — FRONT STEERING GEAR & LINK
45044END SUB-ASSY, STEERING RELAY ROD, RH
45045END SUB-ASSY, STEERING RELAY ROD, LH
45046ANUT, CASTLE(FOR TIE ROD END)
45406ANUT, CASTLE(FOR TIE ROD)
45450ROD ASSY, STEERING RELAY
45450ANUT, CASTLE(FOR RELAY ROD)
45450DCLAMP, STEERING RELAY ROD END
45451ROD, STEERING RELAY
45460ROD ASSY, TIE, RH
45470ROD ASSY, TIE, LH
45611ARM, STEERING KNUCKLE, RH
45611ABOLT, KNUCKLE STOPPER
10-1.25PX50-21
45612ARM, STEERING KNUCKLE, LH
9017010082
9111141040
main91111-41040
9411041000
9451101000
9451201000
9538102020
9538103020
20 parts on this diagram · 2 diagrams in section
