Toyota LITEACE — FRONT DOOR PANEL & GLASS

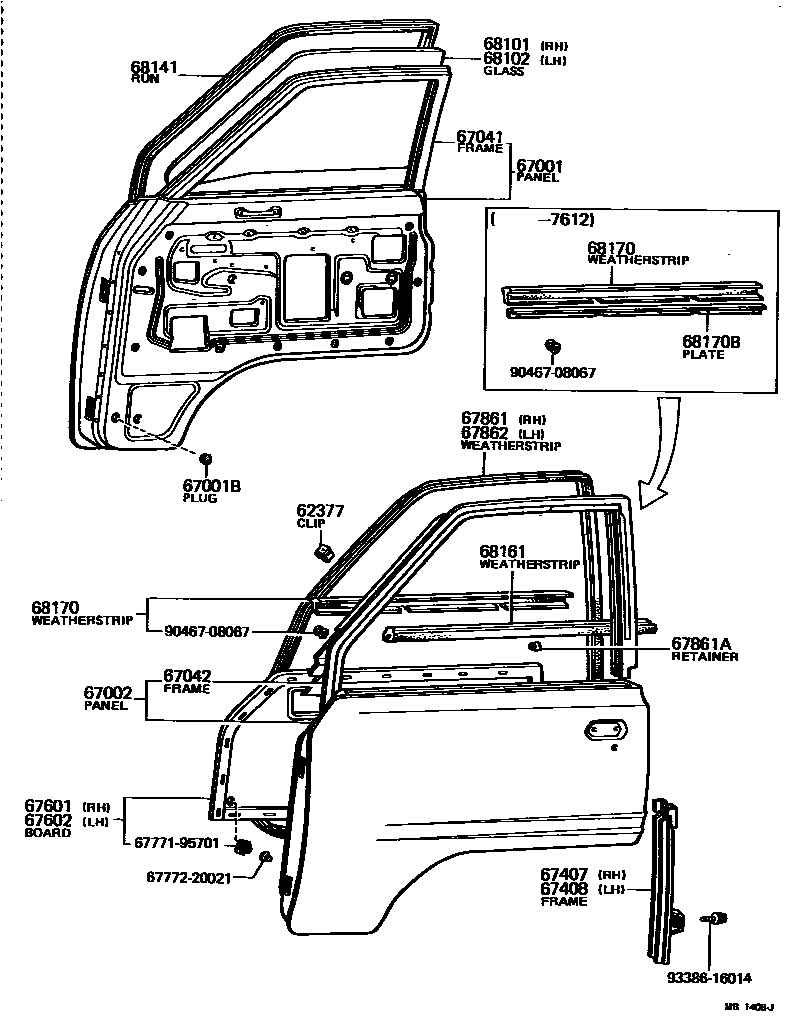

Parts diagram
62377CLIP, DOOR WINDOW GLASS
main62377-95D00i197809-197909
67001PANEL SUB-ASSY, FRONT DOOR, RH
main67001-95700i¥50,100197105-197806
sub67001-95701¥55,200
main67001-95701i¥55,200197806-197808
sub67001-95D01
main67001-95D01i197808-197909
67001BPLUG, HOLE(FOR FRONT DOOR PANEL)
main90950-01076i¥240197105-197909
OD=25
67002PANEL SUB-ASSY, FRONT DOOR, LH
main67002-95700i197105-197111
main67002-95701i¥55,200197111-197806
sub67002-95702¥55,200
main67002-95702i¥55,200197806-197808
sub67002-95D01
main67002-95D01i197808-197909
67041FRAME SUB-ASSY, FRONT DOOR WINDOW, RH
main67410-95700i197105-197909
67042FRAME SUB-ASSY, FRONT DOOR WINDOW, LH
main67420-95700i197105-197909
67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
main67407-95700i197105-197909
67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
main67408-95700i197105-197909
67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH
main67610-95700-01i197610-197909
BLACK,BLACK
sub67610-95700
sub67610-95702¥5,500
main67610-95700-04i197105-197610
BLUE,BLUE
sub67610-95700
sub67610-95702¥5,500
main67610-95700-06i197105-197408
BROWN,BROWN
sub67610-95700
sub67610-95702¥5,500
67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH
main67620-95700-01i197610-197909
BLACK,BLACK
sub67620-95700¥4,330
main67620-95700-04i197105-197610
BLUE,BLUE
sub67620-95700¥4,330
main67620-95700-06i197105-197408
BROWN,BROWN
sub67620-95700¥4,330
67861WEATHERSTRIP, FRONT DOOR, RH
main67861-95700i197105-197909
67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)
main68174-95701i¥200197105-197909
67862WEATHERSTRIP, FRONT DOOR, LH
main67862-95700i¥6,500197105-197909
68101GLASS SUB-ASSY, FRONT DOOR, RH
main68111-95700i¥10,700197105-197909
TP.T=4.0
sub68111-95701¥11,600
main68111-95701i¥11,600197105-197408
TN.TP.T=4.0
68102GLASS SUB-ASSY, FRONT DOOR, LH
main68112-95700i¥10,700197105-197909
TP.T=4.0
sub68112-95701¥11,600
main68112-95701i¥11,600197105-197408
TN.TP.T=4.0
68141RUN, FRONT DOOR GLASS
main68141-95700i¥4,520197105-197307
FOR GLASS T=3.0
sub68141-95701¥3,920
main68141-95701i¥3,920197307-197902
FOR GLASS T=4.0
sub68141-95702
main68141-95702i197902-197909
FOR GLASS T=4.0
68161WEATHERSTRIP, FRONT DOOR GLASS, OUTER
main68171-95701i¥2,500197105-197904
RH.
sub68171-95D00¥2,700
main68171-95D00i¥2,700197904-197909
RH.
sub68171-95D01¥2,500
main68172-95701i¥2,500197105-197904
LH.
sub68172-95D00¥2,700
main68172-95D00i¥2,700197904-197909
LH.
sub68172-95D01¥2,500
68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
main68150-95700i¥1,820197612-197904
RH.
sub68150-95D00¥1,820
main68150-95D00i¥1,820197904-197909
RH.
main68160-95700i¥1,700197612-197904
LH.
sub68160-95D00
main68160-95D00i197904-197909
LH.
main68161-95700i197105-197612
RH.
sub68150-95700¥1,820
main68162-95700i197105-197612
LH.
sub68160-95700¥1,700
68170BPLATE, FRONT DOOR WINDOW WEATHERSTRIP INNER, RH
main68163-95700i197105-197612
RH.
sub68150-95700¥1,820
main68164-95700i197105-197612
LH.
6777195701WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-95701¥240
6777220021WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-20021¥240
9046708067
main90467-08067¥220
9338616014
main93386-16014¥90

23 parts on this diagram · 1 diagram in section
