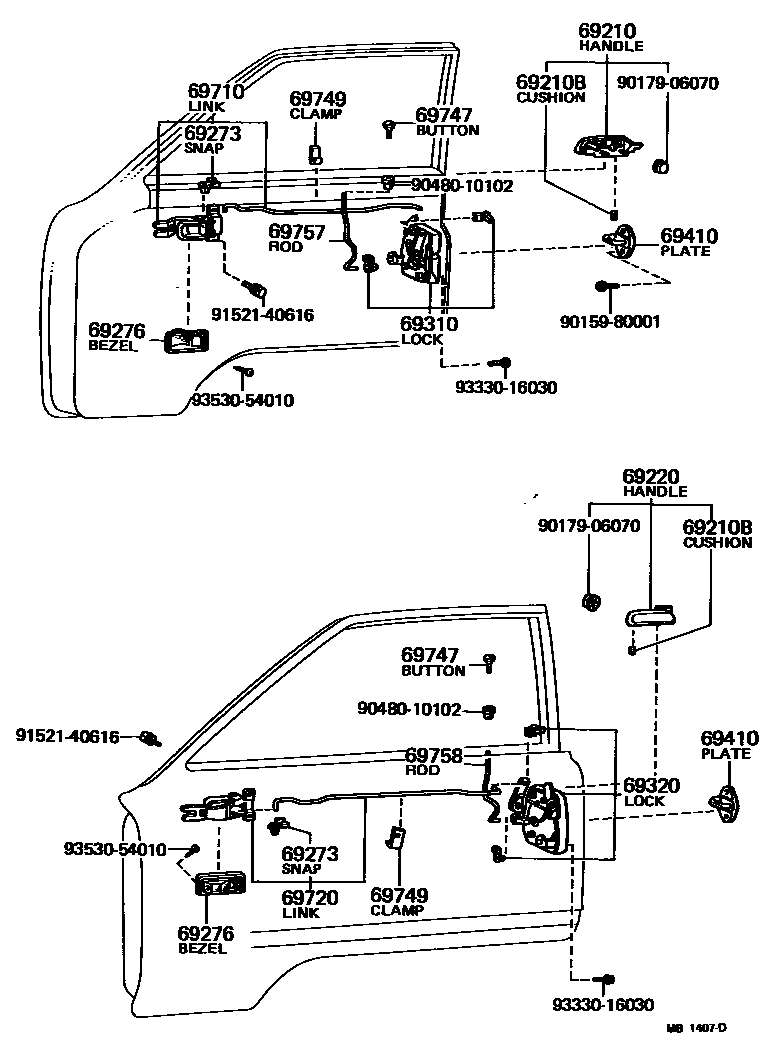

Toyota LITEACE — FRONT DOOR LOCK & HANDLE

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-95790iKM1#197105-197909

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main69239-95700iKM10¥280197105-197612

main69239-95700iKM1#¥280197612-197807

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-95790iKM1#197105-197909

69273SNAP, DOOR INSIDE HANDLE ROD

main69273-10010iKM10¥320197105-197512

main69279-12010iKM1#¥300197512-197909

69276BEZEL, FRONT DOOR INSIDE HANDLE

main69276-10012iKM1#¥470197105-197909

69310LOCK ASSY, FRONT DOOR, RH

main69310-95700iKM1#197105-197909

69320LOCK ASSY, FRONT DOOR, LH

main69320-95700iKM1#197105-197909

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-95700iKM1#197105-197909

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-95700iKM10¥3,020197105-197512

sub69710-95701

main69710-95701iKM1#197512-197909

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-95700iKM10¥3,030197011-197512

sub69720-95701

main69720-95701iKM1#197512-197909

69747BUTTON, DOOR LOCKING

main69747-20020iKM1#¥250197105-197909

69749CLAMP, FRONT DOOR LOCK LINK

main69749-12010iKM1#¥140197212-197909

main69749-22010iKM10¥200197105-197212

sub69749-12010¥140

69757ROD, FRONT DOOR LOCKING CONTROL, NO.2 RH

main69757-95700iKM1#197105-197909

69758ROD, FRONT DOOR LOCKING CONTROL, NO.2 LH

main69758-95700iKM1#197105-197909

9015980001

main90159-80001¥120

9017906070

main90179-06070¥180

9048010102

main90480-10102¥190

9152140616

main91521-40616¥170

9333016030

main93330-16030¥140

9353054010

main93530-54010¥70

20 parts on this diagram · 1 diagram in section
