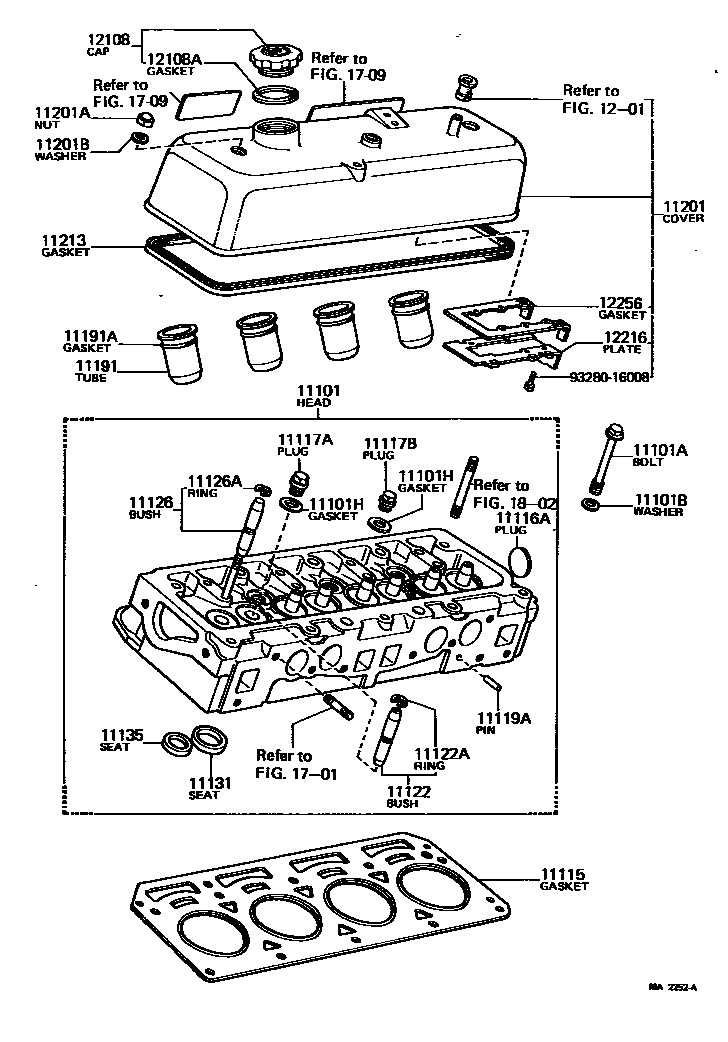

Toyota LITEACE — CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
ID=10.5,OD=21
ID=10.5,OD=21
11101HGASKET(FOR CYLINDER HEAD SCREW PLUG)
ID=15,OD=21
ID=18,OD=25
11115GASKET, CYLINDER HEAD
11116APLUG, TIGHT, NO.1
11117APLUG, W/HEAD TAPER SCREW, NO.1
L=11,OD=18,P=1.5
11117BPLUG, W/HEAD TAPER SCREW, NO.2
L=11,OD=15,P=1.5
11119APIN, STRAIGHT, NO.1
L=18,OD=8
11122BUSH, INTAKE VALVE GUIDE
STD,STD
O/S 0.05,O/S 0.05
11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)
11126BUSH, EXHAUST VALVE GUIDE
STD
O/S 0.05
11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)
11131SEAT, INTAKE VALVE
STD,STD
O/S 0.03,O/S 0.03
11135SEAT, EXHAUST VALVE
STD,STD
O/S 0.03,O/S 0.03
11191TUBE, SPARK PLUG
11191AGASKET(FOR SPARK PLUG TUBE)
11201ANUT, CAP(FOR CYLINDER HEAD COVER)
11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)
11213GASKET, CYLINDER HEAD COVER
1201
12108CAP SUB-ASSY, OIL FILLER
12108AGASKET(FOR OIL FILLER CAP)
12216PLATE, VENTILATION BAFFLE
12256GASKET, VENTILATION BAFFLE
1302
1701
1709
9328016008
main93280-16008
30 parts on this diagram · 3 diagrams in section
