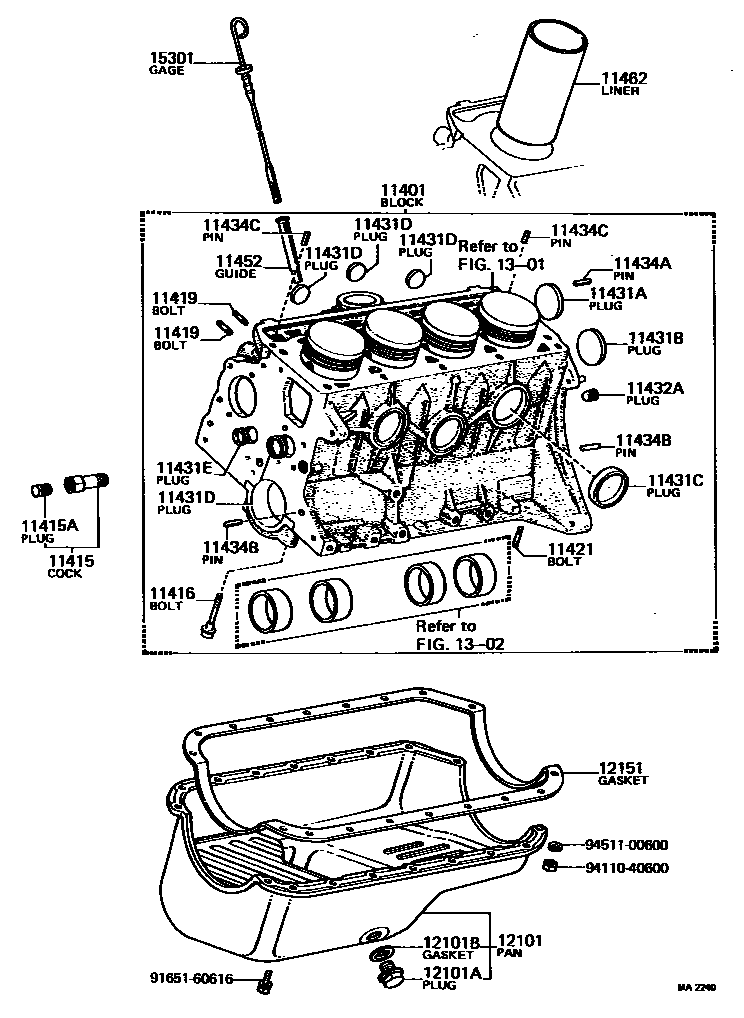

Toyota LITEACE — CYLINDER BLOCK
11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
11416BOLT(FOR CRANKSHAFT BEARING CAP SET)
11419BOLT, STUD(FOR FUEL PUMP)
L=34.5,S=9&16
L=42,S=10&16
11421BOLT, STUD(FOR OIL PAN)
L=26.4 S=12P12
L=23,S=9
4T
L=26,S=12&12
L=26,S=12&12
11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
OD=45
11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
OD=35
11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
OD=25
11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
11432APLUG, W/HEAD TAPER SCREW, NO.1
11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)
L=18,OD=8,L=18,OD=8
11434BPIN, STRAIGHT(FOR CLUTCH HOUSING SET)
L=18,OD=8,L=18,OD=8
L=22,OD=10,L=22,OD=10
11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)
L=23,OD=8,L=23,OD=8
L=18,OD=8,L=18,OD=8
11452GUIDE, OIL LEVEL GAGE
11462LINER, CYLINDER
O/S 4.00
12101APLUG(FOR OIL PAN DRAIN)
12101BGASKET(FOR OIL PAN DRAIN PLUG)
12151GASKET, OIL PAN
1301
1302
15301GAGE SUB-ASSY, OIL LEVEL
9165160616
9411040600
9451100600
27 parts on this diagram · 2 diagrams in section
