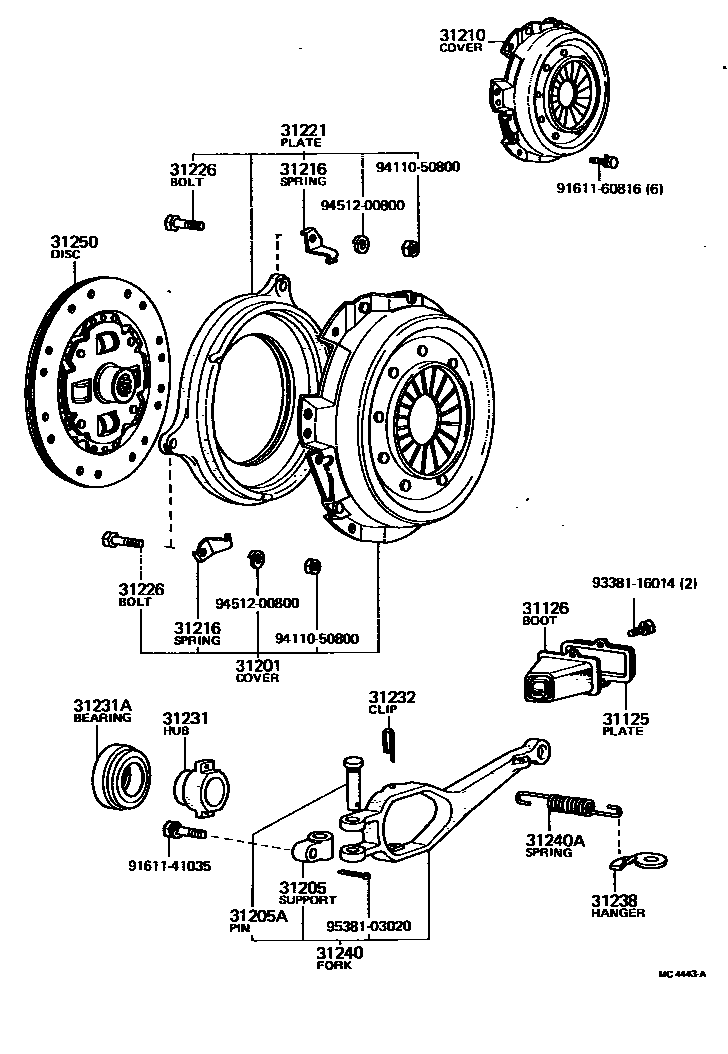

Toyota LITEACE — CLUTCH & RELEASE FORK

31125PLATE, RELEASE FORK BOOT

main31125-27010iKM1#197105-197909

31126BOOT, CLUTCH RELEASE FORK

main31126-27010iKM1#¥870197105-197909

31201COVER SUB-ASSY, CLUTCH

main31201-29025iKM10¥12,700197105-197307

sub31201-29065¥12,700

main31201-29065iKM10¥12,700197307-197312

sub31201-29066¥15,400

main31201-29066iKM1#¥15,400197312-197908

sub31201-29067¥13,900

main31201-29068iKM11¥14,900197908-197909

sub31201-29105

31205SUPPORT SUB-ASSY, RELEASE FORK

main31205-30010iKM1#¥680197105-197909

31205APIN, W/SERRATION(FOR RELEASE FORK SUPPORT)

main90245-10072iKM1#¥350197105-197909

31210COVER ASSY, CLUTCH

main31210-20070iKM10¥12,100197105-197307

sub31210-20090¥12,100

main31210-20090iKM10¥12,100197307-197312

sub31210-20160

main31210-20091iKM1#¥12,100197312-197908

sub31210-20092¥12,200

main31210-20092iKM11¥12,200197908-197909

sub31210-20093¥11,200

31216SPRING, CLUTCH RETRACTING

main31216-20020iKM1#¥330197105-197909

31221PLATE, CLUTCH PRESSURE

main31221-29015iKM1#¥4,580197105-197909

31226BOLT, CLUTCH PRESSURE PLATE

main90101-08350iKM1#¥170197105-197909

sub90101-08022¥170

31231HUB, CLUTCH RELEASE BEARING

main31231-20021iKM10¥930197111-197708

main31231-23010iKM10¥980197105-197111

main31231-27010iKM1#¥980197708-197906

sub31231-27011

main31231-27011iKM11197906-197908

main31231-27012iKM11197908-197909

31231ABEARING, BALL(FOR CLUTCH RELEASE HUB)

main90363-38009iKM10¥1,540197105-197111

sub90363-38084¥2,040

main90363-40003iKM1#¥2,040197510-197908

sub90363-40010¥2,040

main90363-40005iKM11¥2,750197908-197909

sub90363-40013¥2,750

main90363-40045iKM10¥2,040197111-197308

sub90363-40078¥2,040

main90363-40078iKM10¥2,040197308-197510

sub90363-40003¥2,040

31232CLIP OR SPRING, RELEASE BEARING HUB

main31232-12010iKM10¥190197708-197712

main31232-30010iKM10¥270197105-197708

main31232-30010iKM1#¥270197712-197908

main31232-30020iKM11¥230197908-197909

31238HANGER, RELEASE FORK RETRACTING SPRING

main31238-27010iKM1#¥540197105-197909

31240FORK ASSY, CLUTCH RELEASE

main31240-27010iKM1#¥2,050197105-197909

31240ASPRING, TENSION(FOR CLUTCH RELEASE FORK RETURN)

main90506-18311iKM1#¥270197105-197909

31250DISC ASSY, CLUTCH

main31250-26031iKM10197105-197111

sub31250-29021

main31250-27020iKM10197111-197609

sub31250-27021

main31250-27021iKM1#197609-197803

sub31250-27022

main31250-27022iKM11197803-197902

sub31250-27023¥9,400

main31250-27023iKM11¥9,400197902-197909

sub31250-27024

9161141035

main91611-41035¥160

9161160816

main91611-60816¥230

9338116014

main93381-16014¥140

9411050800

main94110-50800¥80

9451200800

main94512-00800¥80

9538103020

main95381-03020¥90

22 parts on this diagram · 1 diagram in section
