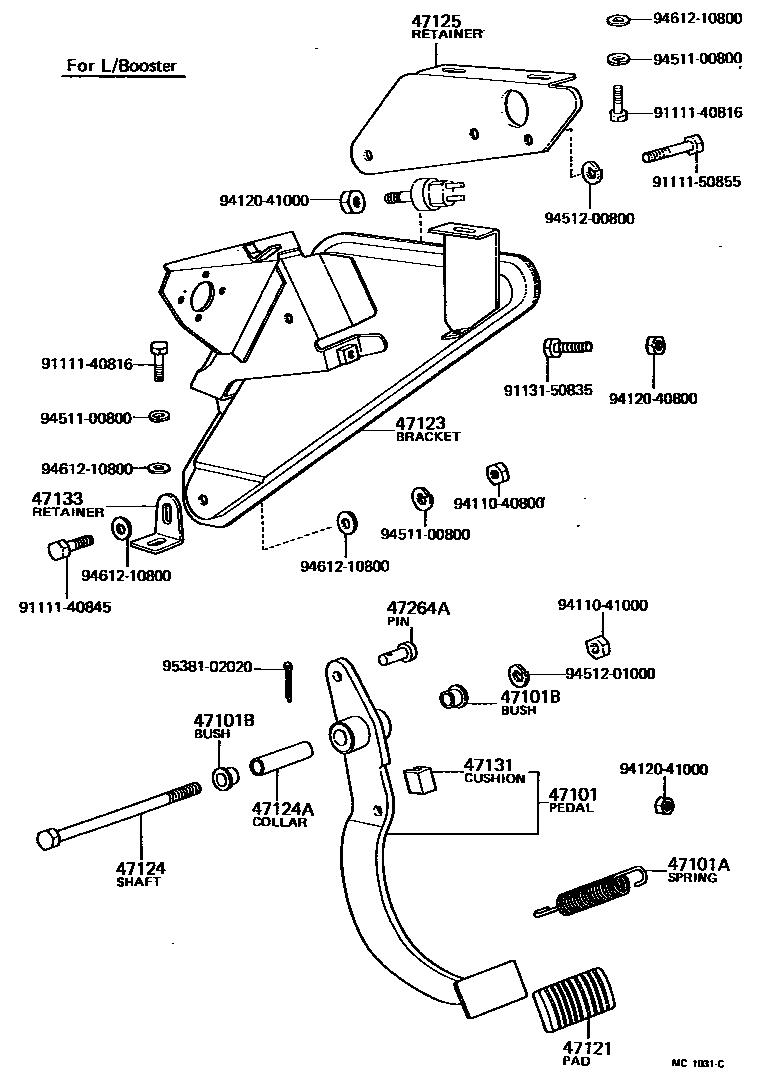

Toyota LITEACE — BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-27010iKM10197105-197309

L/BOOSTER

main47101-27020iKM10197309-197511

L/BOOSTER

main47101-27021iKM1#197511-197909

L/BOOSTER

main47101-27030iKM10197309-197511

W/BOOSTER

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-14319iKM1#¥230197105-197909

L/BOOSTER

main90508-35386iKM10¥350197309-197511

W/BOOSTER

47101BBUSH(FOR BRAKE PEDAL)

main90386-13007iKM1#¥160197105-197909

47121PAD, BRAKE PEDAL

main31321-12010iKM10¥280197105-197802

main31321-20020iKM11¥300197802-197909

47123BRACKET, BRAKE PEDAL

main55160-95700iKM10197105-197309

L/BOOSTER

main55160-95701iKM10197309-197511

W/BOOSTER

main55160-95702iKM10197309-197511

L/BOOSTER

main55160-95704iKM1#197511-197909

L/BOOSTER

47124SHAFT, BRAKE PEDAL

main90101-10279iKM1#¥310197309-197909

main90101-10373iKM10¥500197105-197309

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iKM1#¥370197105-197909

47125RETAINER, BRAKE PEDAL BRACKET

main55705-95700iKM10197105-197309

L/BOOSTER

main55705-95701iKM10197309-197511

L/BOOSTER

main55705-95702iKM1#197511-197909

L/BOOSTER

main55706-95700iKM10197309-197511

W/BOOSTER

47131CUSHION(FOR STOP LAMP SWITCH)

main47131-11010iKM1#¥270197105-197909

47133RETAINER, PEDAL BRACKET, LOWER

main55706-95700iKM1#197309-197909

L/BOOSTER

main55772-95700iKM10197105-197309

L/BOOSTER

47264APIN(FOR PUSH ROD)

main90240-08062iKM10¥200197111-197309

L=20,OD=8

main90240-08070iKM1#¥230197309-197909

L=23,OD=8

main90240-08088iKM10¥320197105-197111

L=21,OD=8

9111140816

main91111-40816¥130

9111140845

main91111-40845¥250

9111150855

main91111-50855¥180

9113150835

main91131-50835¥180

9411040800

main94110-40800¥120

9411041000

main94110-41000¥160

9412040800

main94120-40800¥90

9412041000

main94120-41000¥80

9451100800

main94511-00800¥100

9451200800

main94512-00800¥80

9451201000

main94512-01000¥90

9461210800

main94612-10800¥80

9538102020

main95381-02020¥60

24 parts on this diagram · 3 diagrams in section
