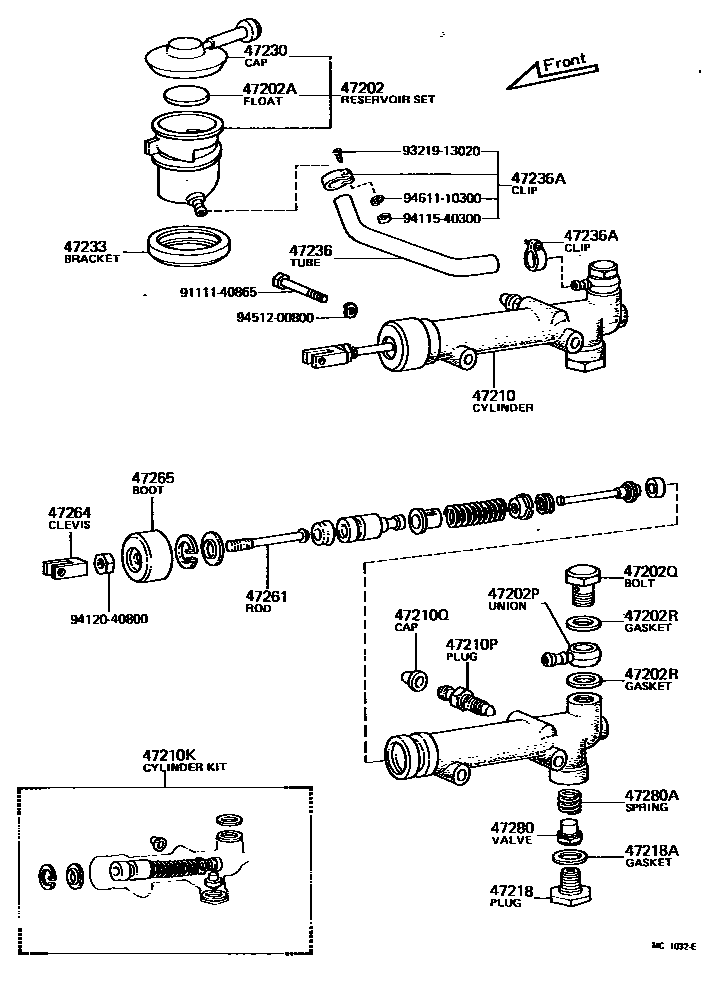

Toyota LITEACE — BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47202-27010iKM10197105-197309

main47202-27012iKM1#197309-197909

47202AFLOAT, MASTER CYLINDER RESERVOIR

main31426-30011iKM10¥220197105-197309

47202PUNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE)

main90405-10003iKM1#¥1,820197712-197909

main90405-10125iKM10¥1,940197105-197712

47202QBOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90401-16002iKM1#¥600197712-197909

main90401-16078iKM10¥670197105-197712

47202RGASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE)

main90430-16044iKM10¥160197105-197410

main90430-16242iKM1#¥190197410-197909

47210CYLINDER ASSY, MASTER, W/O BOOSTER

main47201-27011iKM10197309-197511

W/BOOSTER

main47210-11014iKM10¥13,100197105-197203

L/BOOSTER

sub47210-11015

main47210-27010iKM10¥14,900197203-197309

L/BOOSTER

sub47210-27020¥12,800

sub90240-08070¥230

main47210-27012iKM1#¥34,400197309-197909

L/BOOSTER

47210KCYLINDER KIT, BRAKE MASTER

main04471-11018iKM10¥3,950197105-197309

L/BOOSTER

sub04471-11019

main04493-27010iKM10197309-197511

L/BOOSTER

main04493-27011iKM1#197511-197909

L/BOOSTER

main04493-27020iKM10197309-197511

W/BOOSTER

47210PPLUG, BLEEDER(FOR BRAKE MASTER CYLINDER)

main47547-30020iKM10¥260197105-197309

47210QCAP, BLEEDER PLUG(FOR BRAKE MASTER CYLINDER)

main47548-20010iKM10¥180197105-197309

47218PLUG, MASTER CYLINDER FLUID OUTLET

main47218-10010iKM10¥730197501-197511

main47218-12020iKM10¥770197511-197512

main47218-27010iKM1#197512-197909

main47218-30010iKM10¥630197105-197501

sub47218-10010¥730

47218AGASKET(FOR FLUID OUTLET PLUG)

main90430-16242iKM1#¥190197511-197909

main90430-20018iKM10¥90197105-197511

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-27010iKM1#¥750197105-197909

47233BRACKET, RESERVOIR

main47226-27010iKM1#197105-197909

47236TUBE, RESERVOIR BRAKE

main47234-27011iKM1#197309-197909

main47236-27010iKM10197105-197309

47236ACLIP(FOR RESERVOIR TUBE)

main90460-16069iKM1#¥370197105-197909

47261ROD, MASTER CYLINDER PUSH

main47261-11010iKM10197105-197309

L/BOOSTER

main47261-27010iKM1#197309-197909

L=80.0,L/BOOSTER

47264CLEVIS, MASTER CYLINDER PUSH ROD

main47264-10050iKM10197306-197309

main47264-11010iKM10¥320197105-197111

main47264-11011iKM10¥750197111-197203

sub47264-11020¥540

main47264-12010iKM1#197309-197909

main47264-12020iKM10¥750197203-197306

sub47206-12021

47265BOOT, MASTER CYLINDER

main47265-11011iKM10197105-197309

L/BOOSTER

main47265-27010iKM1#¥320197309-197909

L/BOOSTER

47280VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK

main47280-10011iKM10197105-197203

sub47280-30010¥650

main47280-12020iKM10¥610197309-197511

main47280-20020iKM1#¥620197511-197909

sub47280-20030¥450

main47280-30010iKM10¥650197203-197309

47280ASPRING, COMPRESSION

main90501-10551iKM10197105-197309

main90501-10698iKM10¥170197309-197511

9111140865

main91111-40865¥130

9321913020

main93219-13020

9411540300

main94115-40300¥120

9412040800

main94120-40800¥90

9451200800

main94512-00800¥80

9461110300

main94611-10300¥110

26 parts on this diagram · 3 diagrams in section
