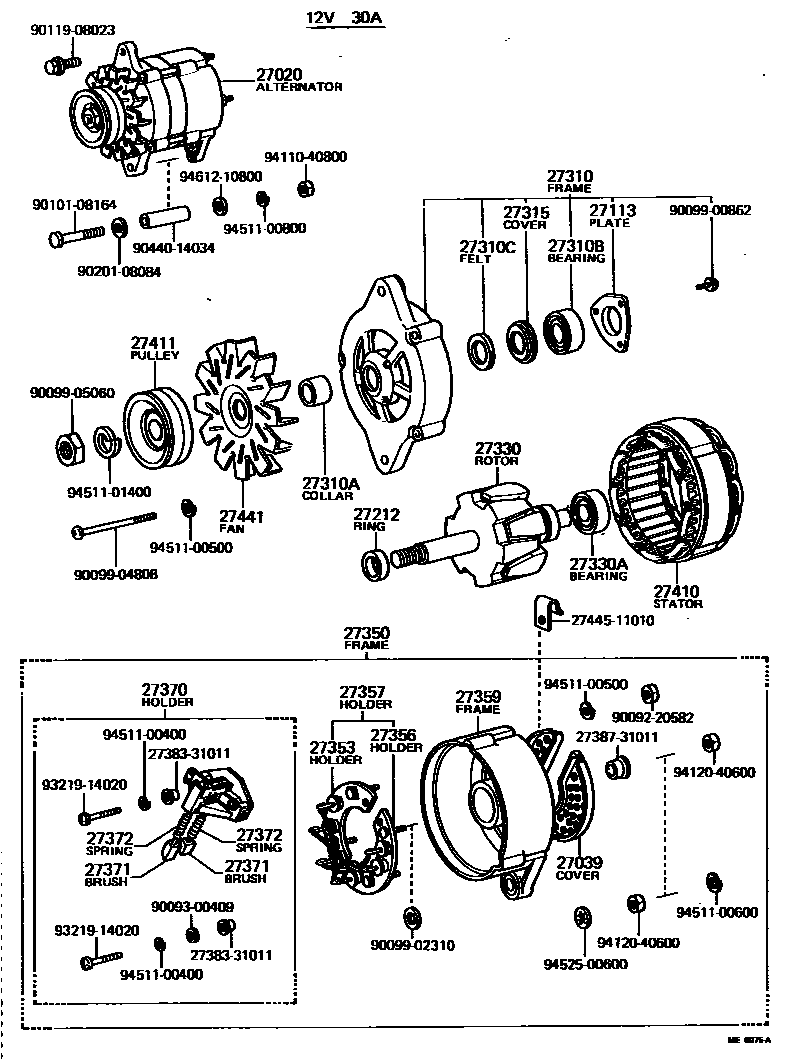

Toyota LITEACE — ALTERNATOR

0001 1 0002 1

27020ALTERNATOR ASSY

main27020-12011i3K..KM10¥33,800197404-197507

12V 30A

sub27020-12012¥39,000

main27020-12012i3K#,4KJ..KM1#¥39,000197507-197909

12V 30A

main27020-22012i3K..KM10¥33,800197105-197107

12V 30A

sub27020-24010¥33,800

main27020-24010i3K..KM10¥33,800197107-197201

12V 30A

sub27020-24020¥33,800

main27020-24020i3K..KM10¥33,800197201-197404

12V 30A

sub27020-24021

27039COVER, ALTERNATOR REAR END

main27039-11014i3K#,4KJ..KM1#197404-197909

sub27039-12030

main27039-22012i3K..KM10197105-197404

sub27039-22013

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10012i3K#,4KJ..KM1#197105-197909

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main90099-19068i3K#,4KJ..KM1#¥140197105-197909

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-22012i3K#,4KJ..KM1#197105-197909

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27412-56040i3K#,4KJ..KM1#197507-197909

main90099-19191i3K..KM10197105-197507

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i3K#,4KJ..KM1#¥600197105-197909

6202Z

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main90099-02009i3K#,4KJ..KM1#¥170197105-197909

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-39010i3K#,4KJ..KM1#197105-197909

27330ROTOR ASSY, ALTERNATOR

main27330-22012i3K#,4KJ..KM1#197105-197909

27330ABEARING(FOR ALTERNATOR ROTOR)

main97110-06201i3K#,4KJ..KM1#¥420197105-197909

6201Z

27350FRAME ASSY, RECTIFIER END

main27350-12011i3K..KM10197404-197507

sub27350-12030

main27350-12012i3K#,4KJ..KM1#197507-197909

sub27350-12030

main27350-22022i3K..KM10197105-197404

sub27350-31090

27353HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR

main27353-22012i3K..KM10197105-197404

27356HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR

main27356-22011i3K..KM10197105-197404

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11014i3K#,4KJ..KM1#197404-197909

main27357-22012i3K..KM10197105-197404

27359FRAME, ALTERNATOR RECTIFIER END

main27359-22011i3K..KM10197105-197201

main27359-22020i3K..KM10197201-197404

main27359-31051i3K..KM10197404-197507

main27359-31090i3K#,4KJ..KM1#197507-197909

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-22011i3K..KM10197105-197404

main27370-31090i3K#,4KJ..KM1#197507-197909

main27370-40061i3K..KM10197404-197507

27371BRUSH, ALTERNATOR

main27371-31011i3K#,4KJ..KM1#197105-197909

27372SPRING, ALTERNATOR BRUSH

main27372-31011i3K#,4KJ..KM1#197105-197909

27410STATOR ASSY, ALTERNATOR

main27410-11014i3K#,4KJ..KM1#197404-197909

main27410-22010i3K..KM10197105-197404

27411PULLEY, ALTERNATOR

main27411-12010i3K..KM10197404-197507

main27411-12012i3K#,4KJ..KM1#197507-197909

main27411-22011i3K..KM10197105-197107

main27411-24010i3K..KM10197107-197404

27441FAN, ALTERNATOR

main27441-22010i3K..KM10197105-197507

main27441-31090i3K#,4KJ..KM1#197507-197909

2738331011WASHER, ALTERNATER TERMINAL INSULATOR, NO.1

main27383-31011

2738731011INSULATOR, TERMINAL

main27387-31011

2744511010

main27445-11010

9009220582

main90092-20582

9009300409

main90093-00409

9009900862

main90099-00862

9009902310

main90099-02310

9009904808

main90099-04808

9009905060

main90099-05060

9010108164

main90101-08164¥230

9011908023

main90119-08023¥170

9020108084

main90201-08084¥180

9044014034

main90440-14034

9321914020

main93219-14020¥0

9411040800

main94110-40800¥120

9412040600

main94120-40600¥170

9451100400

main94511-00400¥200

9451100500

main94511-00500¥170

9451100600

main94511-00600¥120

9451100800

main94511-00800¥100

9451101400

main94511-01400¥140

9452500600

main94525-00600¥170

9461210800

main94612-10800¥80

45 parts on this diagram · 2 diagrams in section
