Toyota LITEACE — ACCELERATOR LINK

0001 1 0002 1

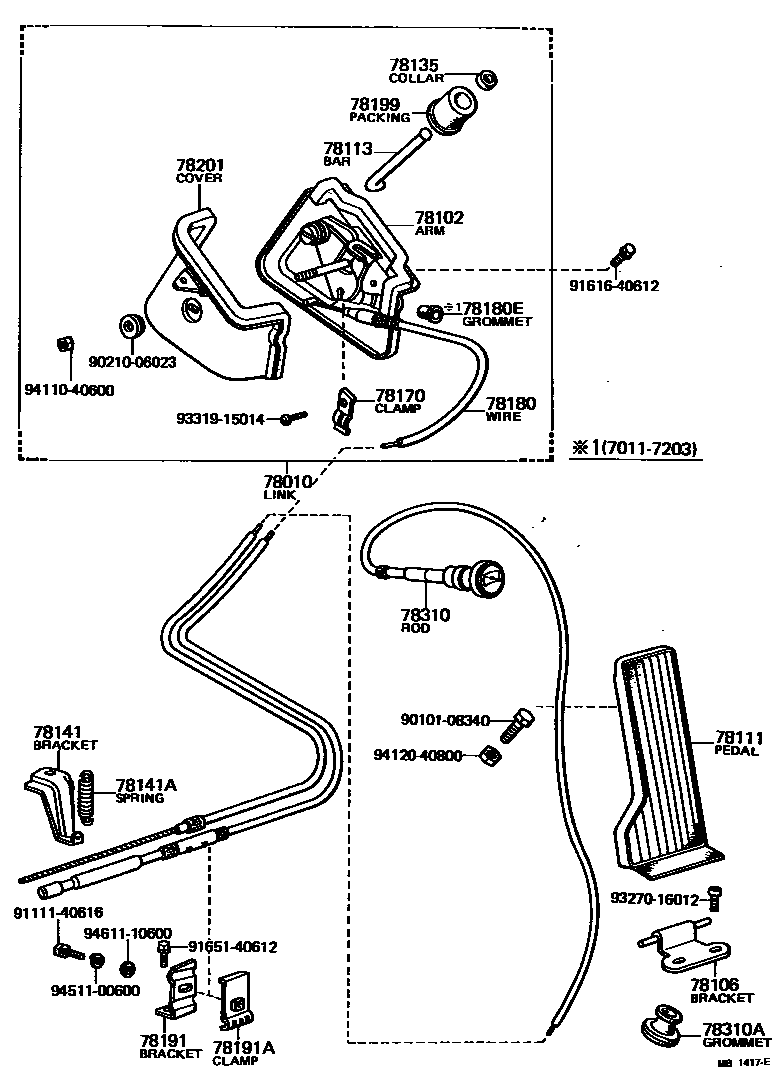

78010LINK, ACCELERATOR

main78170-95790iKM10197105-197305

78102ARM SUB-ASSY, ACCELERATOR

main78102-95700iKM10197105-197305

main78117-96200iKM1#197305-197909

78106BRACKET SUB-ASSY, ACCELERATOR PEDAL SUPPORT

main78105-95600iKM10197105-197305

78111PEDAL, ACCELERATOR

main78111-95600iKM10¥1,460197105-197305

main78111-95700iKM1#¥1,150197305-197909

78113BAR, ACCELERATOR ROD

main78131-95700iKM10197105-197305

78135COLLAR, ACCELERATOR LINK HOLE PACKING

main78135-95600iKM10197105-197305

78141BRACKET, ACCELERATOR WIRE RETURN SPRING

main78141-12011iKM10¥820197105-197412

78141ASPRING, TENSION(FOR ACCELERATOR WIRE RETURN SPRING)

main90506-12336iKM10¥240197105-197412

sub90507-12010¥240

78170CLAMP ASSY, ACCELERATOR FLEXIBLE WIRE

main78187-95601iKM10197105-197305

78180WIRE ASSY, ACCELERATOR

main78150-95700iKM10197105-197211

main78150-95701iKM10197211-197305

main78150-95702iKM10197305-197412

main78150-95704iKM10197412-197507

main78150-95705iKM1#197511-197909

main78150-95706iKM10197507-197511

78180EGROMMET (FOR ACCELERATOR WIRE)

main90480-10233iKM10197105-197203

main90480-26307iKM1#¥230197305-197803

78191BRACKET, ACCELERATOR WIRE SUPPORT

main78191-95700iKM10¥1,030197105-197412

sub78191-95702

main78191-95702iKM10197412-197511

main78191-95703iKM1#¥740197511-197909

78191ACLAMP (FOR ACCELERATOR WIRE SET)

main78180-95700iKM10197105-197511

main90461-10025iKM1#¥250197511-197909

78199PACKING, ACCELERATOR LINK HOLE

main78199-95600iKM10¥860197301-197305

sub78199-95601

main78199-95700iKM10¥860197105-197301

sub78199-95600¥860

78201COVER SUB-ASSY, ACCELERATOR LINK ARM SUPPORT

main78201-95600iKM10197105-197212

main78201-95700iKM10197212-197305

78310CABLE ASSY, CHOKE

main78301-95700iKM10197603-197802

main78310-95700iKM10197105-197511

main78310-95702iKM10197511-197603

sub78301-95700

sub78312-95700

sub78313-95700¥250

78310AGROMMET, CHOKE CABLE

main90480-15083iKM10¥180197404-197802

main90480-15138iKM10¥400197105-197404

9010108340

main90101-08340¥220

9021006023

main90210-06023¥240

9111140616

main91111-40616¥170

9161640612

main91616-40612¥120

9165140612

main91651-40612¥70

9327016012

main93270-16012¥170

9331915014

main93319-15014¥140

9411040600

main94110-40600¥80

9412040800

main94120-40800¥90

9451100600

main94511-00600¥120

9461110600

main94611-10600¥90
