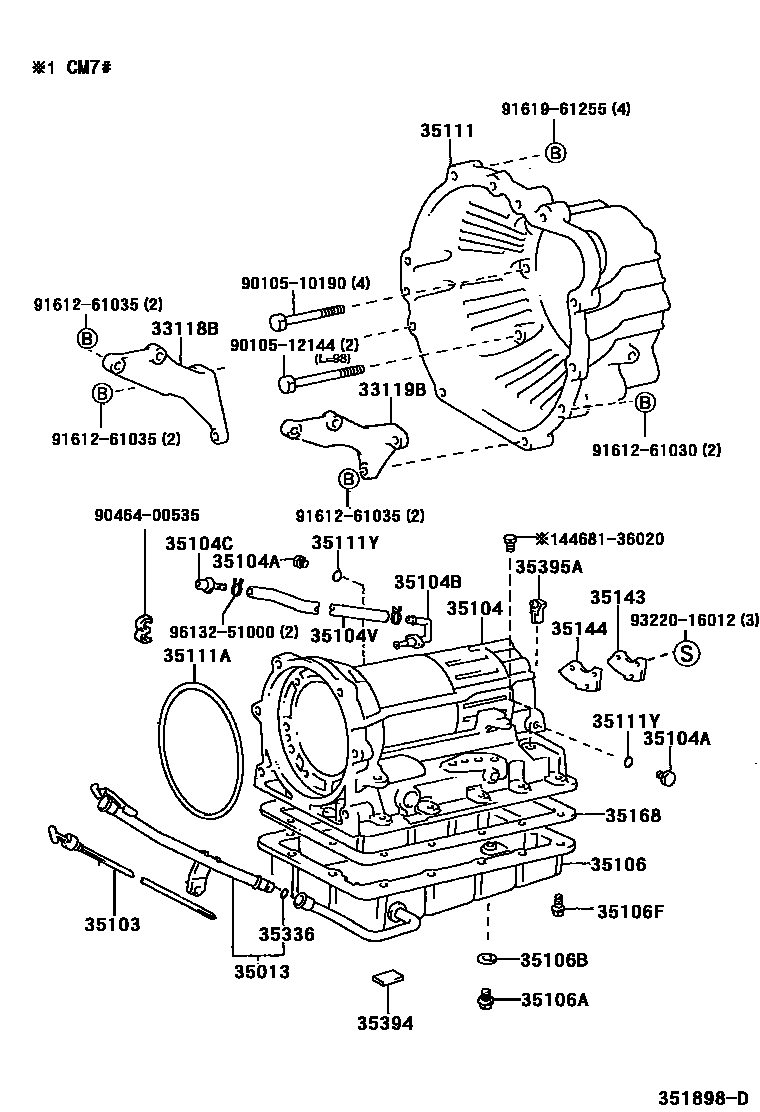

Toyota LITE/TOWNACE — TRANSMISSION CASE & OIL PAN (ATM)

0001 1A42D,A44DF 0002 1A42D 0003 1A44DF

33118BPLATE, STIFFENER, RH(ATM)

main33118-12080iKM7#..4HC¥2,380199906-200208

main33118-12080iKM7#,85..4HC¥2,380200208

main33118-14033iCM7#,85..4HC¥3,210199906-200208

main33118-14033iCM7#,85..4HC¥3,210200208-200408

33119BPLATE, STIFFENER, LH(ATM)

main33119-14050iCM7#,85..4HC¥3,270199906-200208

main33119-14050iCM7#,85..4HC¥3,270200208-200408

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-27061iCM7#,85..4HC¥2,110200208-200408

main35013-27061iCM7#,85..4HC¥2,110199906-200208

main35013-27090iKM7#,85..4HC¥3,240200208

main35013-27090iKM7#..4HC¥3,240199906-200208

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-27042iCM7#,85..4HC¥1,160200208-200408

main35103-27042iCM7#,85..4HC¥1,160199906-200208

main35103-27070iKM7#..4HC¥1,160199906-200208

main35103-27070iKM7#,85..4HC¥1,160200208

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-26021iCM7#,KM7#..4HC¥72,800199906-200208

main35104-26021iKM7#..4HC¥72,800200208

main35104-26021iCM7#..4HC¥72,800200208-200408

main35104-26030iCM85..4HC¥72,600200208-200408

main35104-26030iCM85..4HC¥72,600199906-200208

main35104-26030iKM85..4HC¥72,600200208

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iCM7#,85,KM7#..4HC¥120199906-200208

main90341-08001iCM7#,85,KM7#,85..4HC¥120200208

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03098iCM7#,85,KM7#..4HC¥740199906-200208

main90930-03098iCM7#,85..4HC¥740200208-200408

main90930-03098iKM7#,85..4HC¥740200208

35104CPLUG, BREATHER, NO.2 (ATM)

main90930-03099iCM7#,85,KM7#..4HC¥610199906-200208

main90930-03099iCM7#,85..4HC¥610200208-200408

main90930-03099iKM7#,85..4HC¥610200208

35104VHOSE (FOR BREATHER PLUG)

main90445-11096iCM7#,85,KM7#..4HC¥580199906-200208

main90445-11096iCM7#,85..4HC¥580200208-200408

main90445-11096iKM7#,85..4HC¥580200208

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-28030iCM7#,85,KM7#..4HC¥6,300199906-200208

sub35106-30051¥6,300

main35106-30051iCM7#,85,KM7#,85..4HC¥6,300200208

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10006iCM7#,85,KM7#..4HC¥210199906-200208

sub90341-10011¥100

main90341-10011iCM7#,85,KM7#,85..4HC¥100200208

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iCM7#,85..4HC¥190200208-200408

main35178-30010iKM7#,85..4HC¥190200208

main35178-30010iCM7#,85,KM7#..4HC¥190199906-200208

35106FBOLT (FOR AUTOMATIC TRANSMISSION OIL PAN)

main90119-06117iCM7#,85,KM7#..4HC¥220199906-200208

sub90119-06173¥80

main90119-06117iCM7#,85..4HC¥220200208-200408

sub90119-06173¥80

main90119-06117iKM7#,85..4HC¥220200208

sub90119-06173¥80

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-28031iKM7#,85..4HC¥49,200200208

main35111-28031iKM7#..4HC¥49,200199906-200208

main35111-28080iCM7#,85..4HC¥49,200200208-200408

main35111-28080iCM7#,85..4HC¥49,200199906-200208

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99054iCM7#,85,KM7#..4HC¥800199906-200208

main90301-99054iCM7#,85..4HC¥800200208-200408

main90301-99054iKM7#,85..4HC¥800200208

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196iCM7#,85,KM7#..4HC¥170199906-200208

main90301-06196iCM7#,85..4HC¥170200208-200408

main90301-06196iKM7#,85..4HC¥170200208

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iCM7#,85..4HC¥520200208-200408

main35143-22010iCM7#,85,KM7#..4HC¥520199906-200208

main35143-22010iKM7#,85..4HC¥520200208

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-28010iCM7#,85,KM7#..4HC¥220199906-200208

main35144-28010iCM7#,85..4HC¥220200208-200408

main35144-28010iKM7#,85..4HC¥220200208

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iCM7#,85,KM7#..4HC¥520199906-200208

main35168-22011iCM7#,85..4HC¥520200208-200408

main35168-22011iKM7#,85..4HC¥520200208

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iCM7#,85,KM7#..4HC¥140199906-200208

main90301-09173iCM7#,85..4HC¥140200208-200408

main90301-09173iKM7#,85..4HC¥140200208

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011iCM7#,85,KM7#..4HC¥360199906-200208

main35394-30011iCM7#,85..4HC¥360200208-200408

main35394-30011iKM7#,85..4HC¥360200208

35395ASTRAINER, GOVERNOR OIL

main35395-40010iCM7#,85,KM7#..4HC¥890199906-200208

main35395-40010iCM7#,85..4HC¥890200208-200408

main35395-40010iKM7#,85..4HC¥890200208

4468136020PLUG, BOOSTER

main44681-36020¥220

9010510190

main90105-10190¥270

9010512144

main90105-12144¥270

9046400535

main90464-00535¥120

9161261030

main91612-61030¥110

9161261035

main91612-61035¥100

9161961255

main91619-61255¥120

9322016012

main93220-16012¥180

9613251000

main96132-51000¥160

31 parts on this diagram · 3 diagrams in section
